Resistance/Operation Inspection

1. REMOVE V-BANK COVER
2. REMOVE INTAKE AIR CONNECTOR PIPE




3. INSPECT INJECTOR RESISTANCE
a. Disconnect the 8 injector connectors.

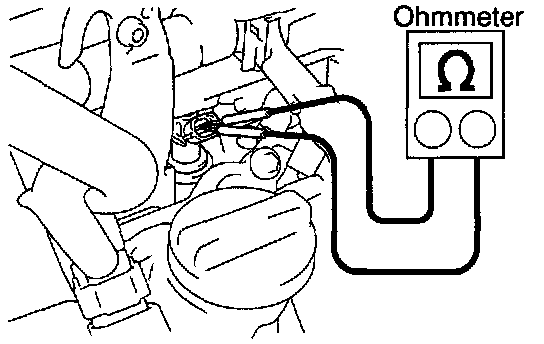

b. Using an ohmmeter, measure the resistance between the terminals.
Resistance: 13.4-14.2 ohms at 20°C (68°F)
If the resistance is not as specified, replace the injector.

c. Reconnect the 8 injector connectors.

4. REINSTALL INTAKE AIR CONNECTOR PIPE
5. REINSTALL V-BANK COVER
