Home >> Lexus >> 1999 >> GS 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> System Diagram

System Diagram

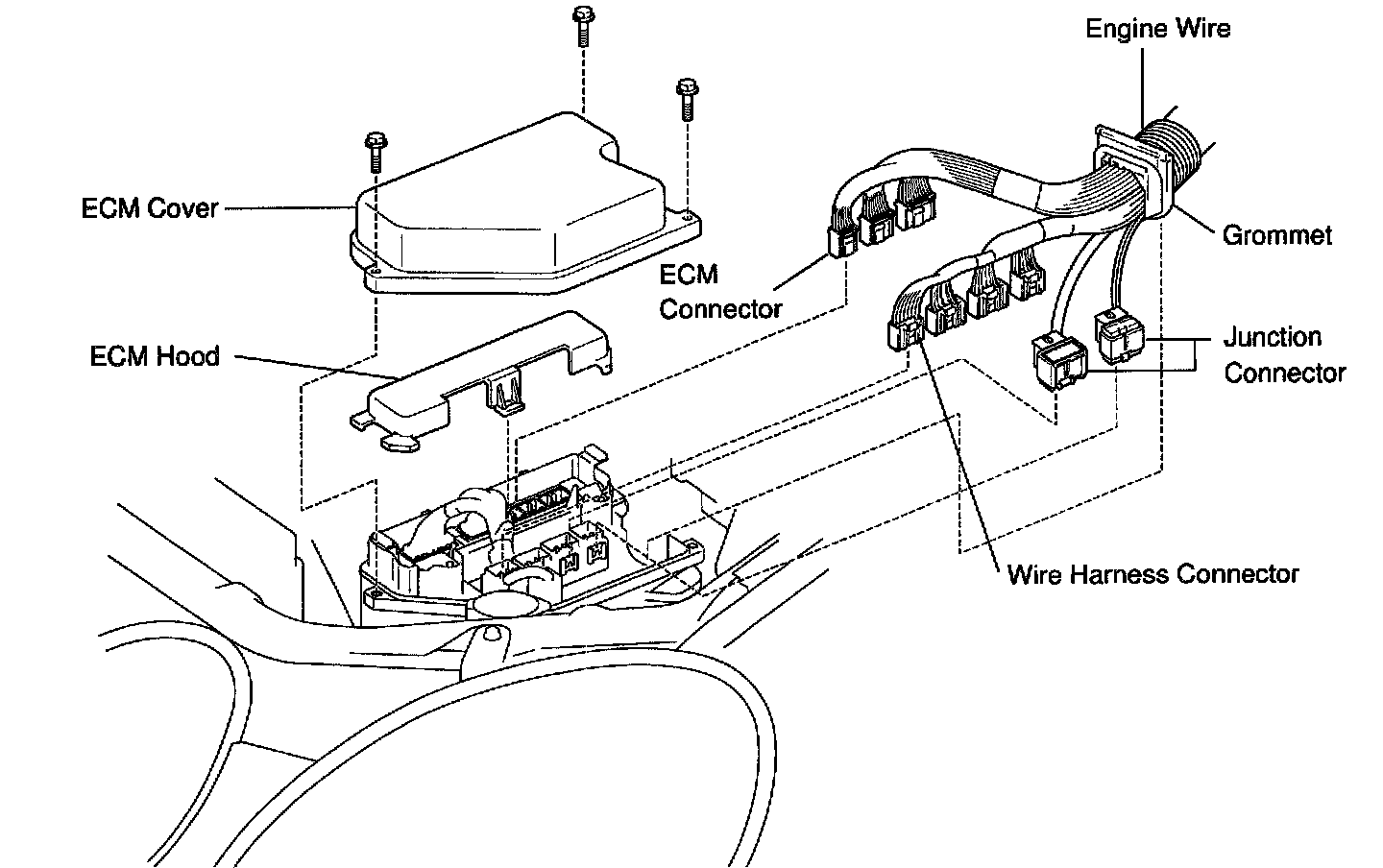

ECM Cover And Connectors:

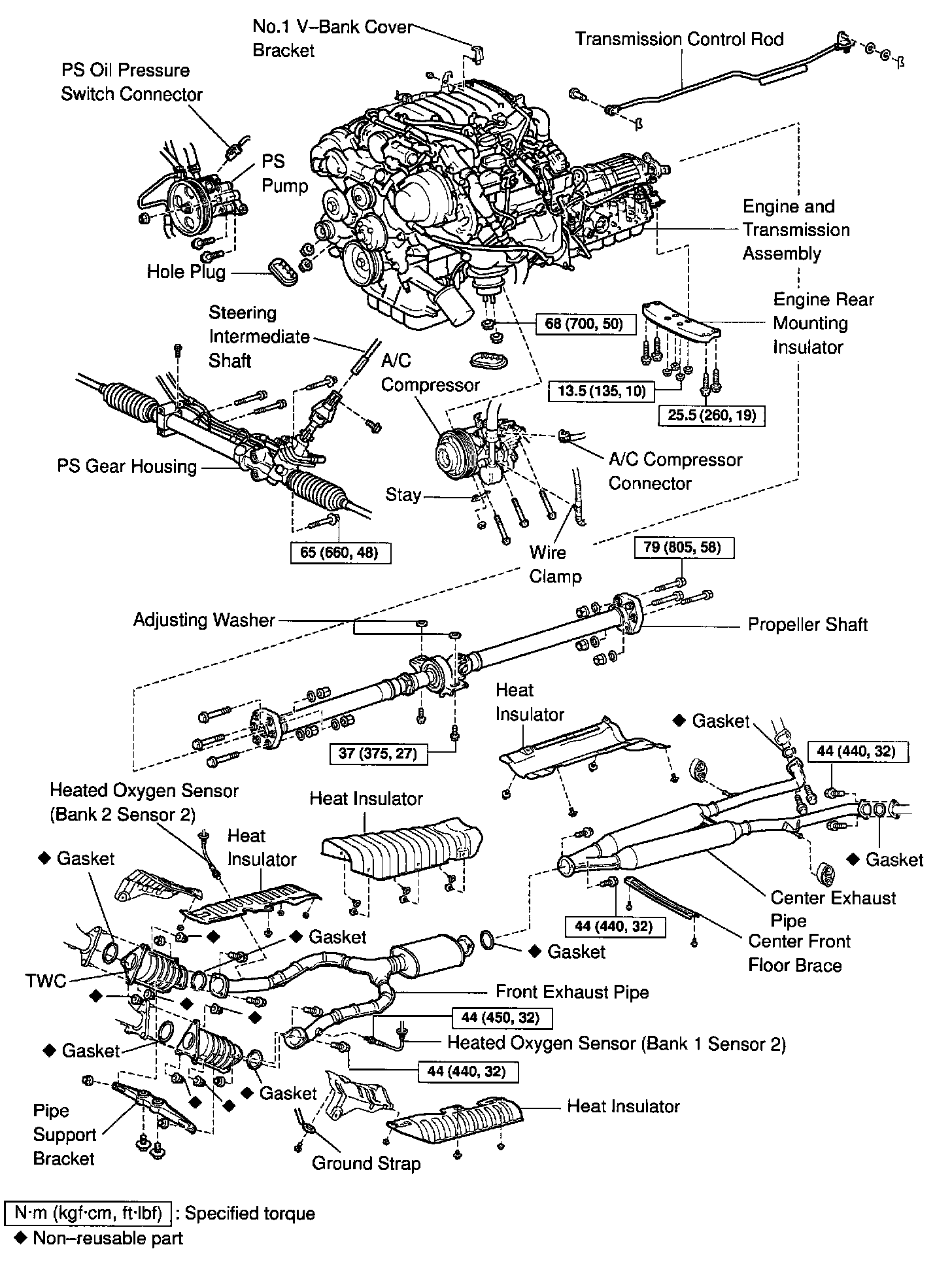

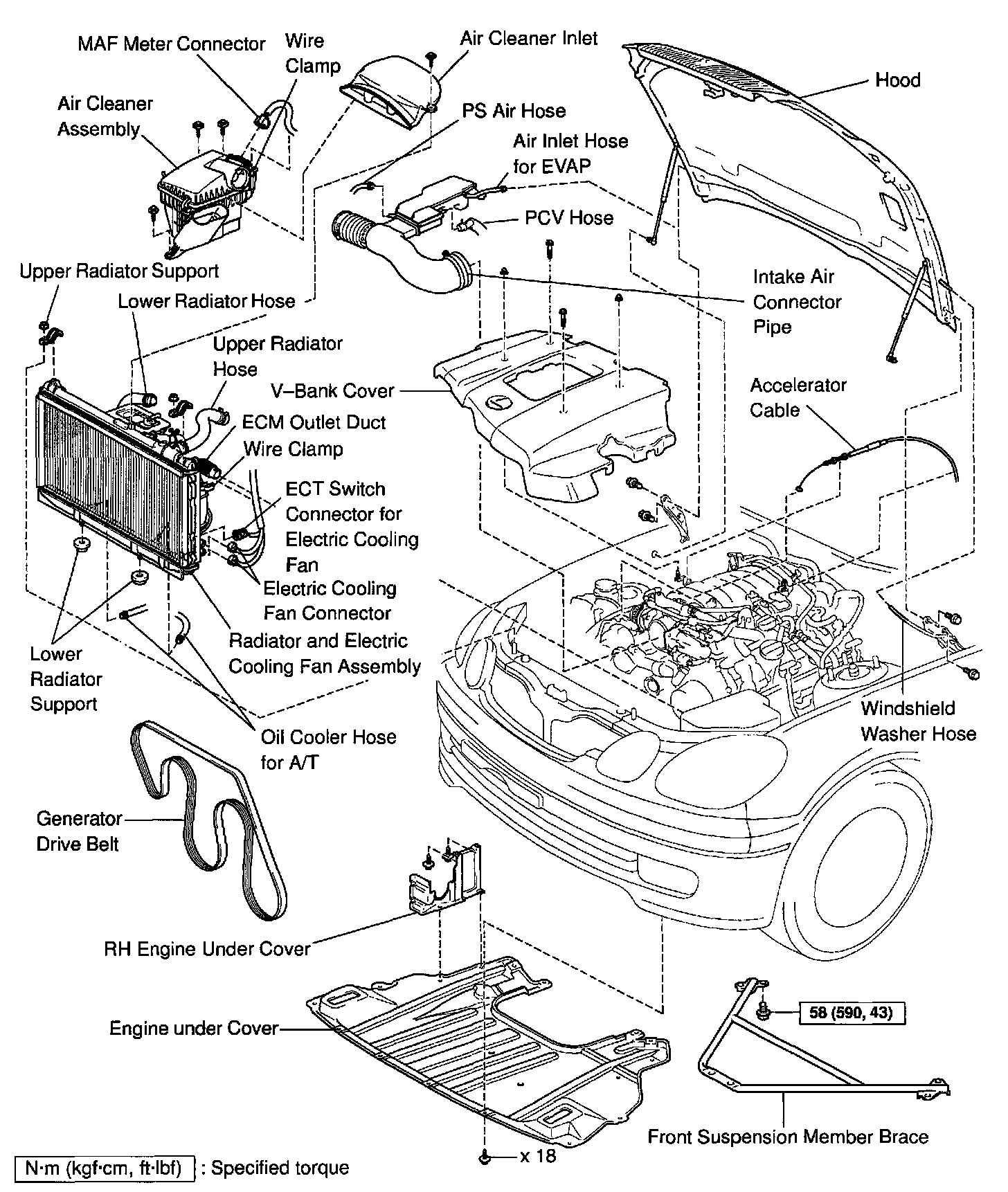

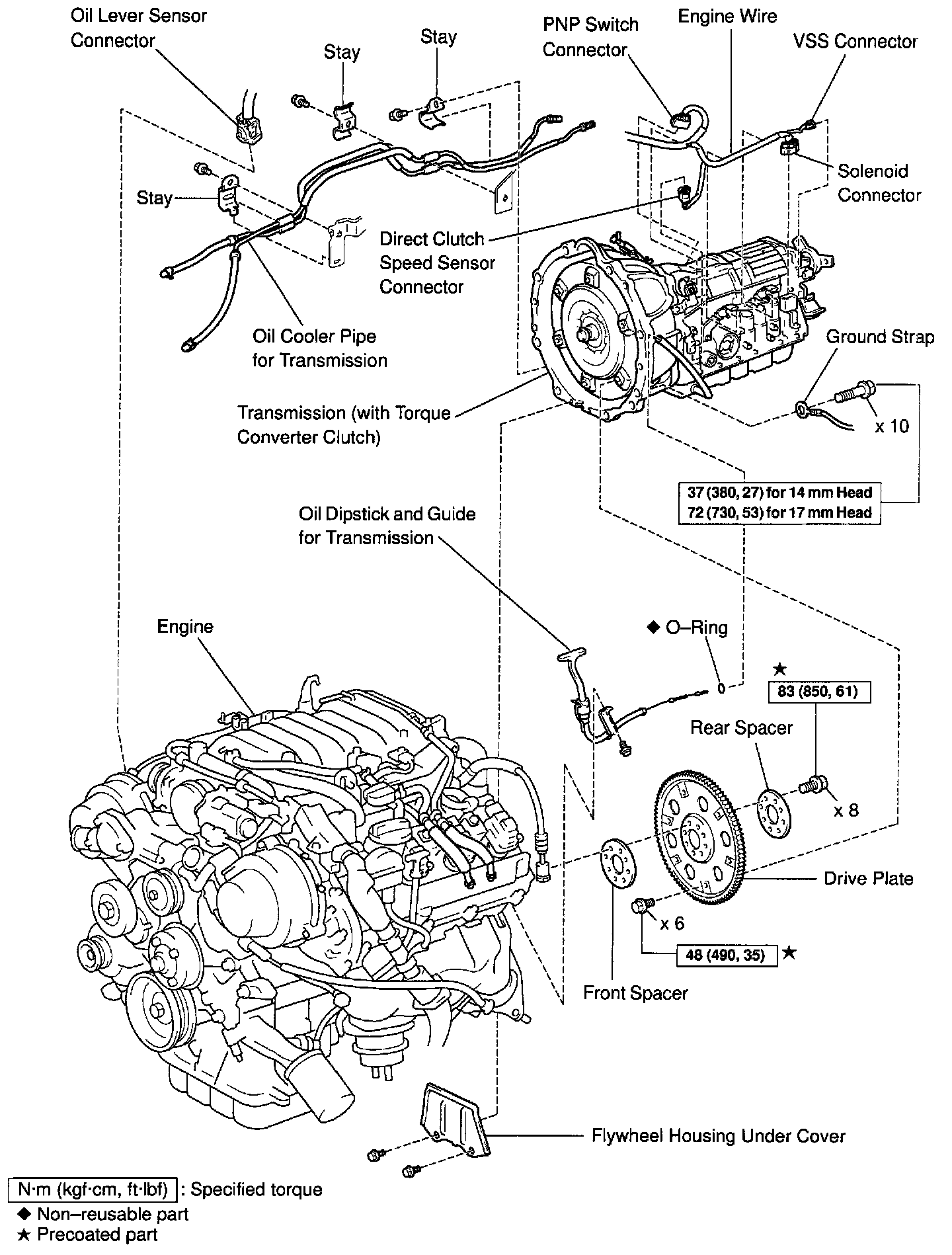

ENGINE UNIT COMPONENTS
