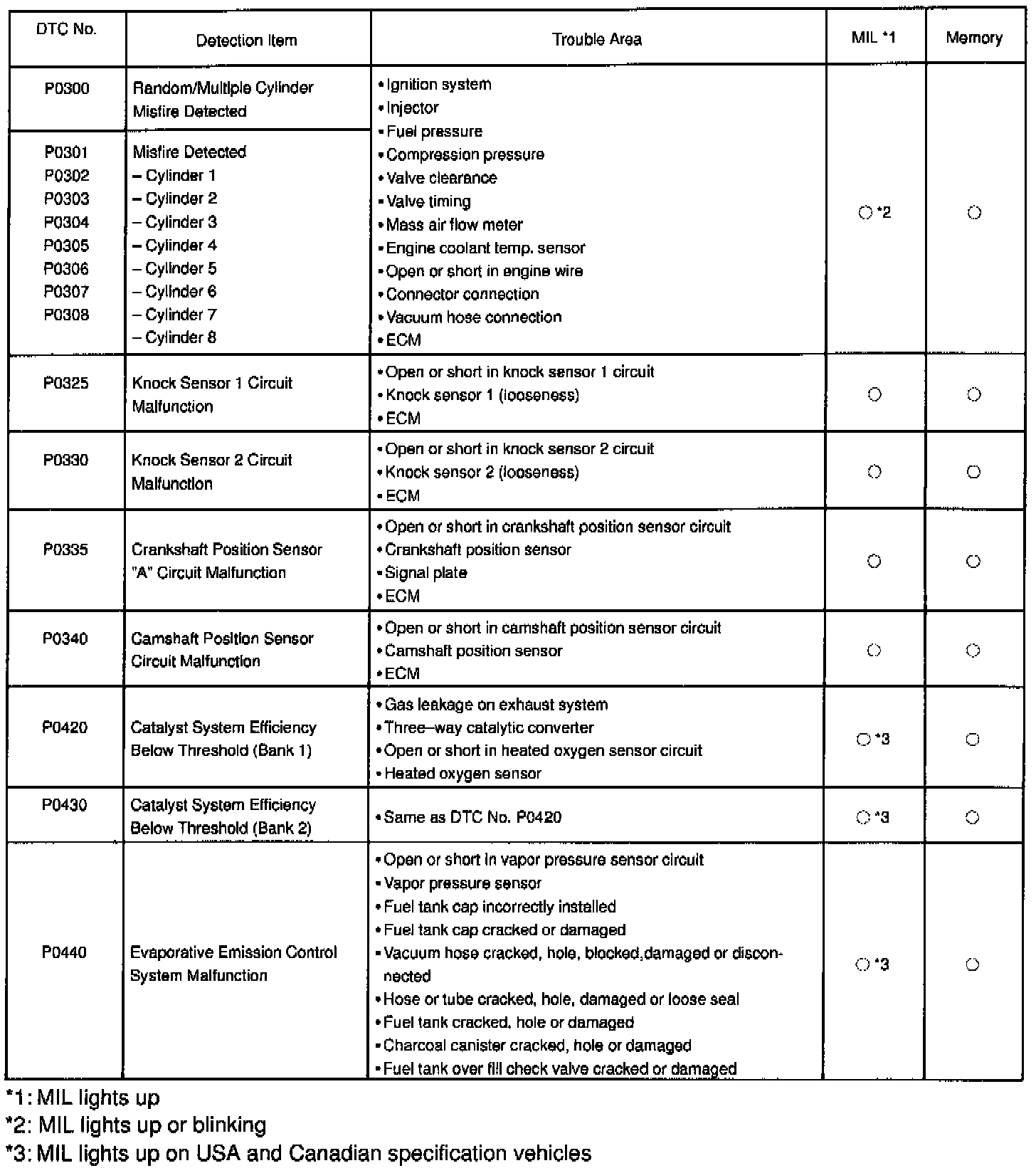

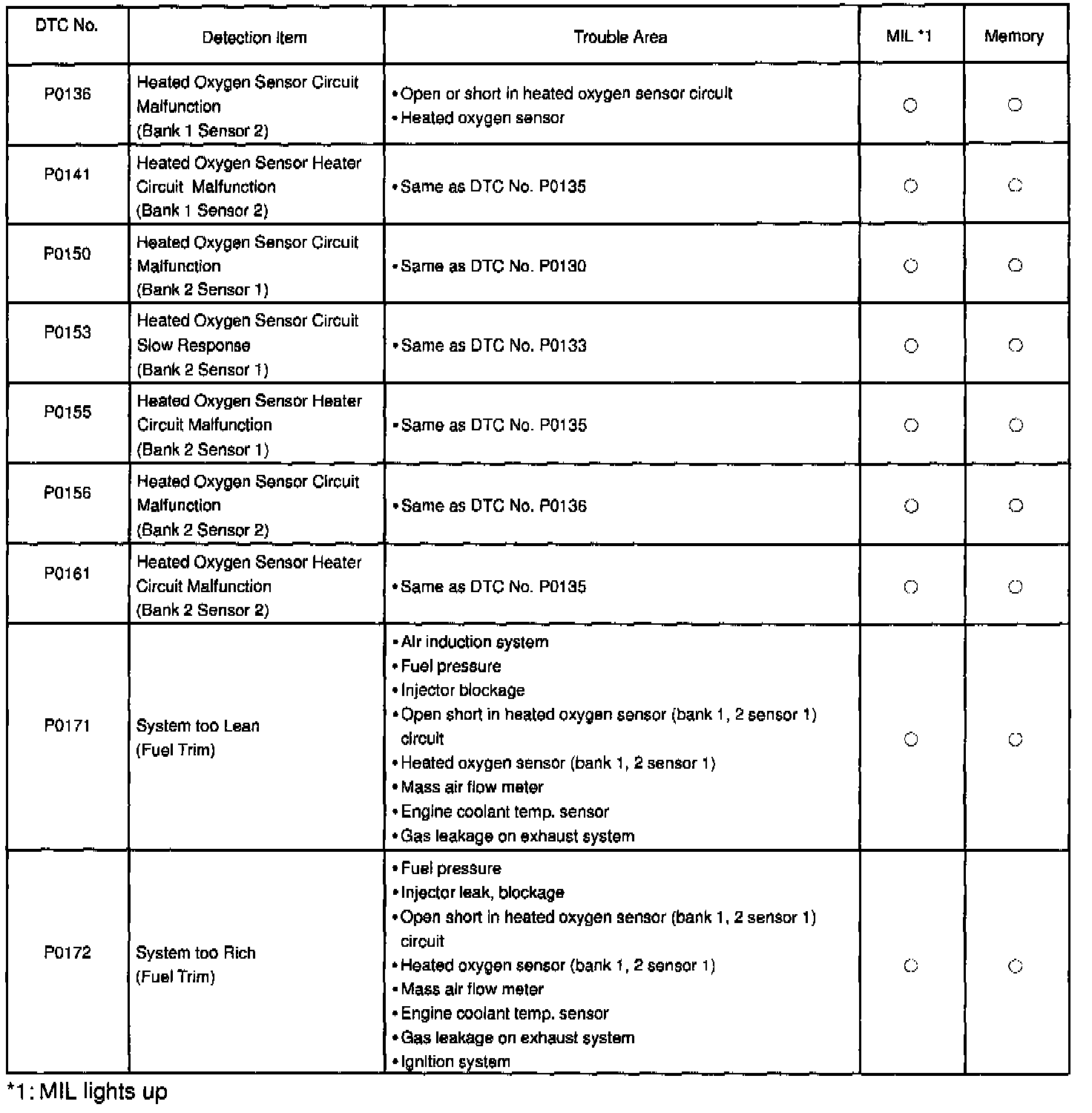

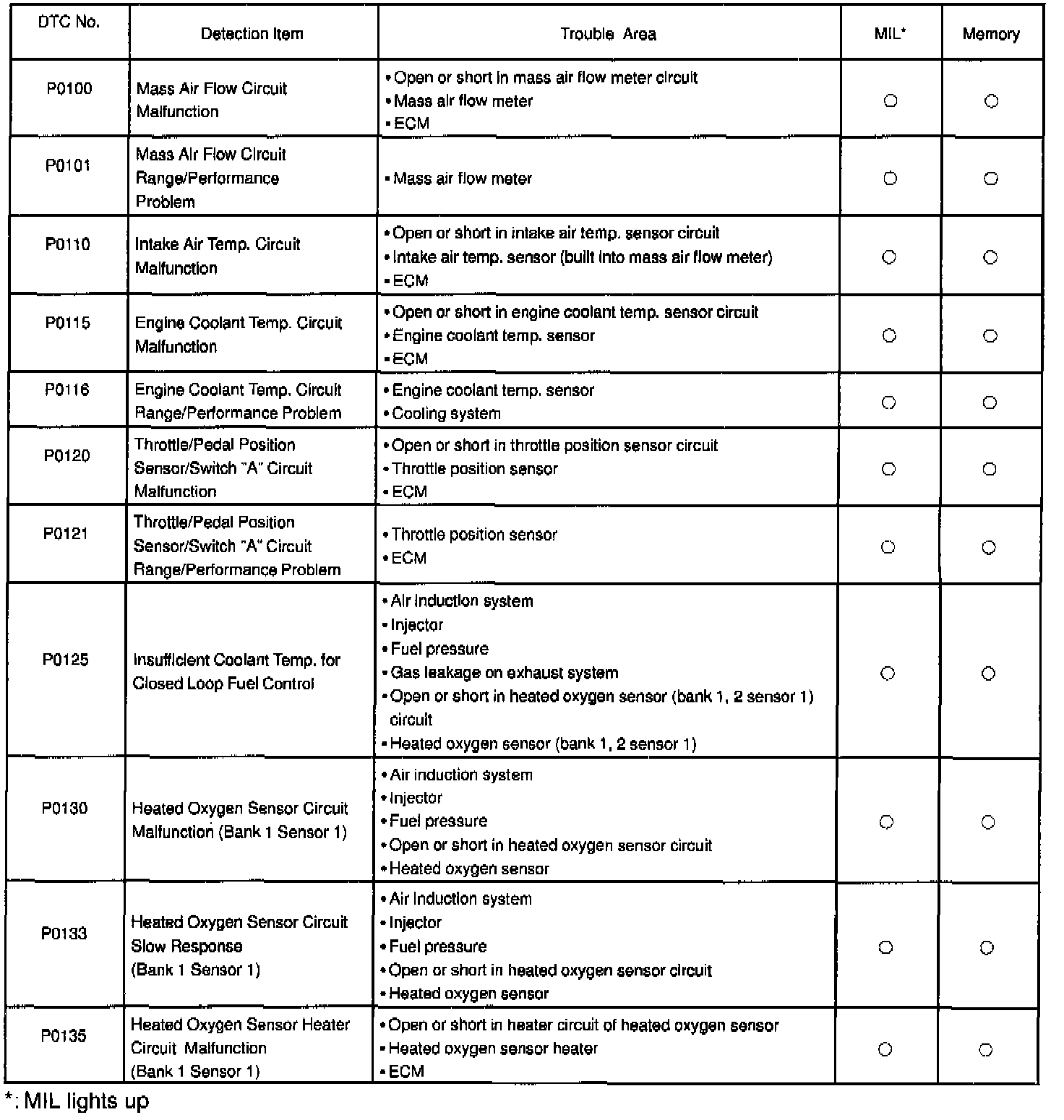

SAE Controlled Trouble Codes

Part 1 Of 4:

Part 2 Of 4:

Part 3 Of 4:

Part 4 Of 4:

HINT: Parameters listed in the chart may not be exactly the same as your reading due to the type of instrument or other factors.

If a malfunction code is displayed during the DTC check in check mode, check the circuit for that code listed in the table.
