Home >> Lexus >> 1999 >> GS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Windows and Glass >> Windows >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnosis by Symptom >> Problem Symptom Table

Problem Symptom Table

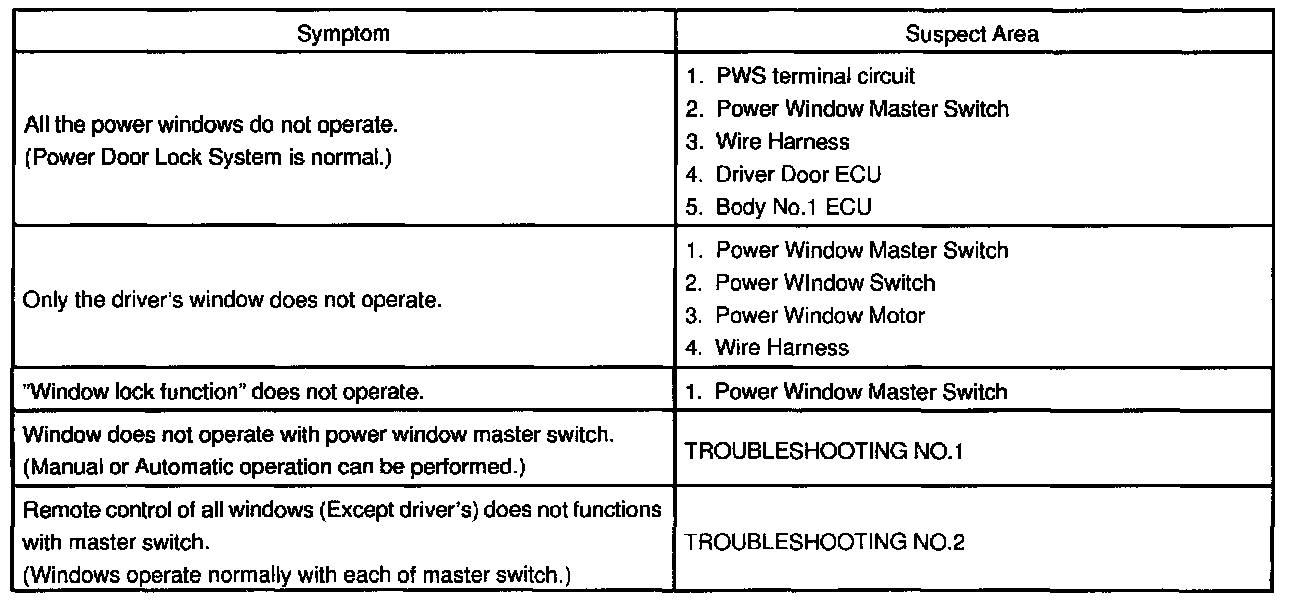

PART 1 OF 2

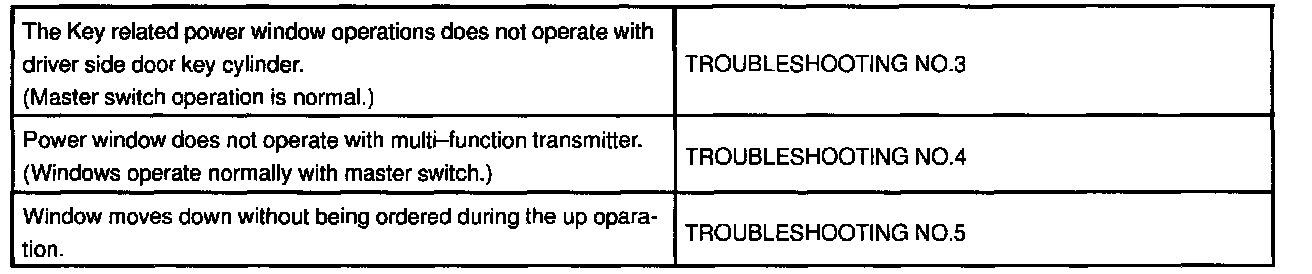

PART 2 OF 2

This system uses the multiplex communication system so check diagnosis system of the multiplex communication system before you proceed with troubleshooting.
