Power Window Motor: Testing and Inspection

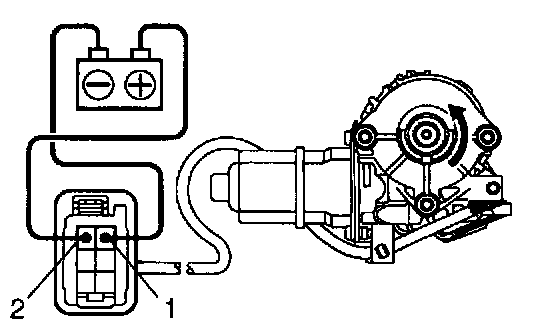

Driver's door:
INSPECT POWER WINDOW MOTOR OPERATION

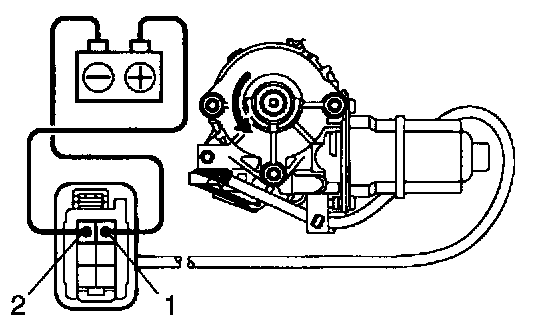

a. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the motor turns clockwise.




b. Reverse the polarity, check that the motor turns counterclockwise.
If operation is not as specified, replace the motor.

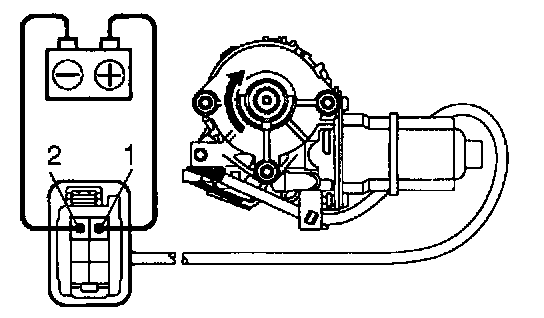

Front passenger's door:
INSPECT POWER WINDOW MOTOR OPERATION

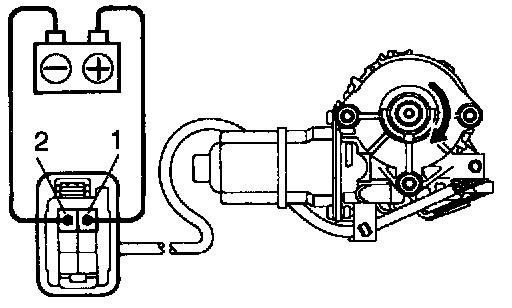

a. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the motor turns clockwise.




b. Reverse the polarity, check that the motor turns counterclockwise.
If operation is not as specified, replace the motor.

Rear left side door:
INSPECT POWER WINDOW MOTOR OPERATION

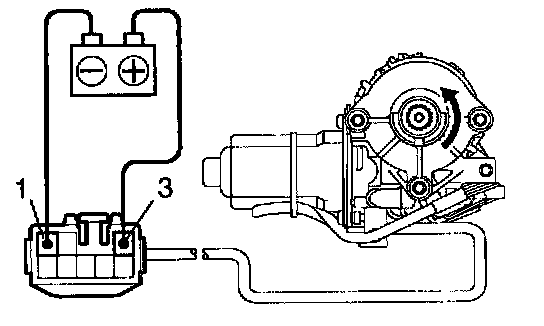

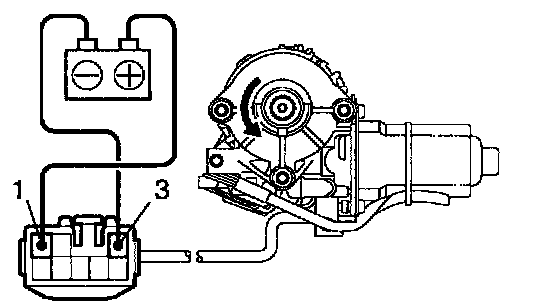

a. Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 1, and check that the motor turns clockwise.




b. Reverse the polarity, check that the motor turns counterclockwise.
If operation is not as specified, replace the motor.

Rear right side door:
INSPECT POWER WINDOW MOTOR OPERATION

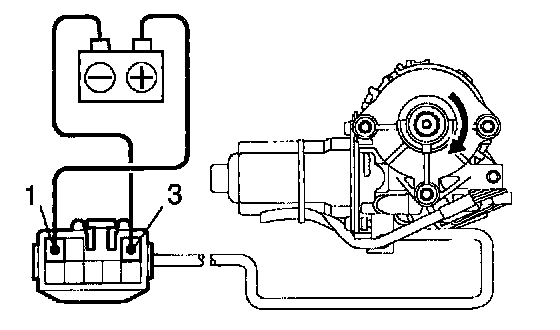

a. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 3, and check that the motor turns clockwise.




b. Reverse the polarity, check that the motor turns counterclockwise.
If operation is not as specified, replace the motor.

Front door:
INSPECT POWER WINDOW MOTOR PTC OPERATION




a. Disconnect the connector from the master switch.

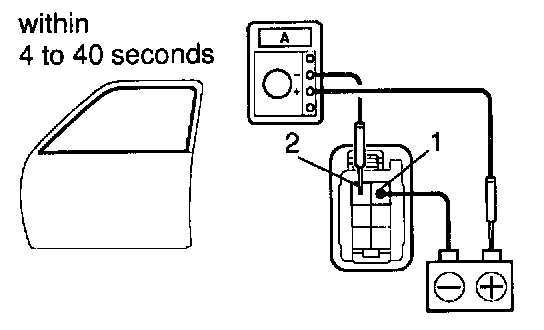

b. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1 on the wire harness side connector and raise the window to full closed position.
c. Continue to apply voltage, check that there is a PTC operation noise within approximately 4 to 90 seconds.

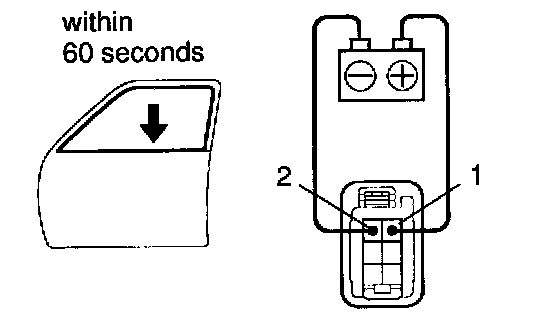

d. Reverse the polarity, check that the window begins to descend within approximately 60 seconds.
If operation is not as specified, replace the motor.

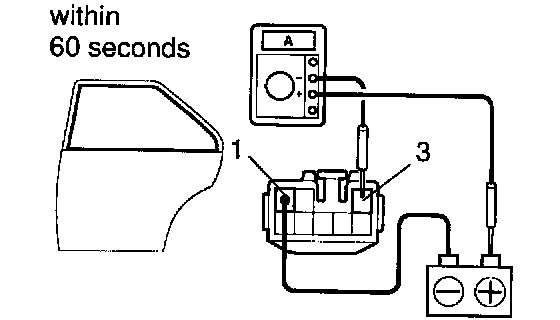

Rear door:
INSPECT POWER WINDOW MOTOR PTC OPERATION




a. Disconnect the connector from the rear door ECU.

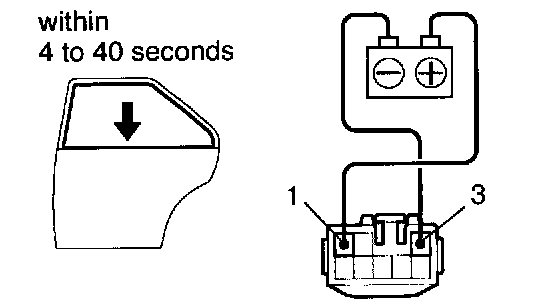

b. Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 1 on the wire harness side connector, and raise the window to full closed position.
c. Continue to apply voltage, check that there is a PTC operation noise within approximately 4 to 90 seconds.




d. Reverse the polarity, check that the window begins to descend within approximately 60 seconds.
If operation is not as specified, replace the motor.
