Drive/Propeller Shaft: Diagrams

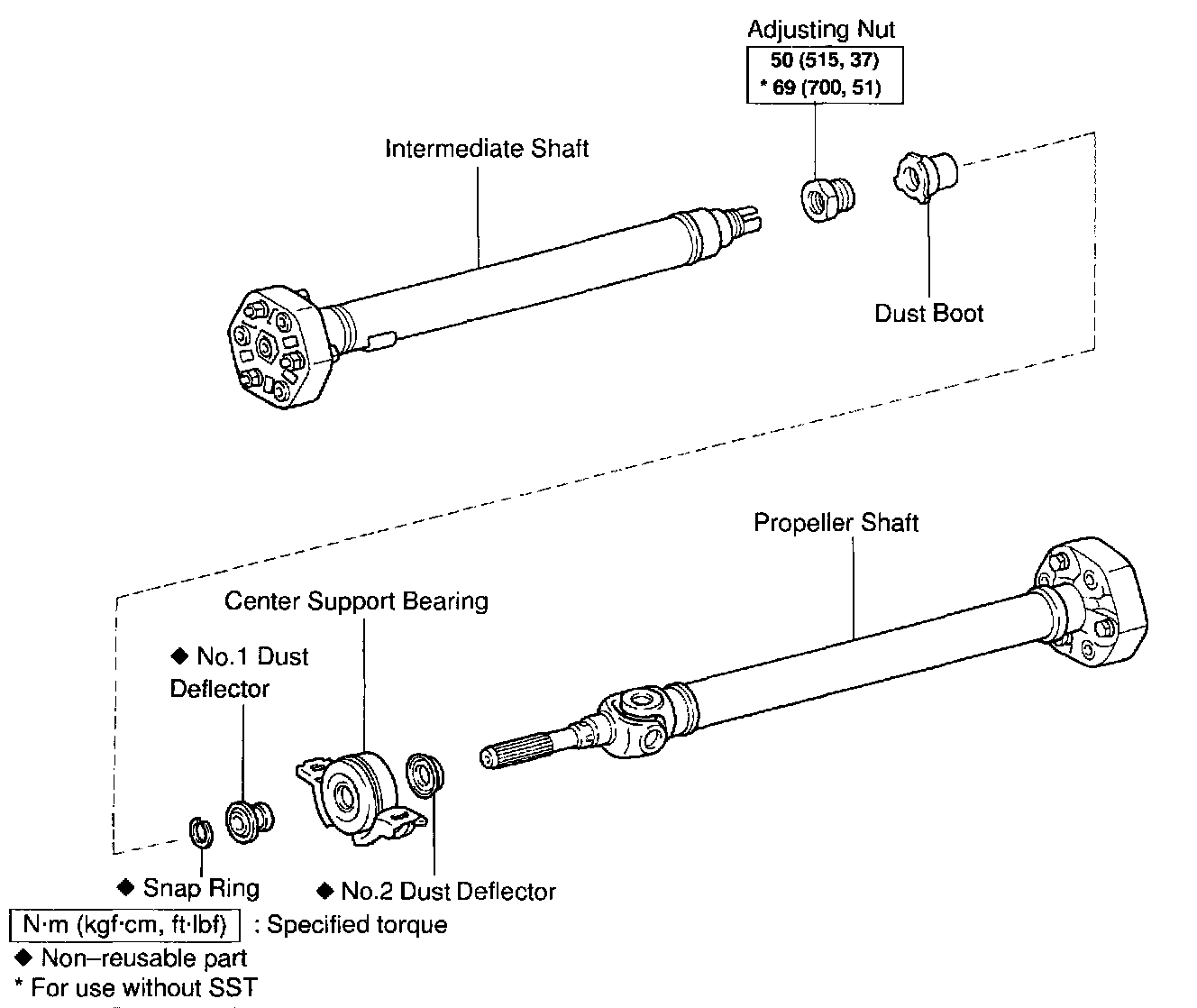

Part 1 Of 2:

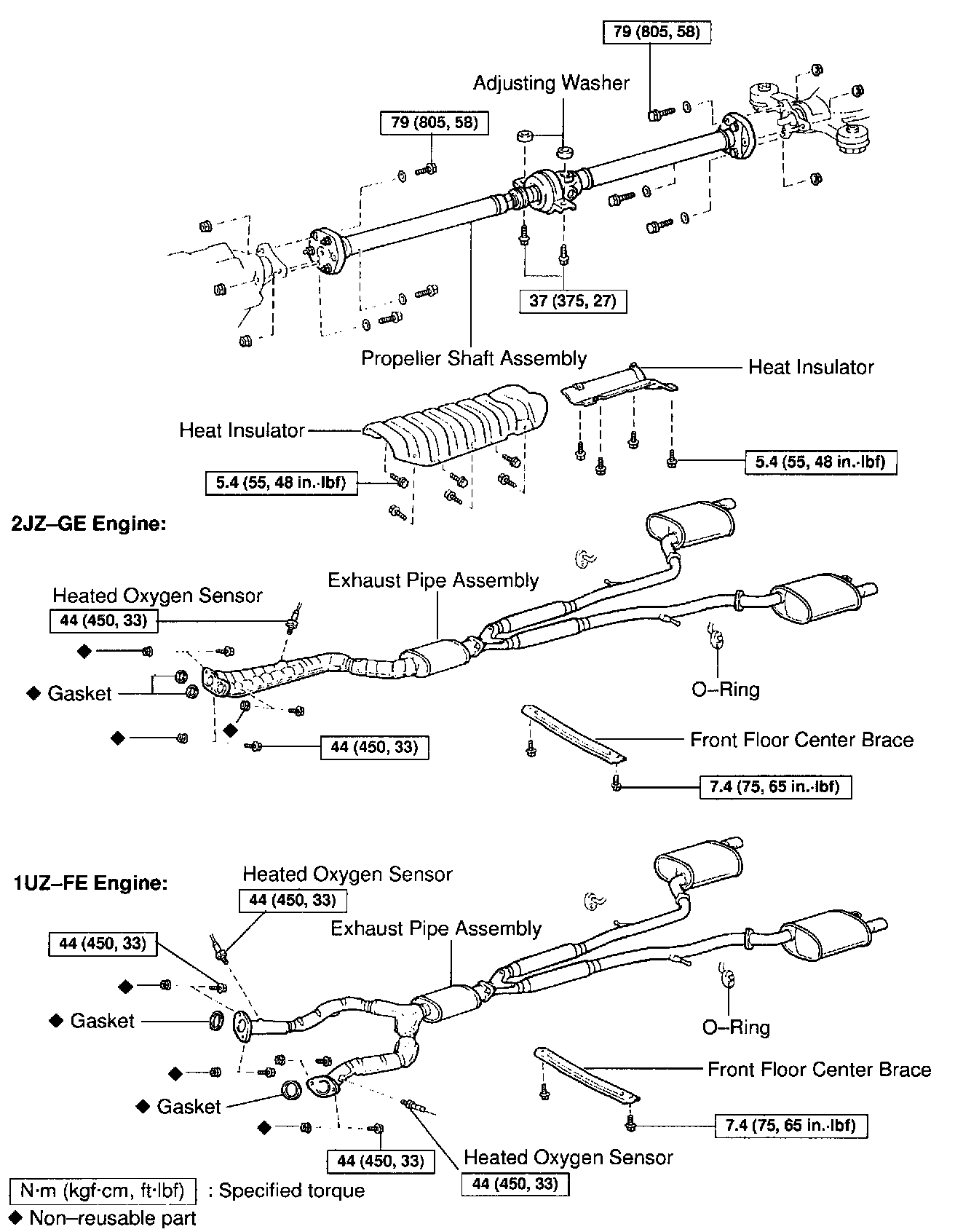

Part 2 Of 2:





PROPELLER SHAFT ASSEMBLY REPLACEMENT W/ RELATED COMPONENTS
