Seals and Gaskets: Service and Repair

ON-VEHICLE REPAIR
1. DRAIN ATF
2. REMOVE FRONT EXHAUST PIPE AND HEAT INSULATOR
3. REMOVE PROPELLER SHAFT. Refer to Drive/Propeller Shaft; Service and Repair.
4. REMOVE TRANSMISSION OUTPUT FLANGE

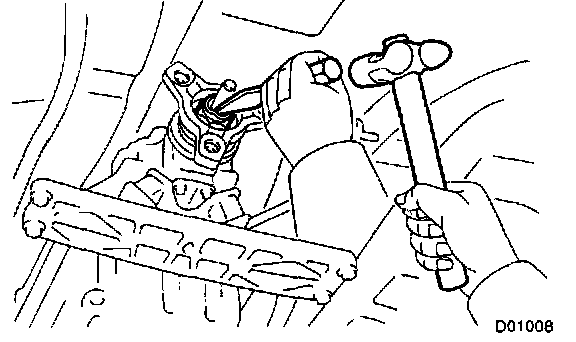

a. Using a chisel and hammer, loosen the staked part of the nut.

HINT: Shift the shift lever to the P position.

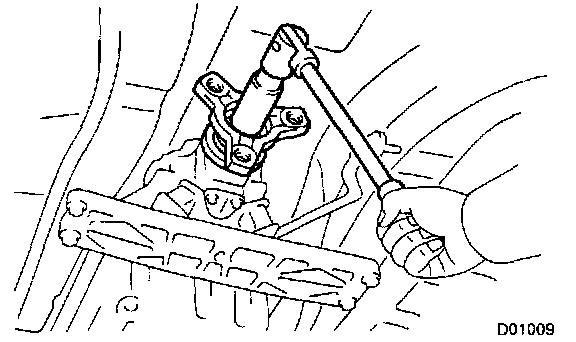

b. Using a 30 mm deeper socket wrench, remove the nut.
c. Tap the output flange with a plastic hammer to remove it.

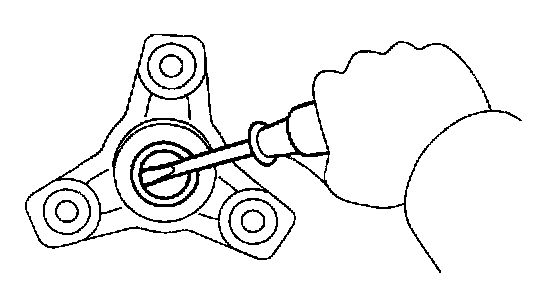

d. Using a screwdriver, remove the oil seal from the output flange.





5. REMOVE EXTENSION HOUSING REAR OIL SEAL
Using SST, remove the oil seal.
SST 0930-00010





6. INSTALL EXTENSION HOUSING REAR OIL SEAL
a. Coat the lip of a new oil seal with MP grease.

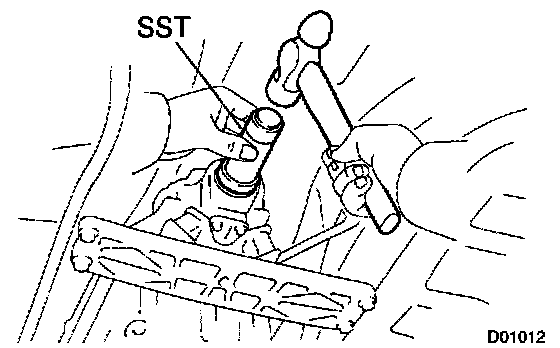

b. Using SST and a hammer, drive in the oil seal with the lip facing downward.
SST 09309-37010
Oil seal depth from flat end: 2.0 mm (0.079 inch)
7. INSTALL TRANSMISSION OUTPUT FLANGE

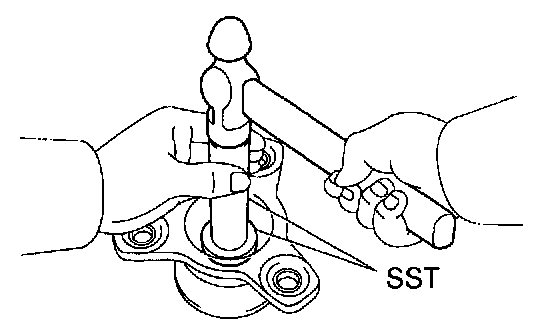

a. Using SST and a hammer, drive in a new oil seal.
SST 09950-60010 (09951-00350), 09950-70010 (09951-07100)





b. Install the output flange.

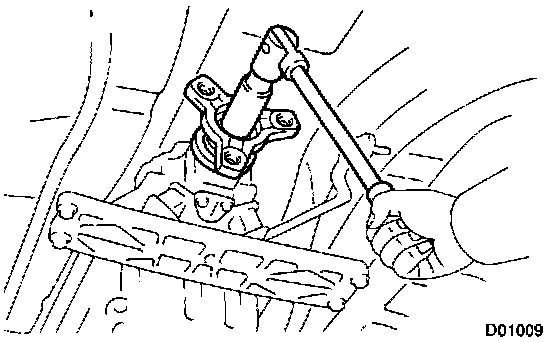

c. Using a 30 mm deeper socket wrench, install and torque a new nut.
Torque: 126 Nm (1,280 kgf-cm, 93 ft. lbs.)

HINT: Shift the shift lever to P position.

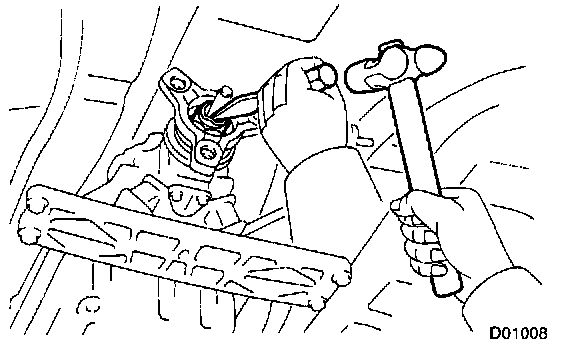

d. Using a chisel and hammer, stake the nut.
8. INSTALL PROPELLER SHAFT
9. INSTALL FRONT EXHAUST PIPE AND HEAT INSULATOR
10. FILL AND CHECK FLUID LEVEL
