Steering Column - Slider Sub Assembly Available

STEERING
ST002-00

April 14, 2000

Title:
STEERING COLUMN SERVICE PARTS

Models:
'98 - ' 99 GS 400/300

Introduction

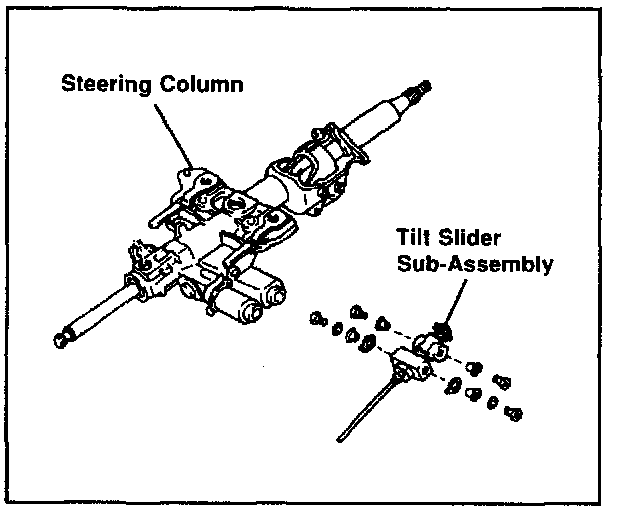

To improve steering column serviceability, the Tilt Slider Sub-Assembly is now available as a service part.

Applicable Vehicles
^ 1998 - 1999 model year GS 400/300

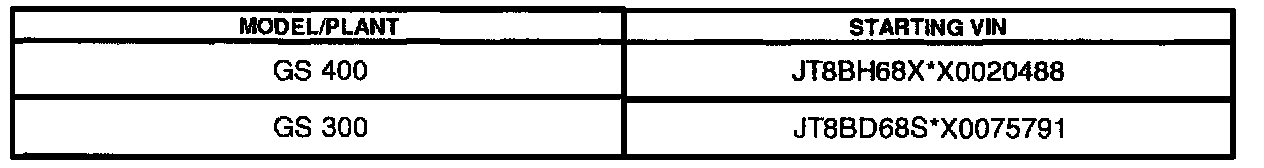

Production Change Information

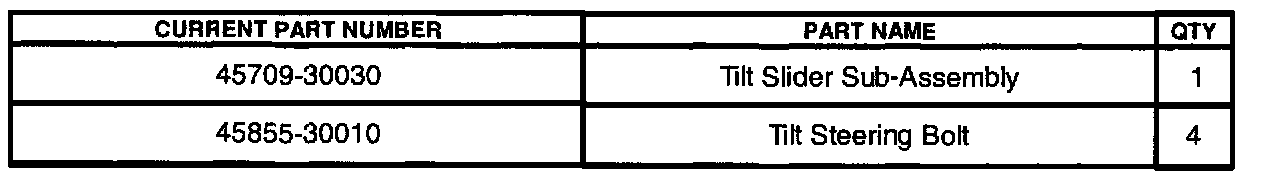

Parts Information





Repair Procedure

Refer to the 2000 model year GS 400/300
Repair Manual (Pub. No. RM718U2),
pages SR13 and SR15.

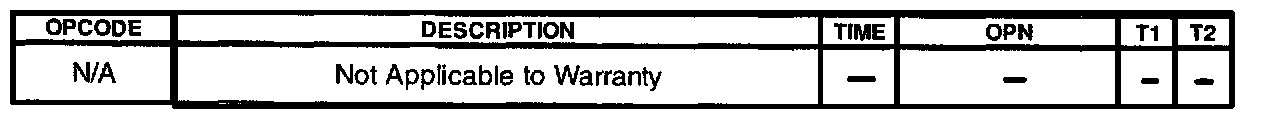

Warranty Information
