With Manufacturer's Scan Tool

DIAGNOSIS INSPECTION




Check the DTC
1. Prepare the LEXUS hand-held tester

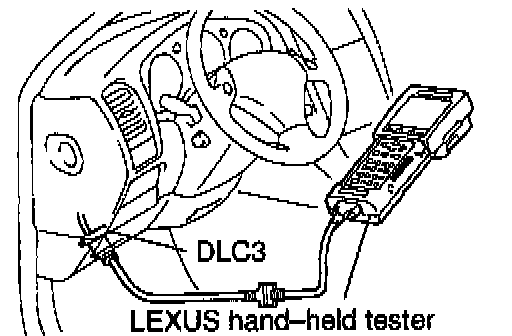

2. Connect the LEXUS hand-held tester to DLC3 at the lower of the instrument panel.
3. Turn the ignition switch ON and turn the LEXUS hand-held tester switch ON.
4. Use the LEXUS hand-held tester to check the DTCs and freeze frame data, note or print them (See the Operator's Manual for operating instructions.).
