Actuator Power Source Circuit

CIRCUIT DESCRIPTION
This is the Power Source for the motors.

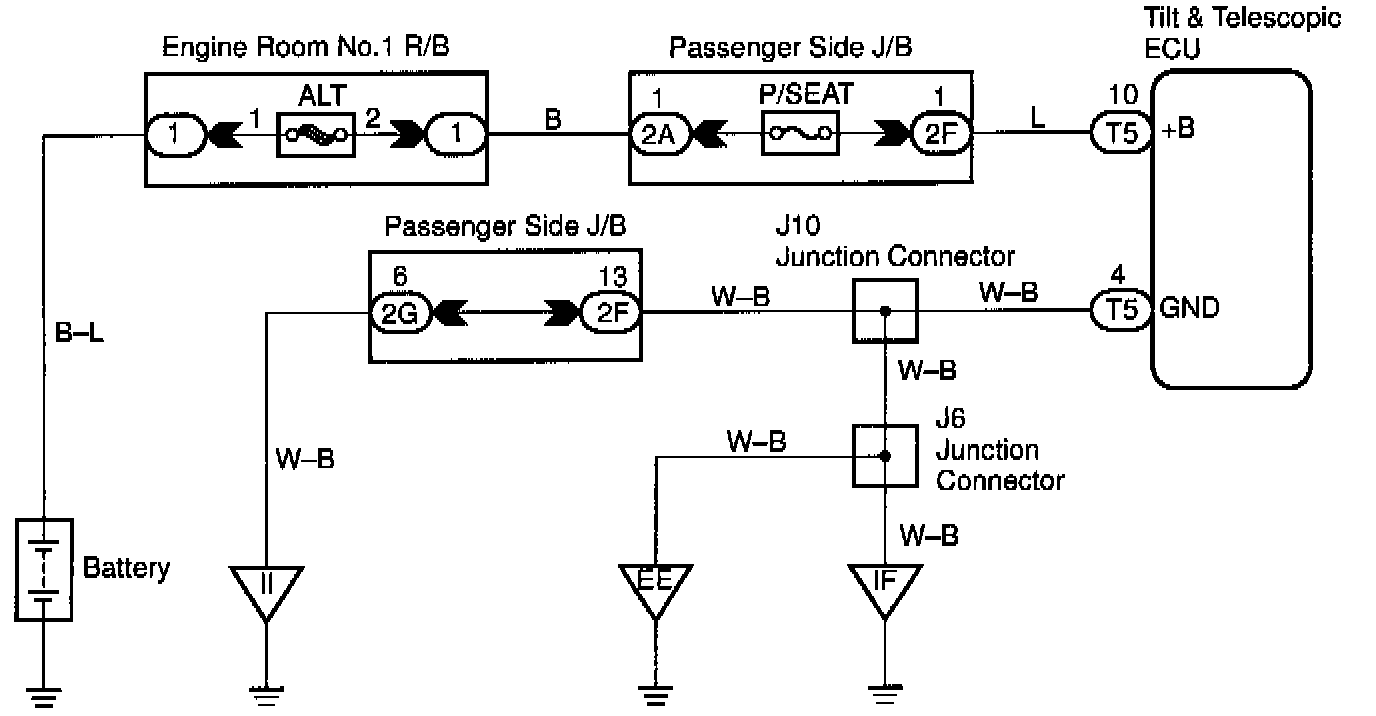

WIRING DIAGRAM

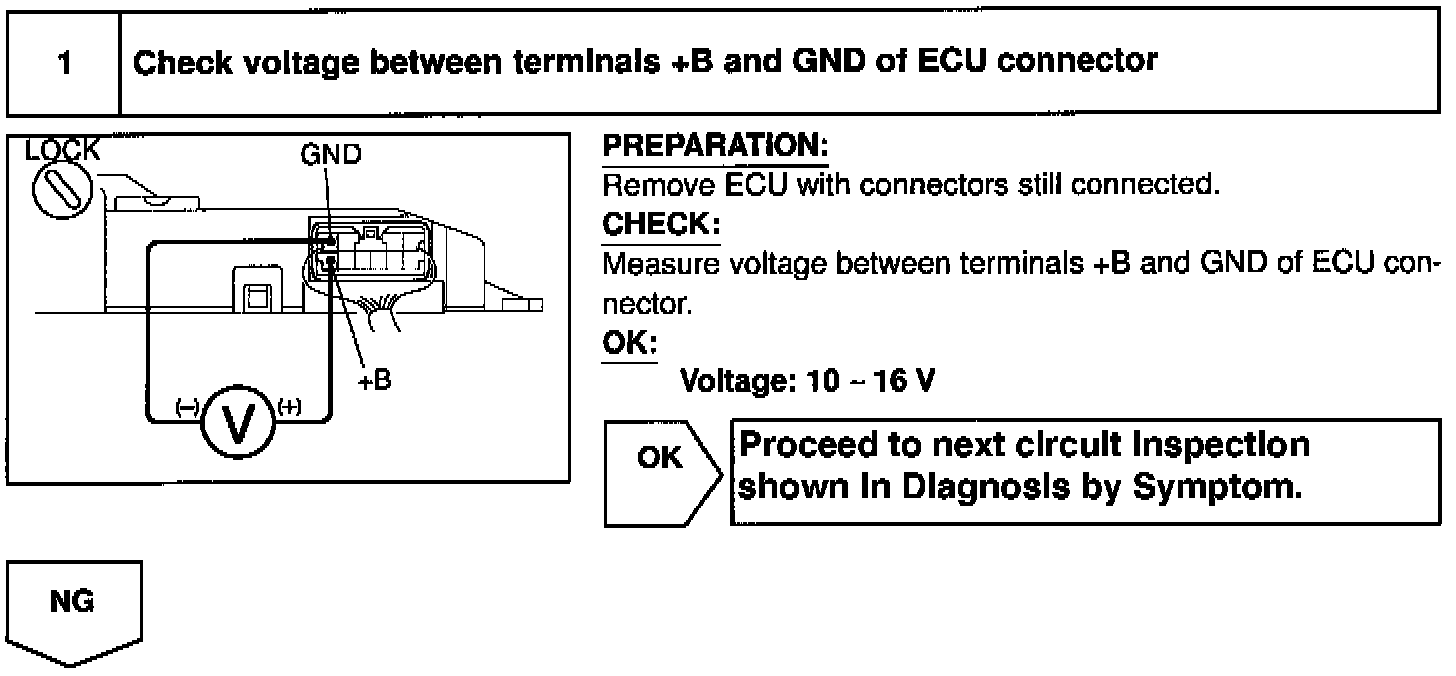

Step 1:

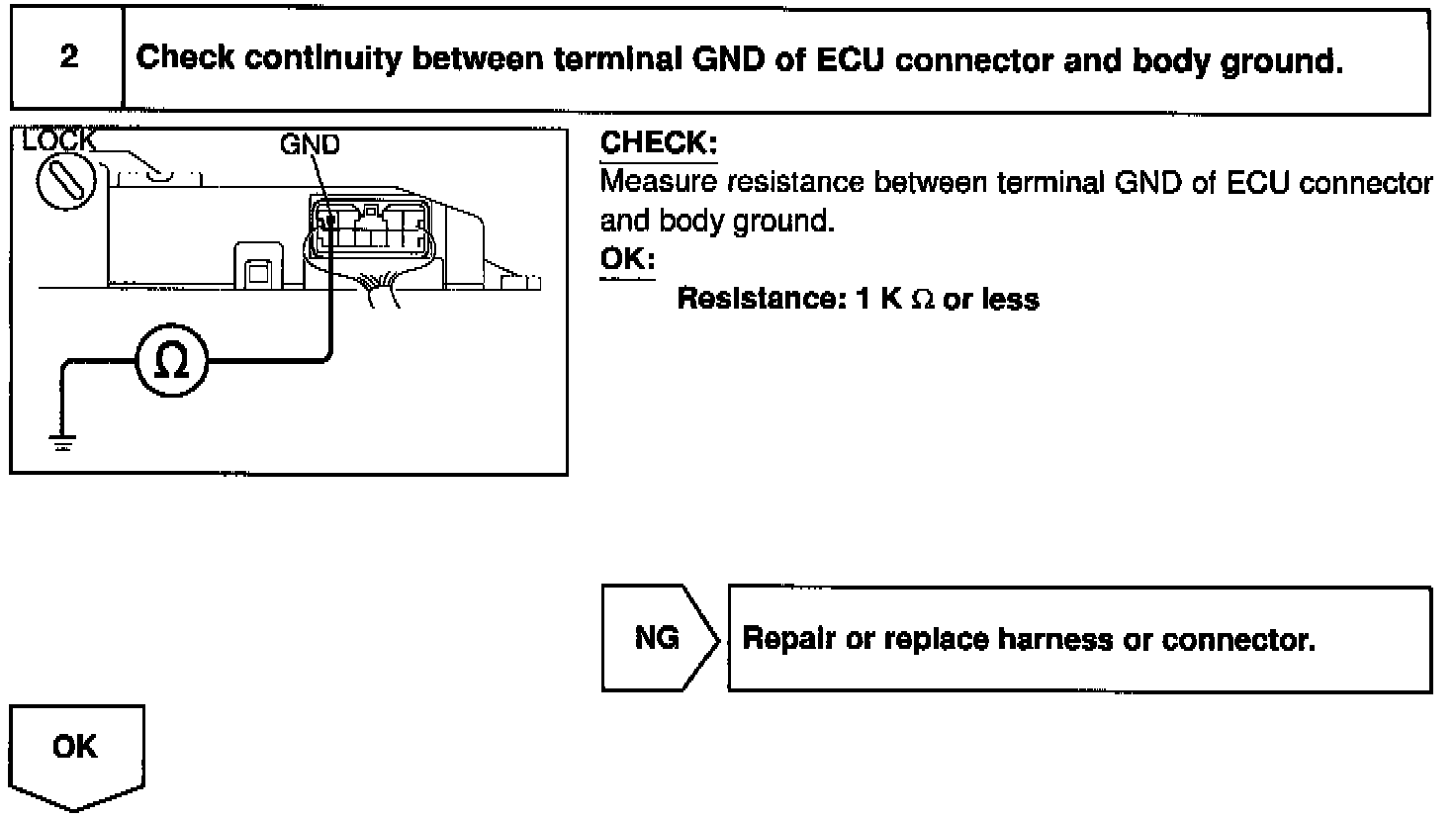

Step 2:

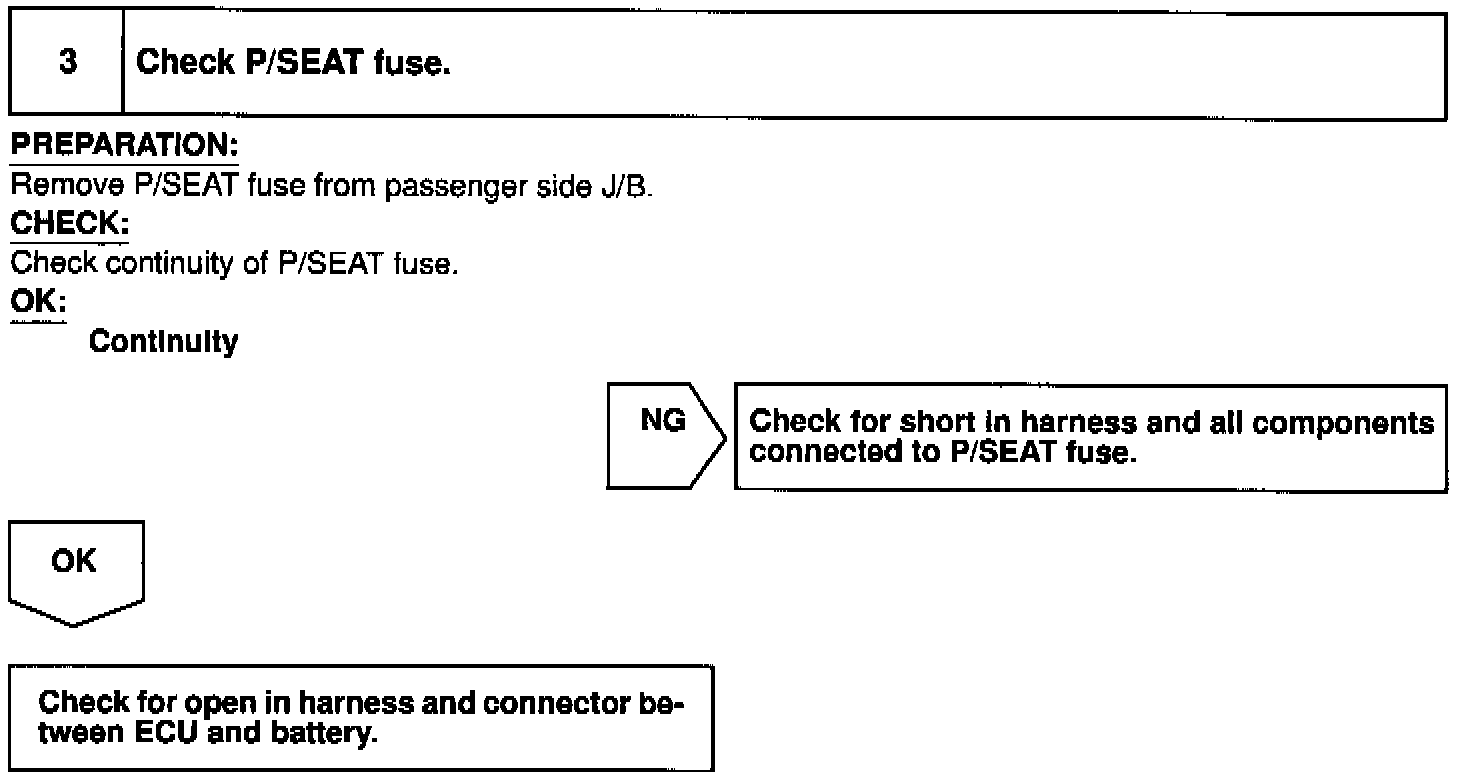

Step 3:




INSPECTION PROCEDURE
