Removal and Installation
REMOVAL1. REMOVE ENGINE UNDER COVER
Remove the 16 bolts.

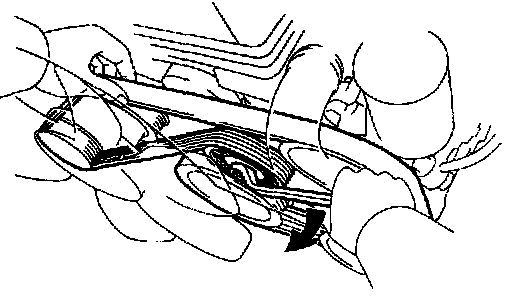

2. REMOVE DRIVE BELT
Loosen the drive bolt tension by turning the drive belt tensioner clockwise, and remove the belt.
3. REMOVE RETURN HOSE
Remove the clip and disconnect the hose.
4. REMOVE PRESSURE FEED TUBE
Remove the union bolt and gasket.

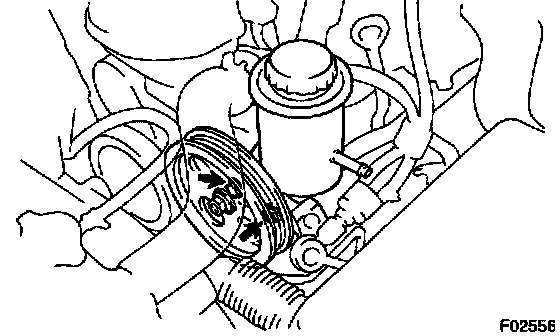

5. REMOVE PS VANE PUMP ASSEMBLY
a. Disconnect the connector.
b. Remove the 2 bolts.
INSTALLATION
1. INSTALL PS VANE PUMP ASSEMBLY
a. Torque the 2 bolts.
Torque: 58 Nm (590 kgf-cm, 43 ft. lbs.)
b. Connect the connector.
2. CONNECT PRESSURE FEED TUBE
Torque the union bolt over a new gasket.

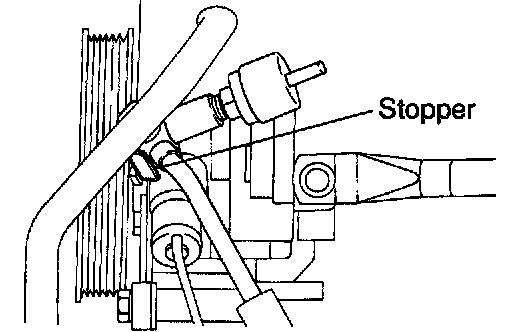

HINT: Make sure that the stopper of the tube is touching the PS vane pump body, as shown, before torquing the bolt.
Torque: 49 Nm (500 kgf-cm, 36 ft. lbs.)
3. CONNECT RETURN HOSE
Connect the hose with the clip.

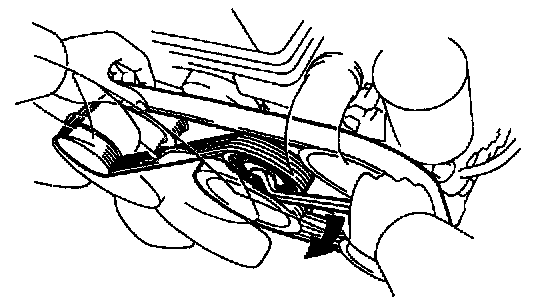

4. INSTALL DRIVE BELT
Loosen the drive belt tension by turning the drive belt tensioner clockwise, and install the belt.
5. INSTALL ENGINE UNDER COVER
Tighten the 16 bolts.
6. BLEED POWER STEERING SYSTEM
