Symptom Related Diagnostic Procedures

This system uses the multiplex communication system, so check diagnosis system of the multiplex communication system before you proceed with troubleshooting.

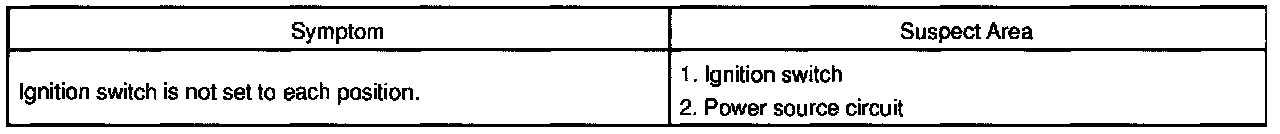

Ignition Switch:

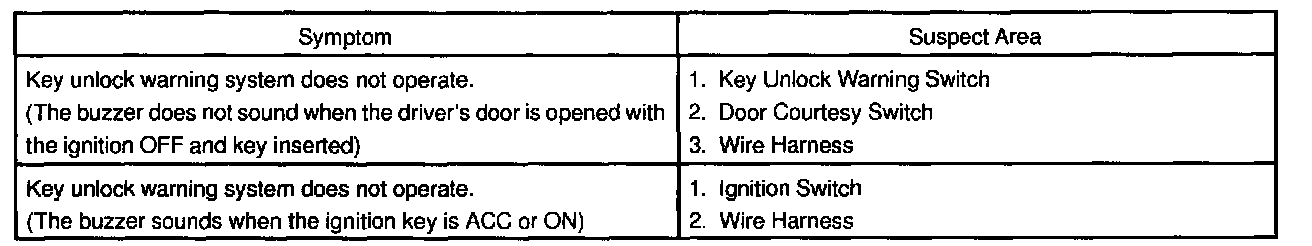

Key Unlock Warning Switch:
