Connector Joining Wire Harness and Wire Harness

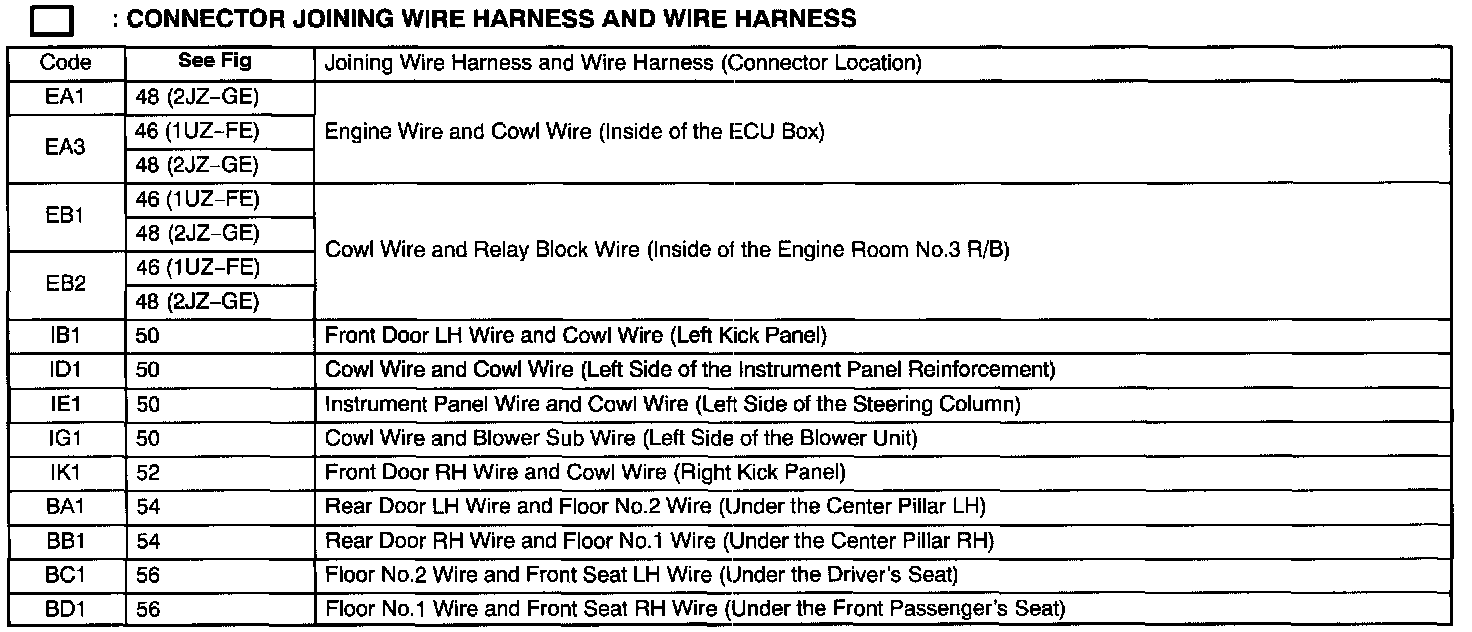

CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS




FIG 46

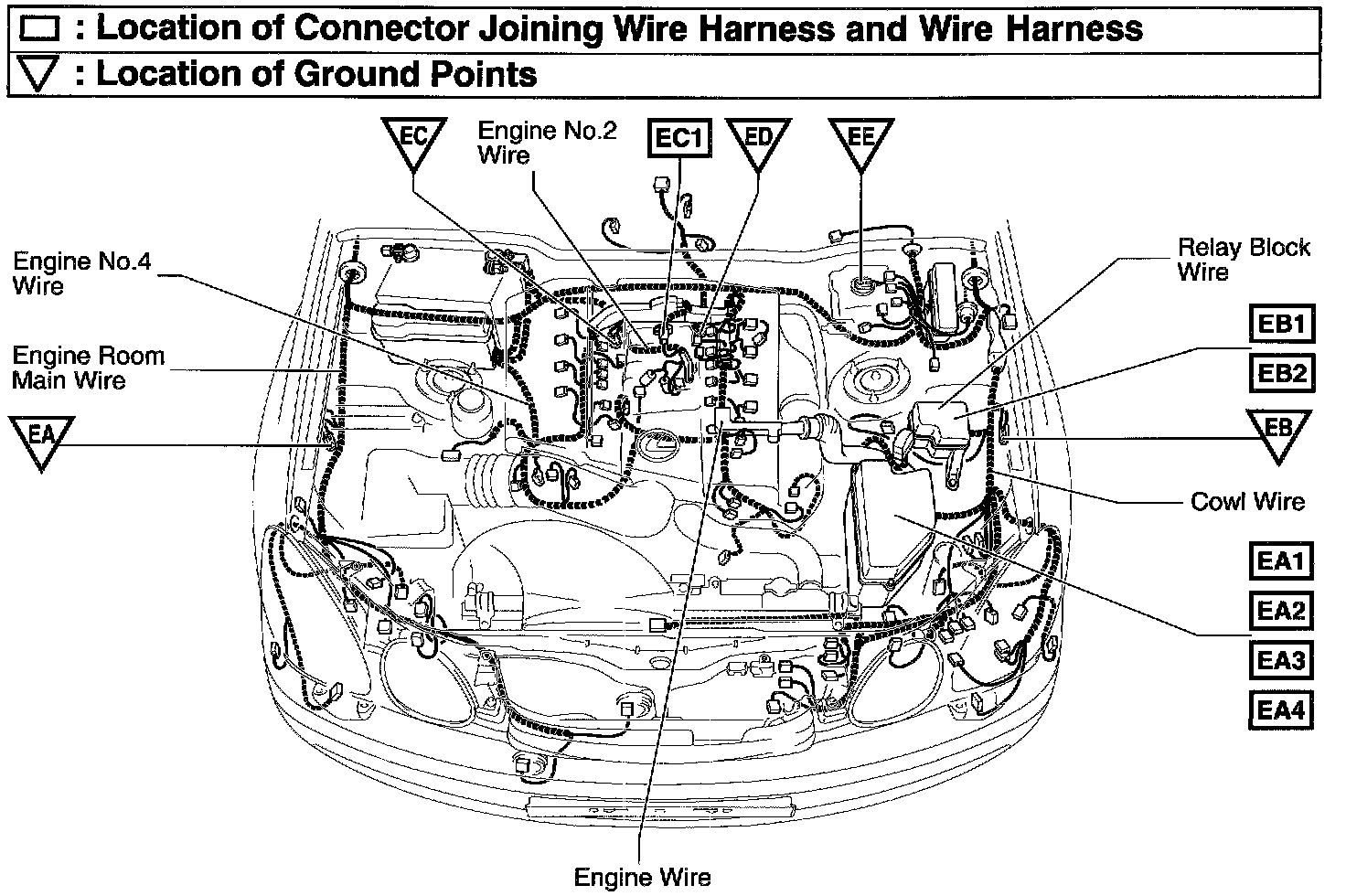

FIG 48




FIG 50




FIG 52




FIG 54

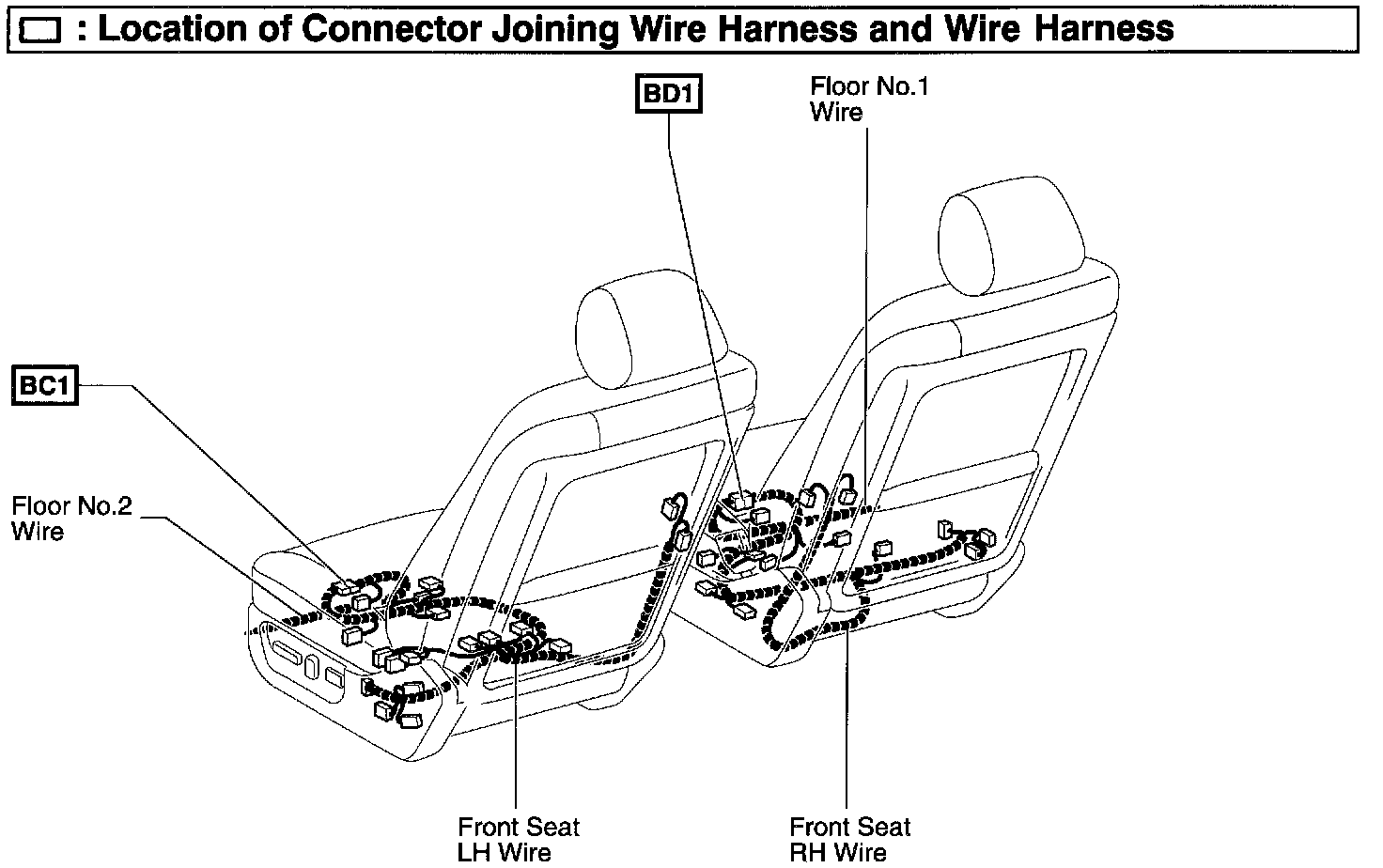

FIG 56
