Differential Technical Data

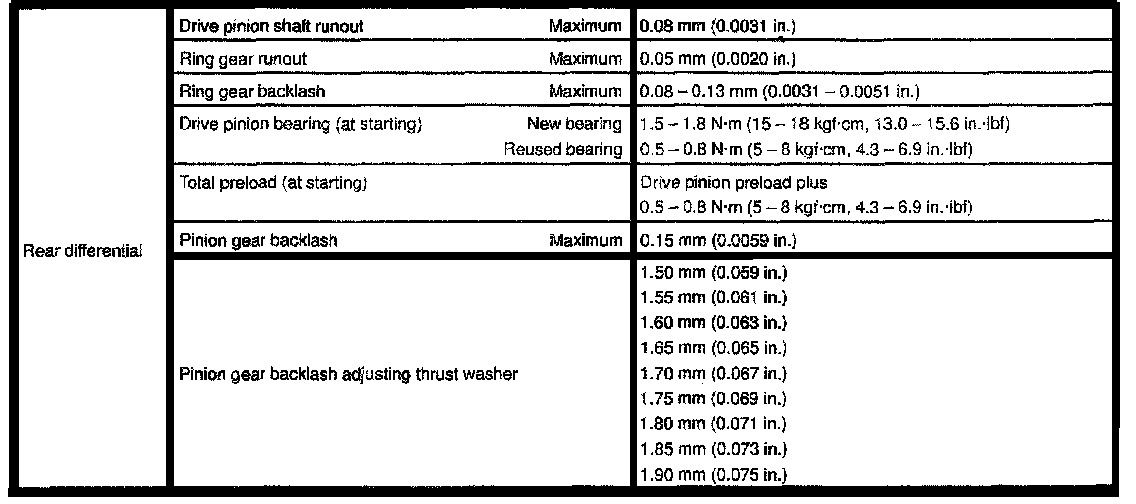

Rear Wheel Drive, Differential Ratios /Backlash:





Rear Wheel Drive, Differential Ring Gear:

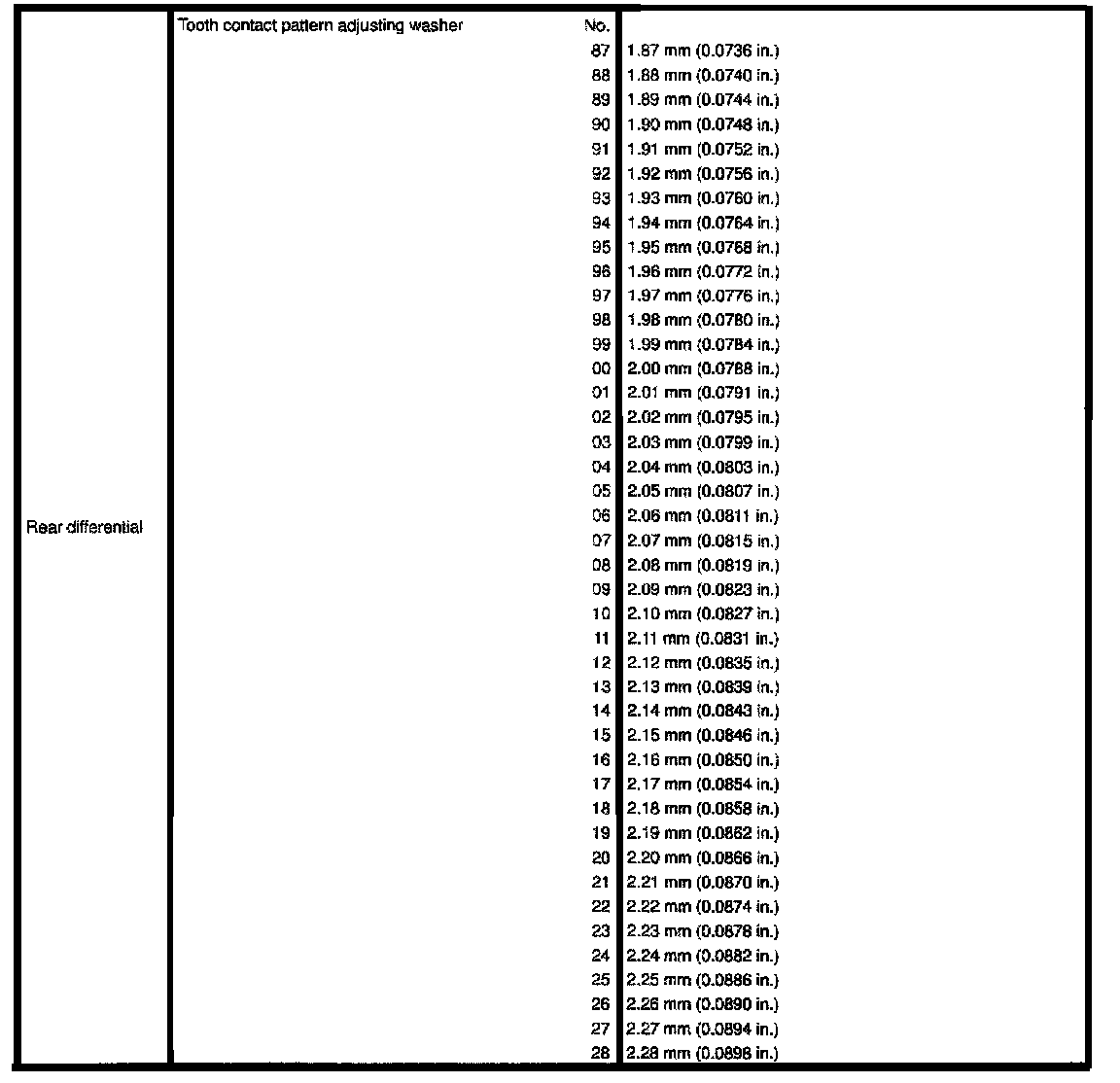

Rear Wheel Drive, Differential Tooth Contact Pattern:
