Line Pressure and Shift Schedules

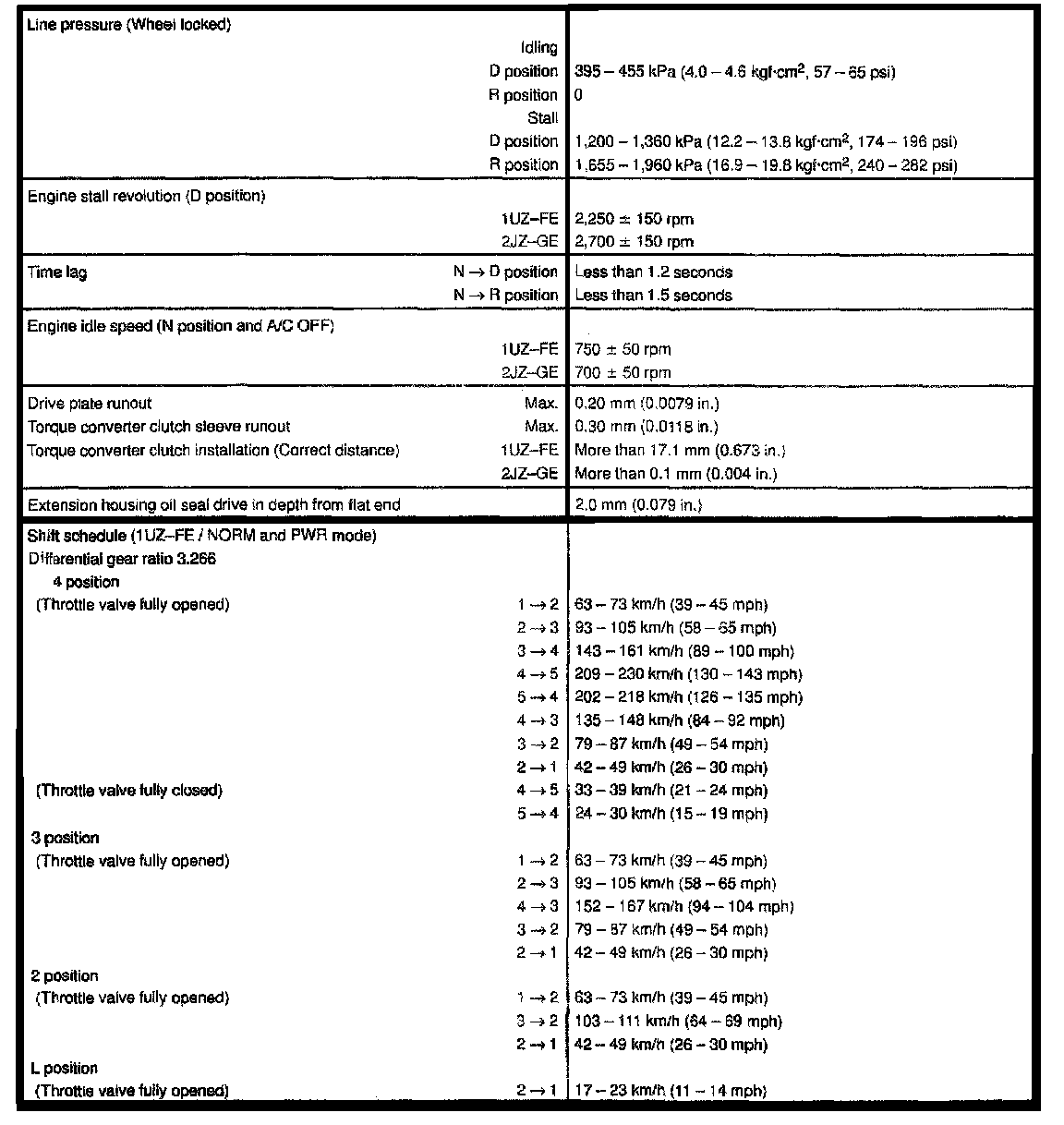

A650E 3-spd O/D A/T, Line Pressure / Shift Points:

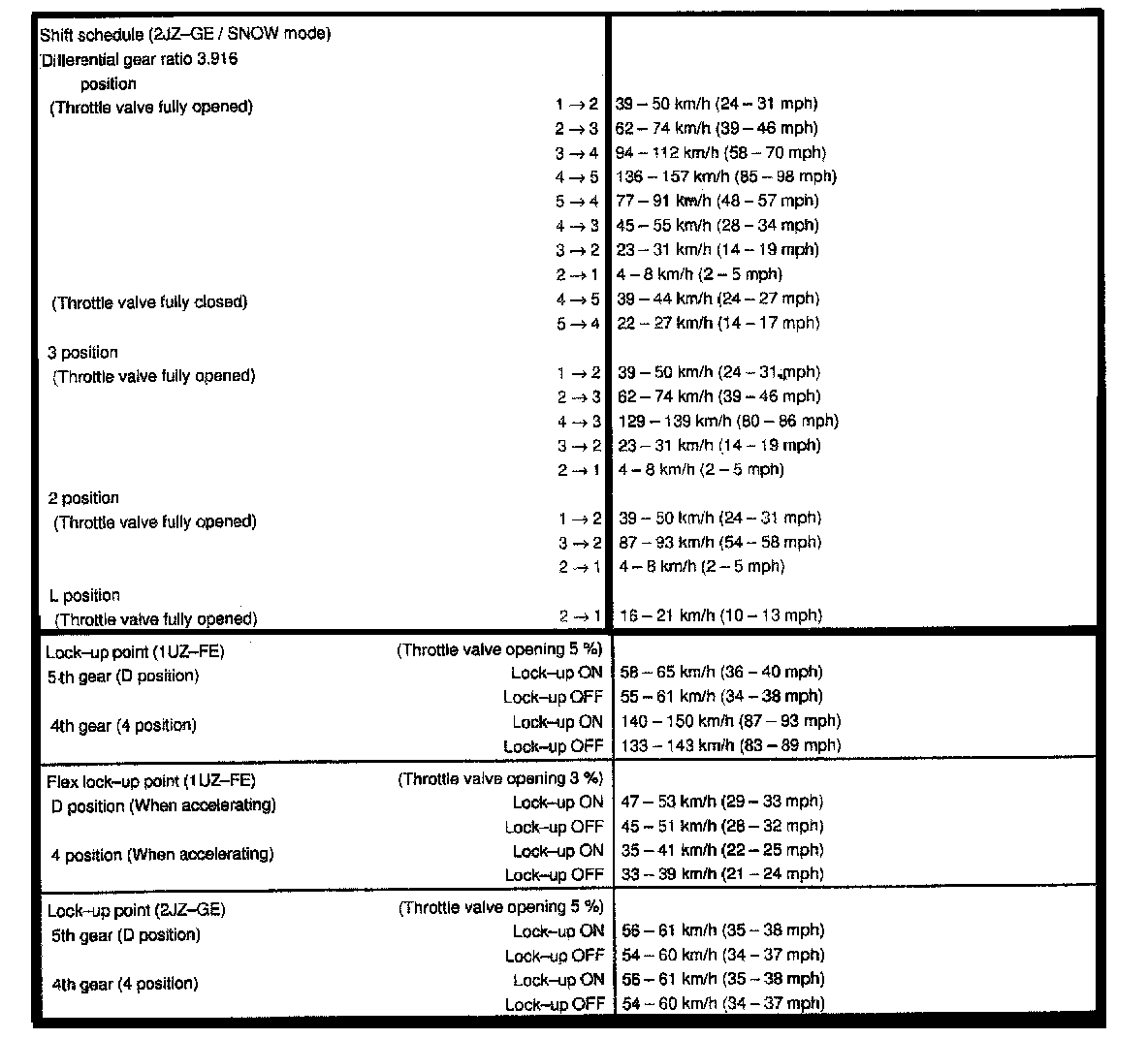

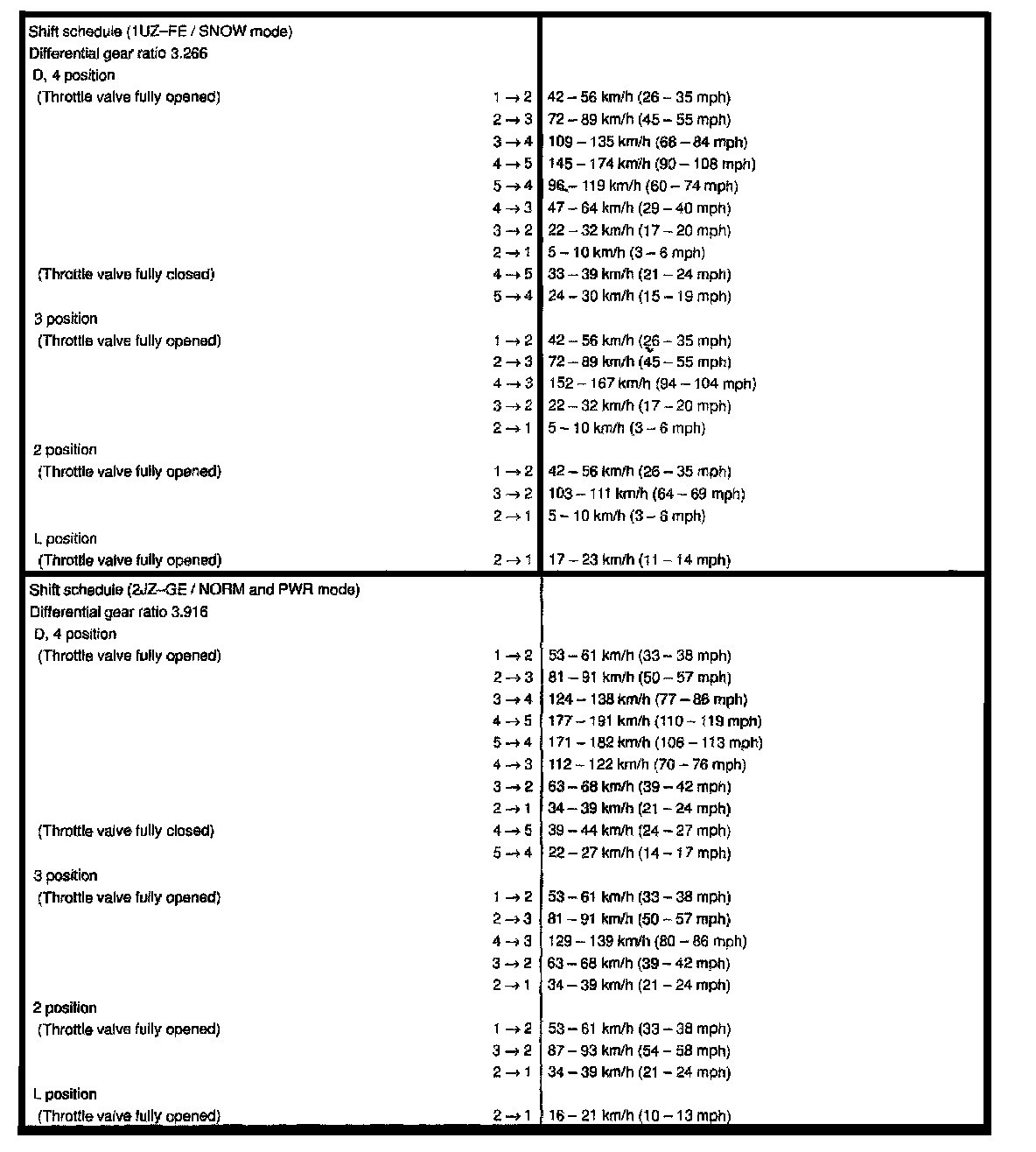

A650E 3-spd O/D A/T, Shift Schedule:





A650E 3-spd O/D A/T, Shift Schedule / Lock-Up Point:

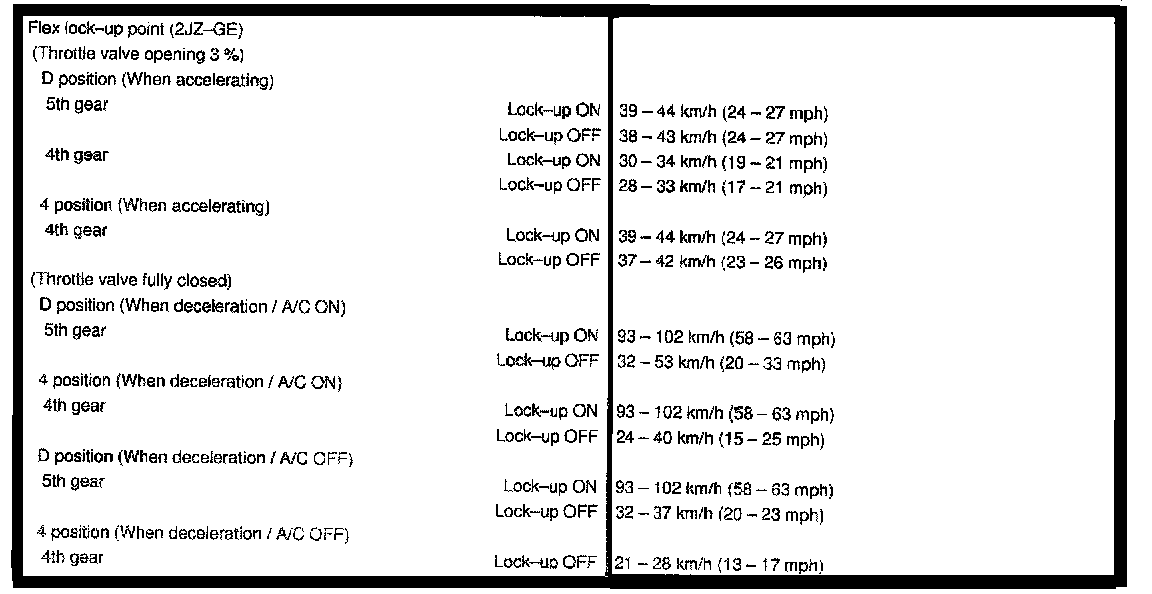

A650E 3-spd O/D A/T, Flex Lock-Up Point:
