Trunk Lamp Switch: Testing and Inspection

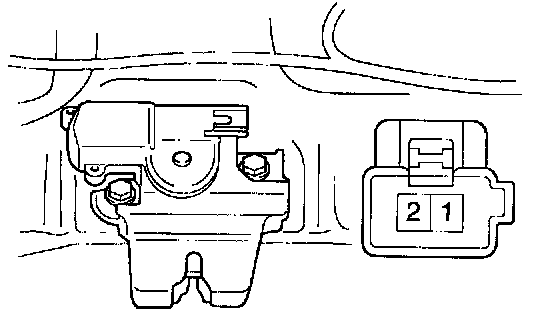

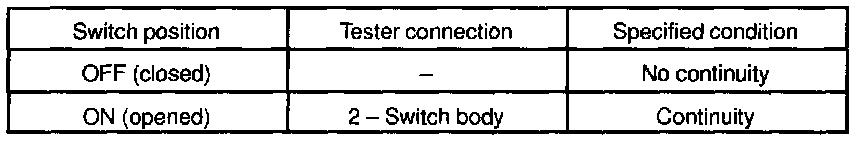

INSPECT LUGGAGE COMPARTMENT DOOR COURTESY SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

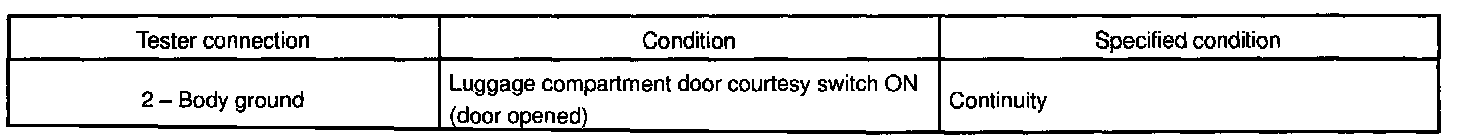

INSPECT LUGGAGE COMPARTMENT DOOR COURTESY SWITCH

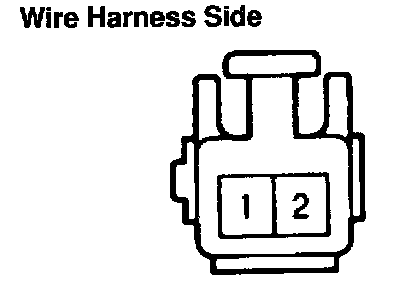

Disconnect the connector from the switch and inspect the connector on the wire harness side, as shown.
If circuit is not as specified, inspect power source or wire harness.
