With Lexus Hand-Held Tester

HINT: If the ignition switch is turned from ON to ACC or LOCK during test mode, DTC will be erased.




a. Check the sensor signal.

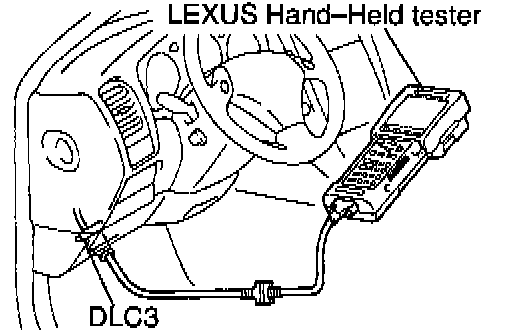

1. Hook up the LEXUS hand-held tester to the DLC3.
2. Do step (3) to (9).
3. Read the DTC by following the prompts on the tester screen.

HINT: Please refer to the LEXUS hand-held tester operator's manual for further details.




b. Check the DTC of the sensor function.
