Power Mirror Switch: Testing and Inspection

USA/CANADA models:

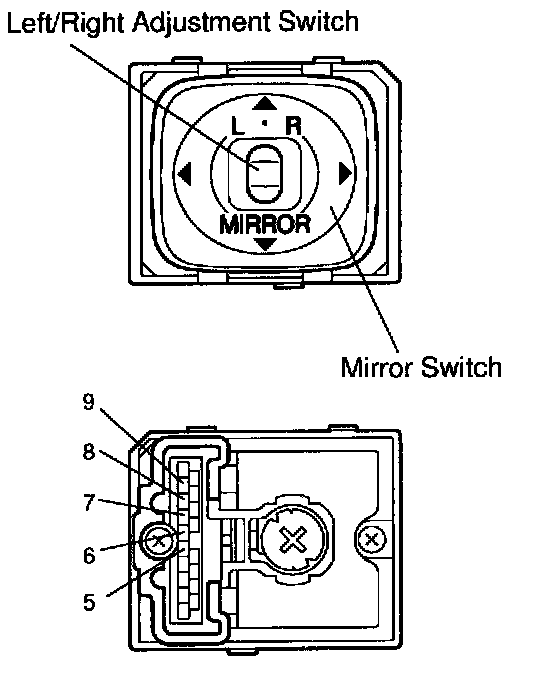

INSPECT MIRROR SWITCH CONTINUITY

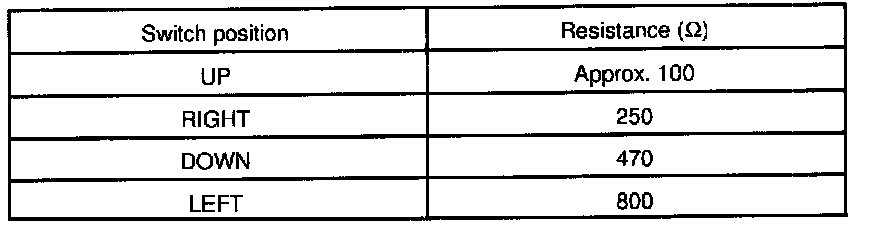

Measure resistance between terminals 7 and 9.
If continuity is not as specified, replace the switch.










TAIWAN model:

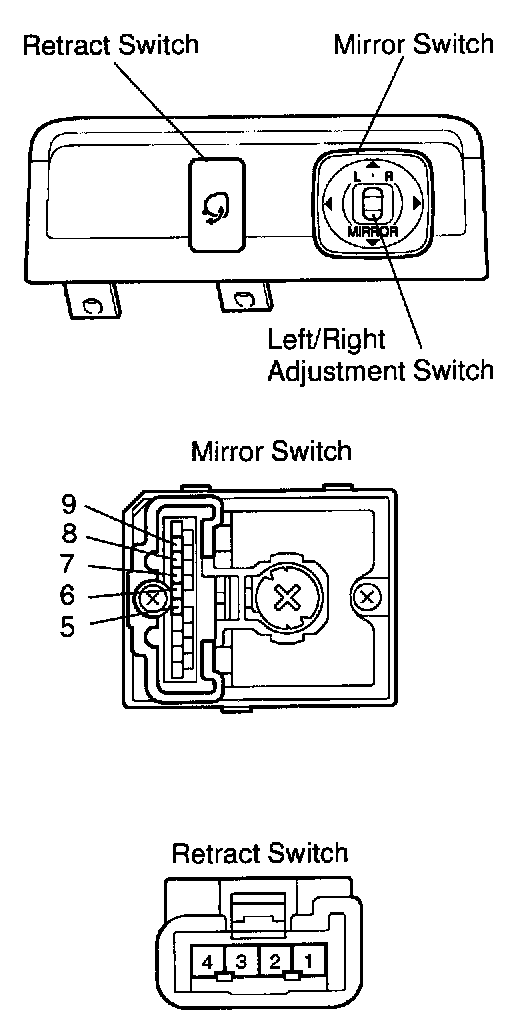

INSPECT MIRROR SWITCH CONTINUITY

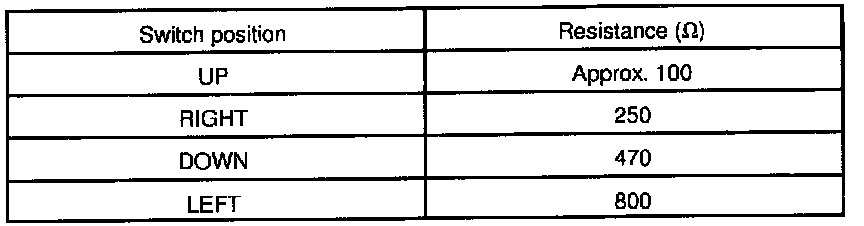

Measure resistance between terminals 7 and 9.
If continuity is not as specified, replace the switch.







TAIWAN model:

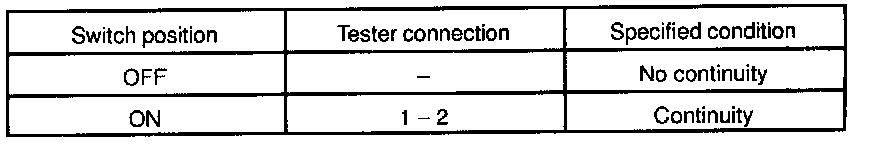

INSPECT RETRACT SWITCH CONTINUITY
If continuity is not as specified, replace the switch.
