Using SRS Warning Light

HINT: The illustration of connector shown below represents other illustrations. Though the shapes of some connectors are different, terminals alignment is same.

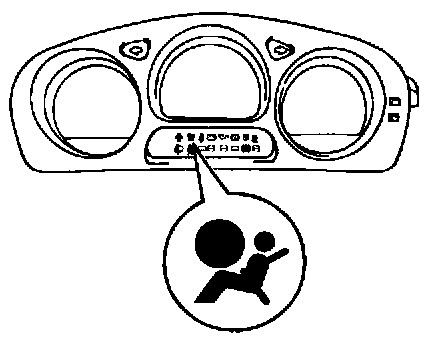

a. Turn the ignition switch to ACC or ON and check that the SRS warning light lights up.
b. Check that the SRS warning light goes out after approx. 6 seconds.

HINT:
- When the ignition switch is at ACC or ON and the SRS warning light remains ON or flashes, the airbag sensor assembly has detected a malfunction code.
- If, after approx. 6 seconds have elapsed, the SRS warning light sometimes lights up or the SRS warning light lights up even when the ignition switch is OFF, a short in the SRS warning light circuit can be considered likely. Proceed to "SRS warning light circuit malfunction".
