Reading and Clearing Diagnostic Trouble Codes
>>
Displaying & Reading Trouble Codes
>>
With Manufacturer's Scan Tool
With Manufacturer's Scan Tool
a.

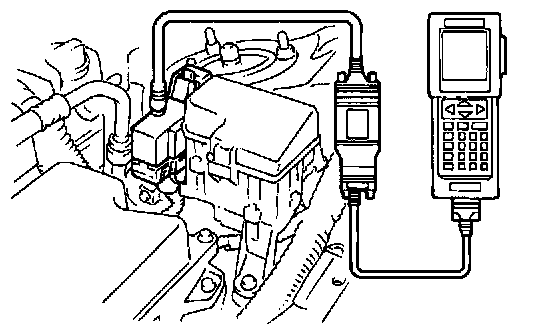

Hook up the LEXUS hand-held tester to the DLC1.
b.
Read the DTCs by following the prompts on the tester screen.
HINT:
Please refer to the LEXUS hand-held tester for further details.
