TC Terminal Circuit

CIRCUIT DESCRIPTION
By connecting terminals Tc and E1 of the DLC1 the airbag sensor assembly is set in the DTC output mode.
The DTCs are displayed by the blinking of SRS warning light.

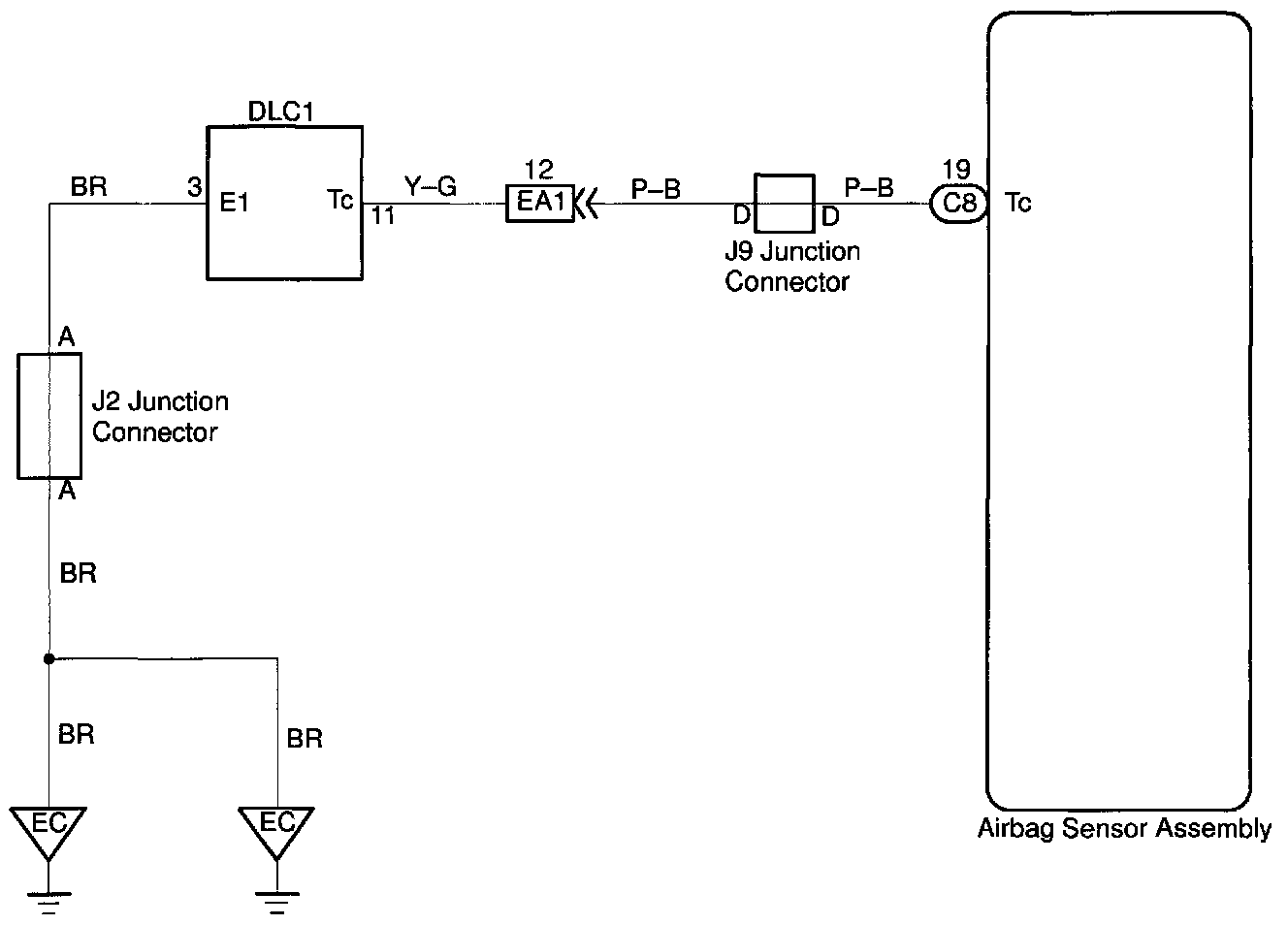

WIRING DIAGRAM

INSPECTION PROCEDURE
If the DTC is not displayed, do the following troubleshooting

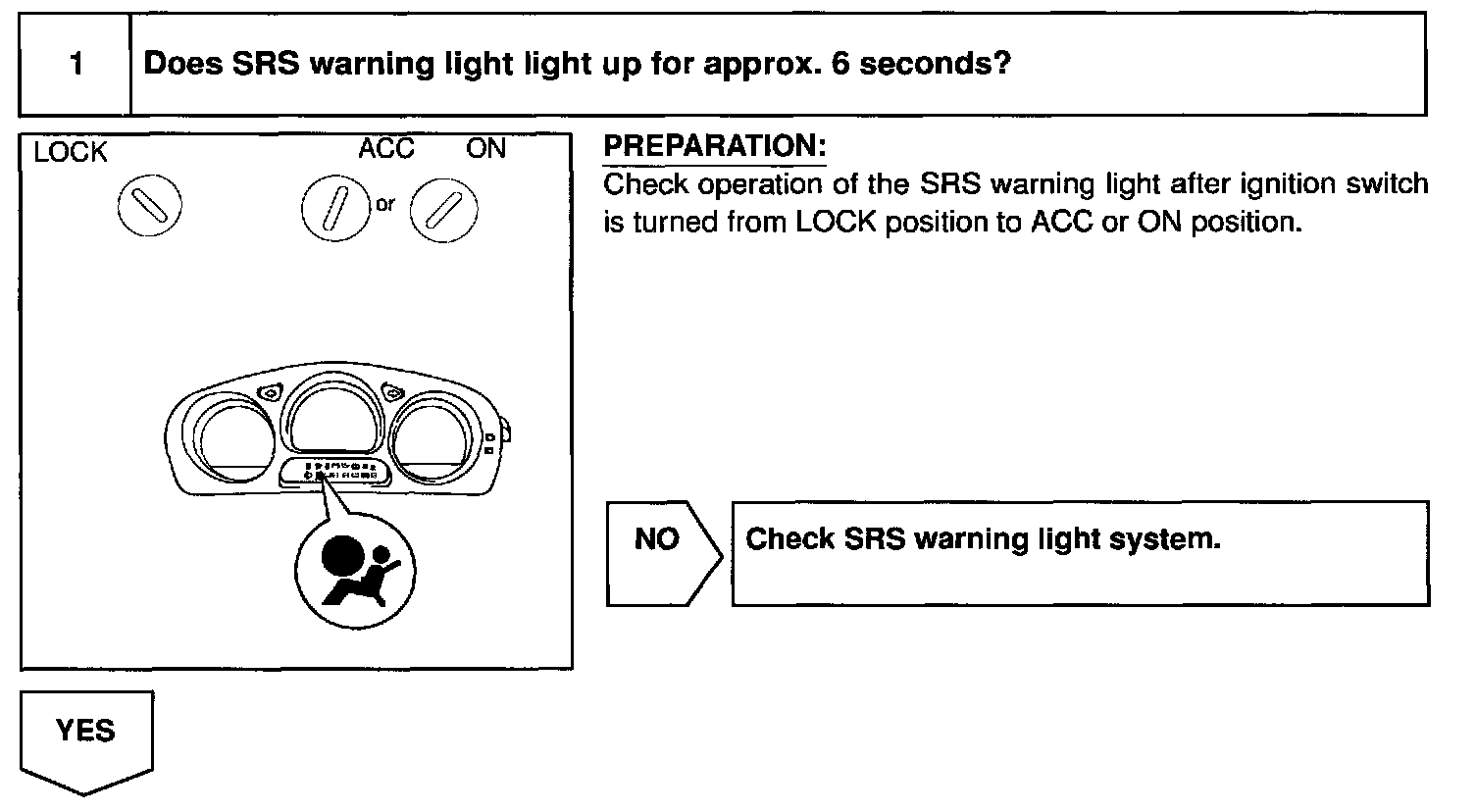

Step 1/Does SRS warning light light up for approx. 6 seconds?

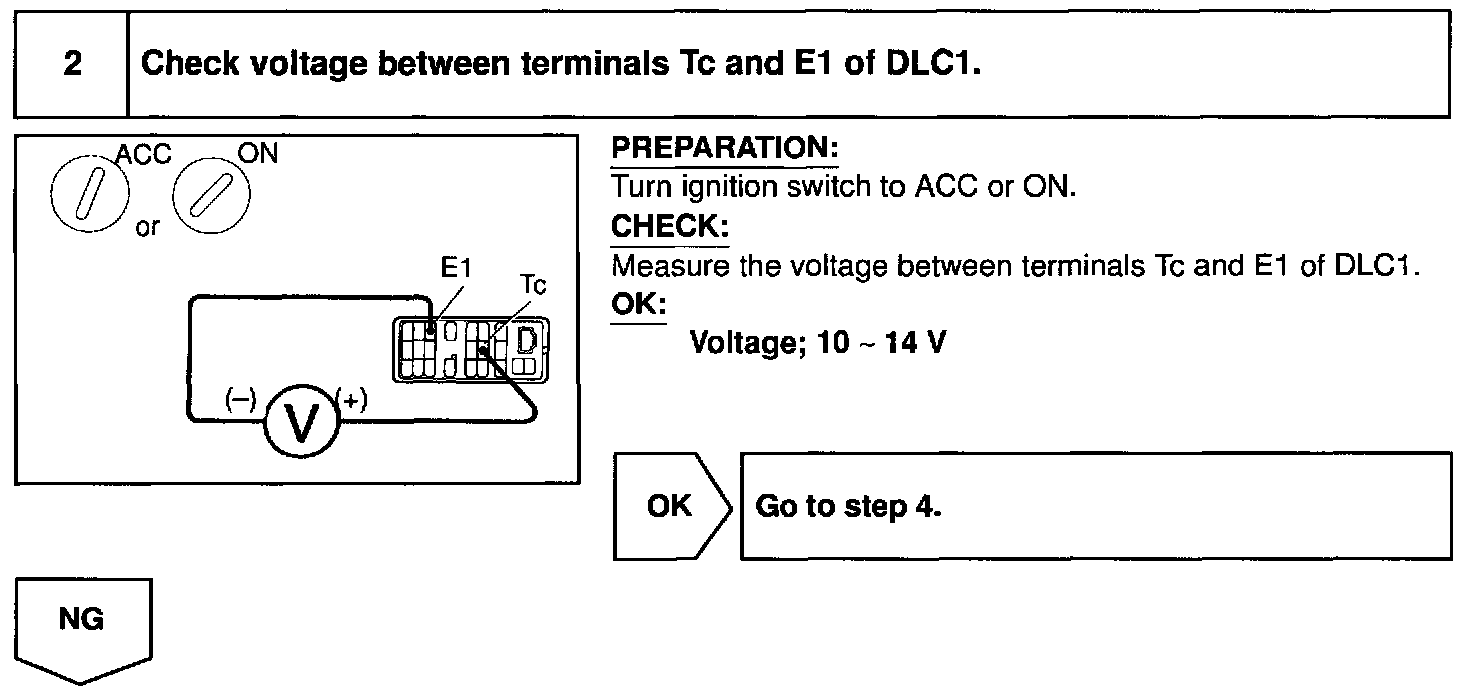

Step 2/Check voltage between terminals Tc and E1 of DLC1

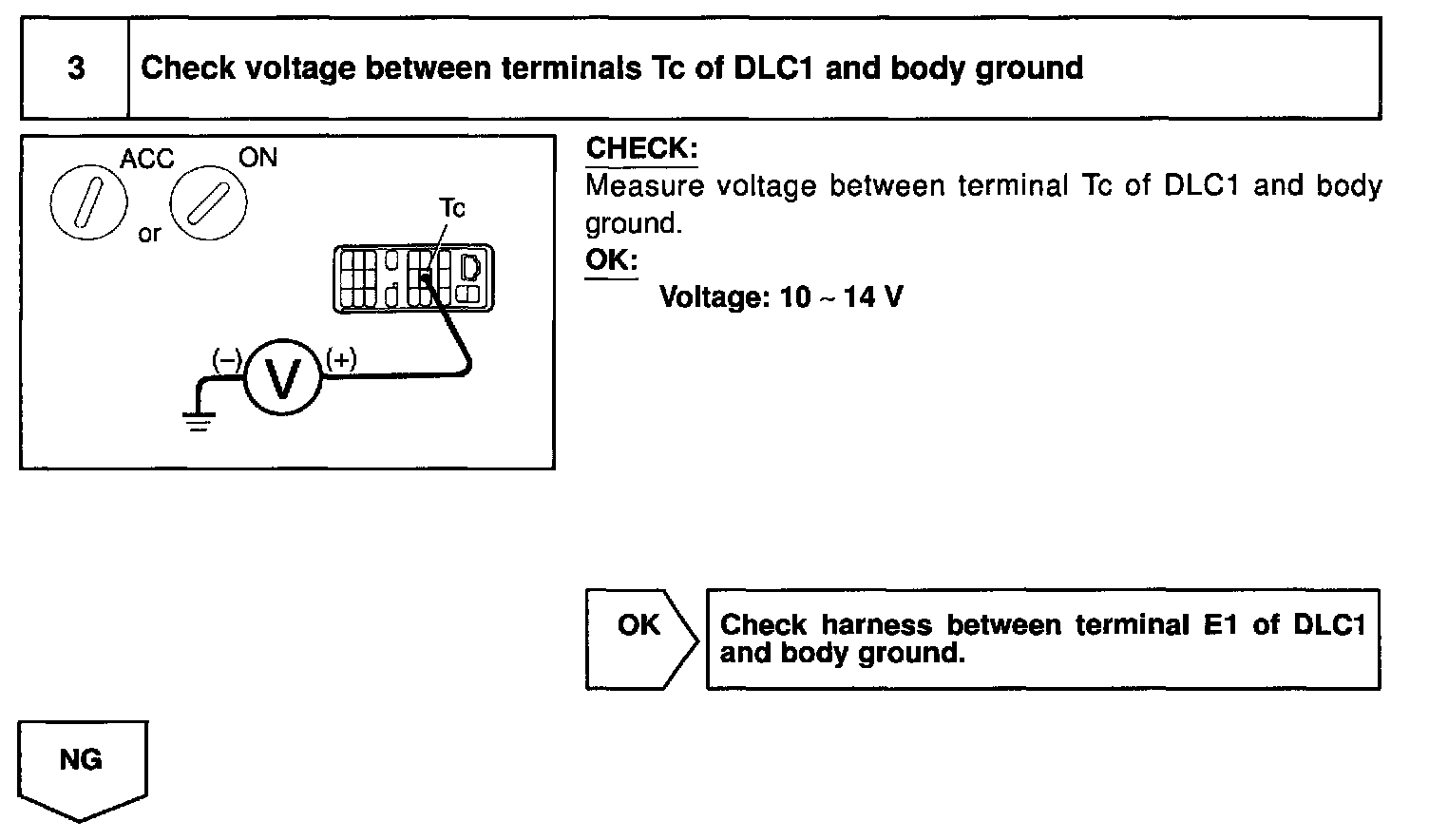

Step 3/Check voltage between terminals Tc of DLC1 and body ground

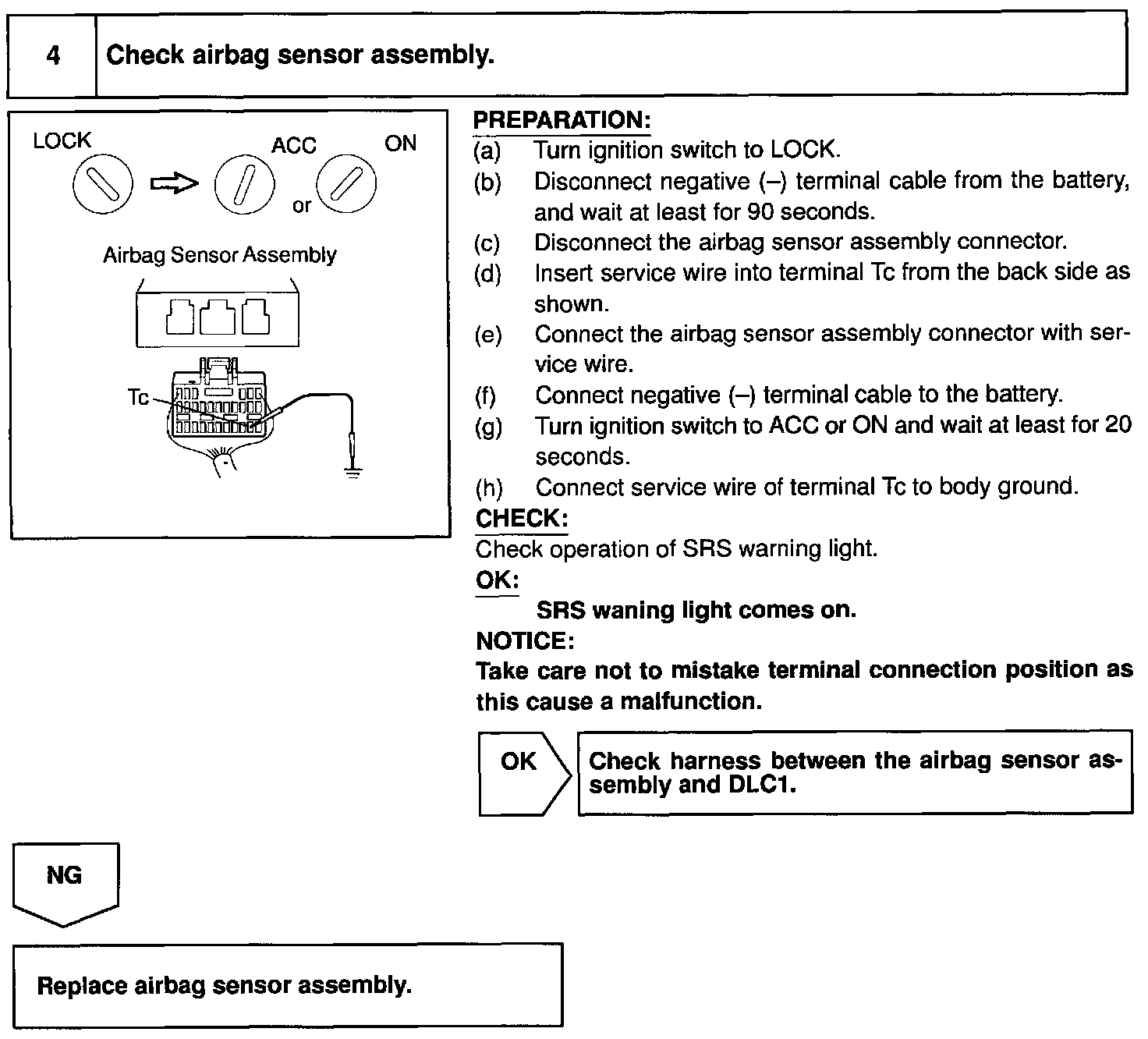

Step 4/Check airbag sensor assembly

If DTC is displayed without a DTC check procedure, perform following troubleshooting

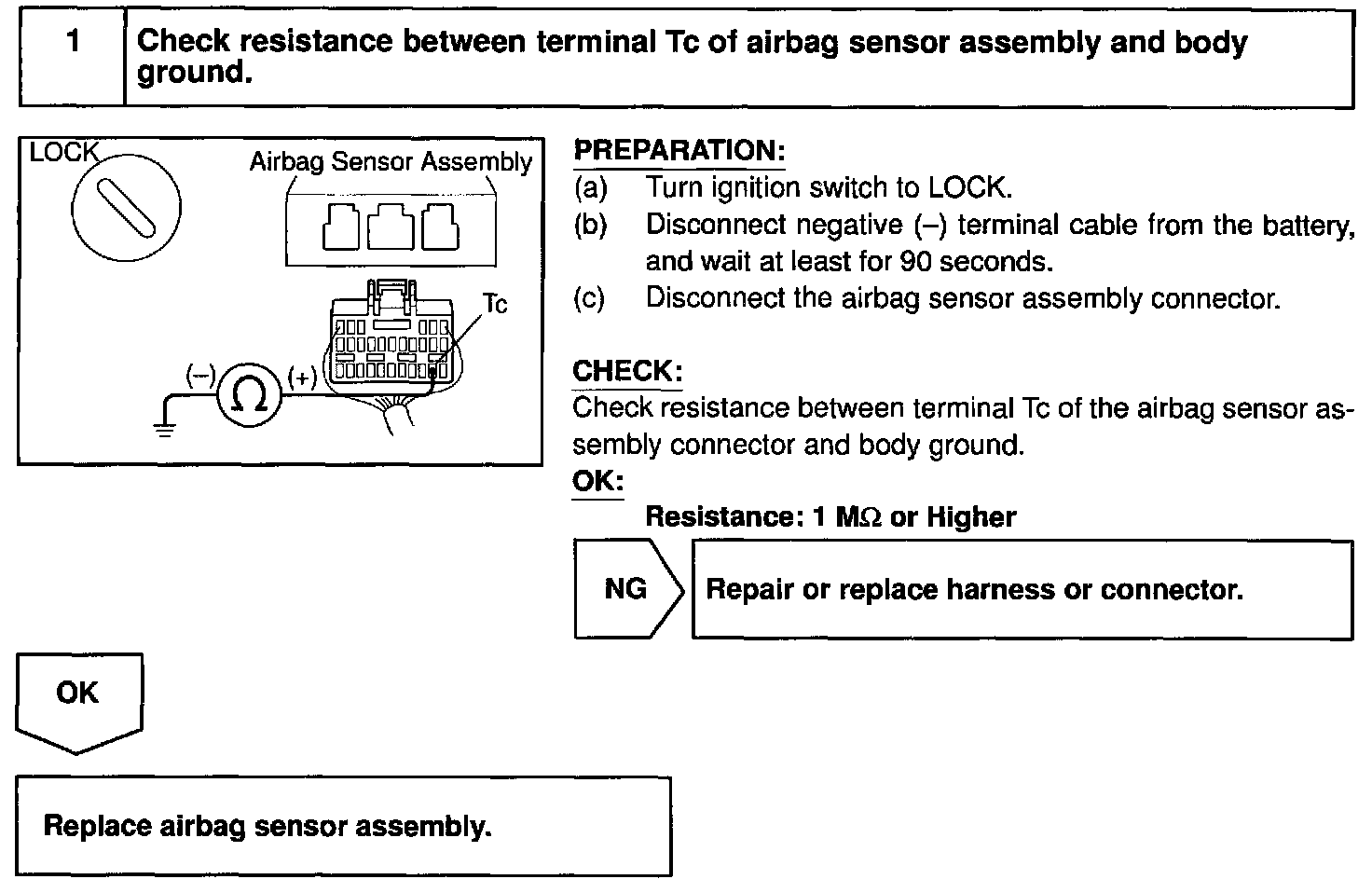

Step 1/Check resistance between terminal Tc of airbag sensor assembly and body
