Installation

NOTE: Never use airbag parts from another vehicle. When replacing parts, replace them with new parts.

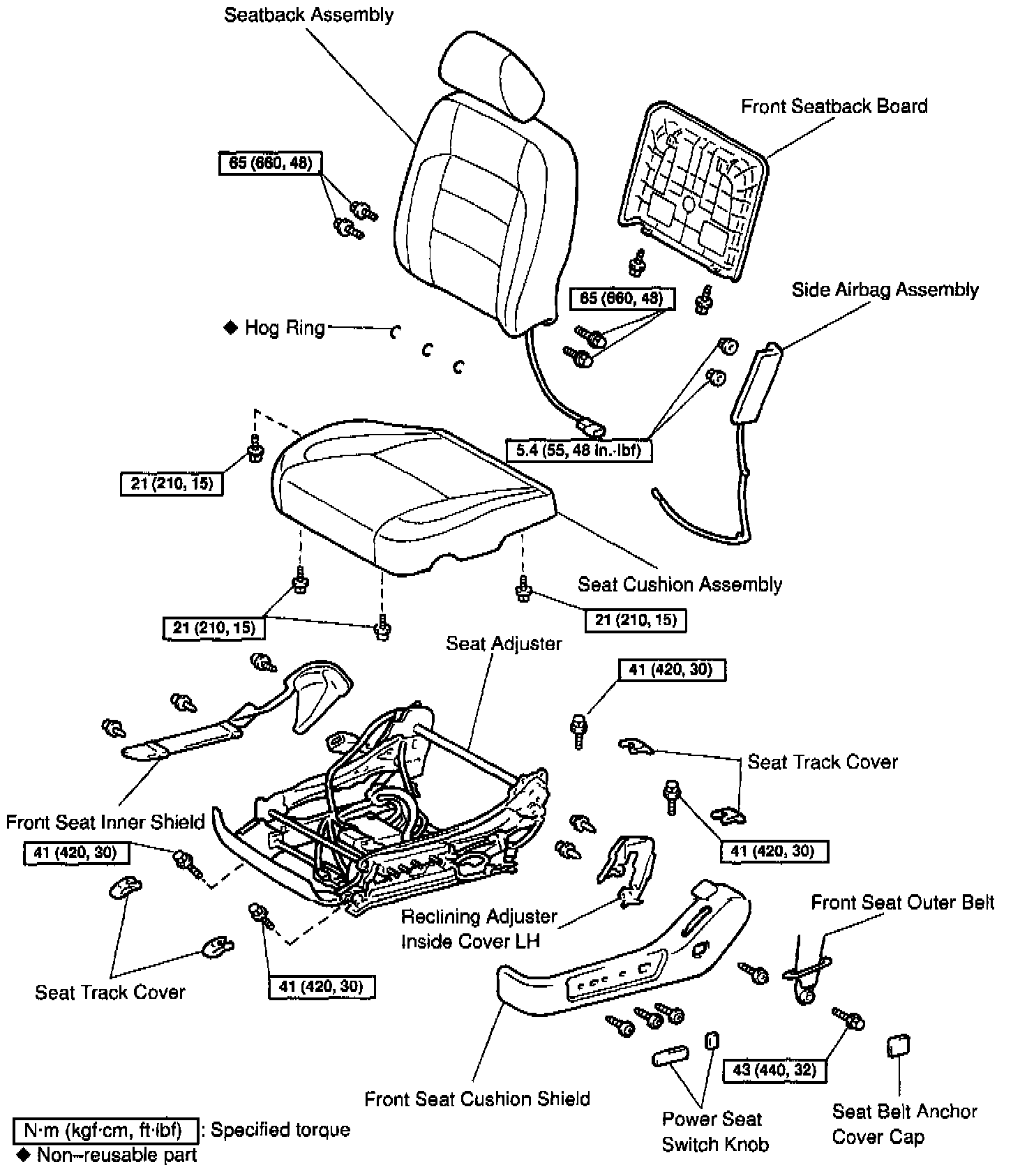

1. INSTALL SIDE AIRBAG ASSEMBLY









a. Install the 2 nuts and side airbag assembly to the seat- back frame.

Torque: 5.4 Nm (55 kgf.cm, 48 in.lbf)

NOTE:
- Make sure that the side airbag assembly is installed to the specified torque.
- If the side airbag assembly has been dropped, or there are cracks, dents or other defects in the case or connector, replace the side airbag assembly with a new one.
- When installing the side airbag assembly, take care it is not pinched between other parts.

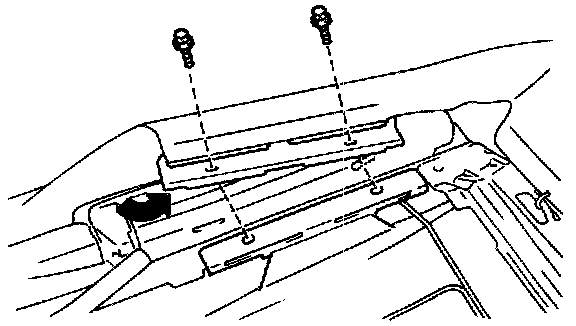

b. Hang the 2 hooks onto the seatback frame, then install the 2 bolts.

CAUTION: Take care to hung the hook securely. Otherwise the seat cover slides, it might cause incorrect deploying.






c. Hang the hook onto the seatback frame.
d. Install the clamp.

2. INSTALL THESE PARTS:
a. Seatback assembly
b. Front seatback board
c. Reclining adjuster inside cover LH
d. Seat cushion assembly
e. Front seat inner shield
f. Front seat cushion shield
g. Power seat switch knobs






3. INSTALL SIDE AIRBAG ASSEMBLY WIRE HARNESS
a. Install the wire harness with the 5 clamps to the seat cushion frame.
b. Install the connector to the bracket.

4. INSTALL FRONT SEAT

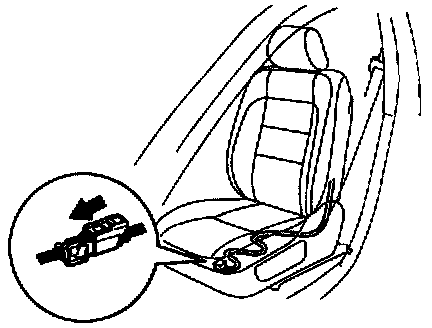

a. Disconnect the connector, then install the 4 bolts.

Torque: 37 Nm (375 kgf.cm, 27 ft.lbf)

b. Install the 4 seat track covers.






5. INSTALL FRONT SEAT OUTER BELT FLOOR ANCHOR
a. Install the front seat outer belt floor anchor.

Torque: 43 Nm (440 kgf.cm, 32 ft.lbf)

b. Install the seat belt anchor cover cap.
