B2620 - ECU Power Source Circuit Malfunction

CIRCUIT DESCRIPTION
ECU Power Source circuit supply the battery positive voltage to Tilt and Telescopic ECU.

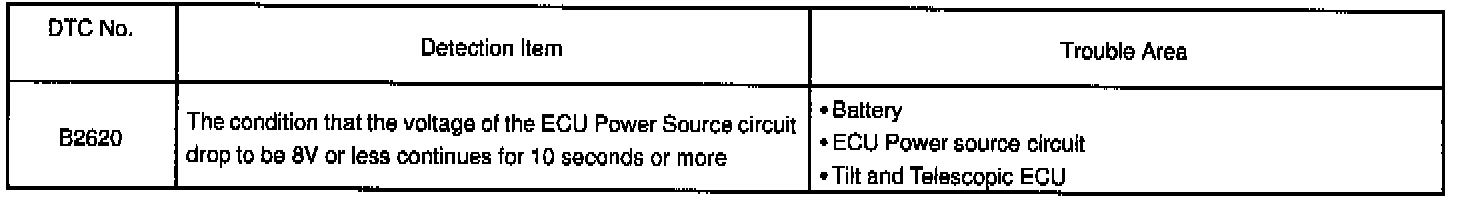

DETECTING CONDITIONS




WIRING DIAGRAM

Step 1:

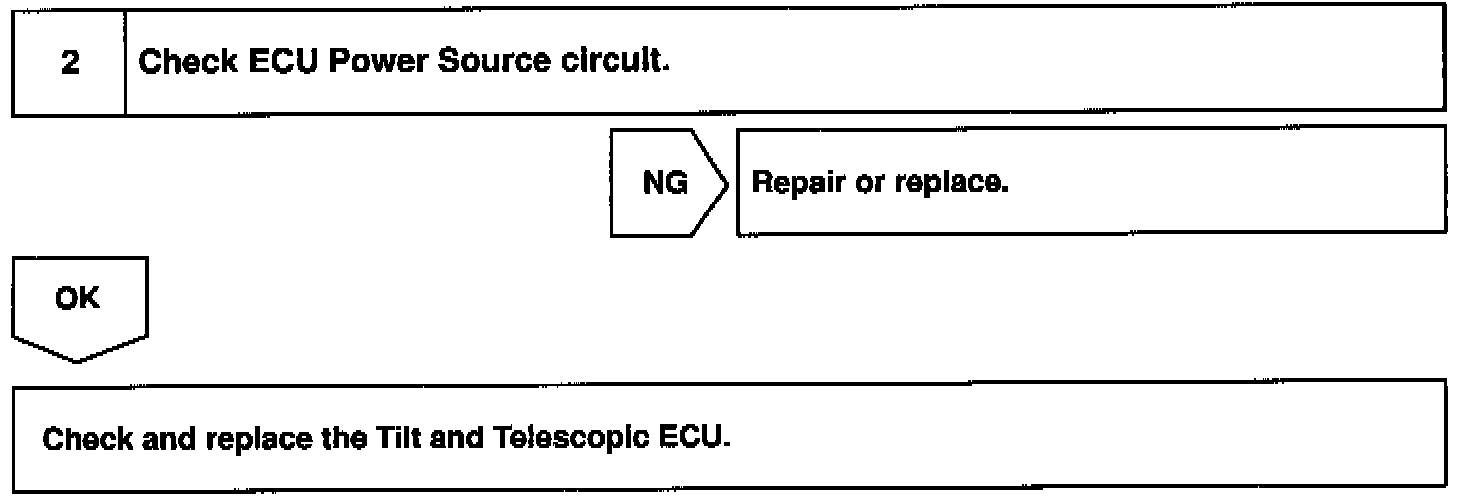

Step 2:




INSPECTION PROCEDURE
