Shift Lock Solenoid Circuit

CIRCUIT DESCRIPTION
Body No.2 ECU performs ON/OFF of the shift lock solenoid.

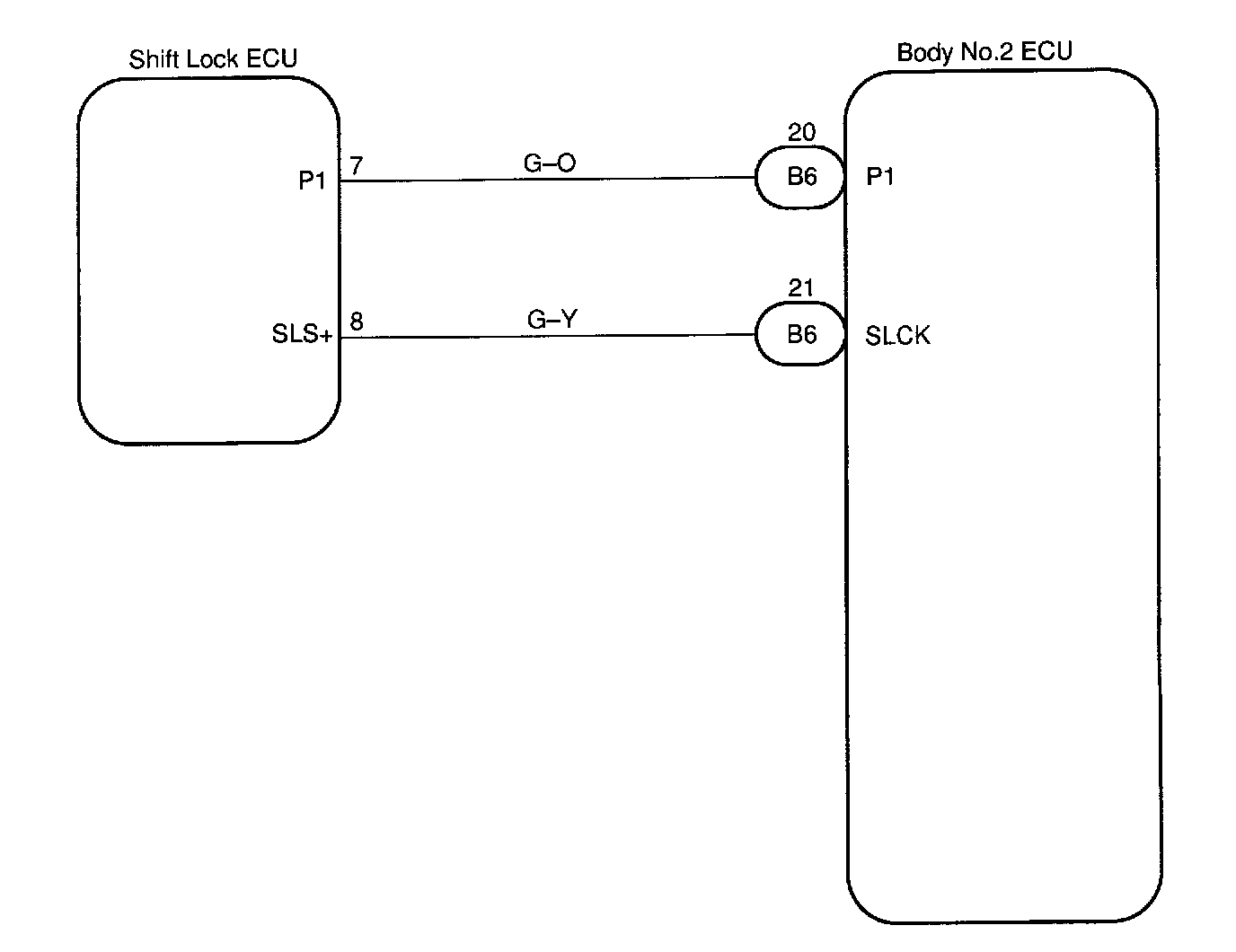

WIRING DIAGRAM

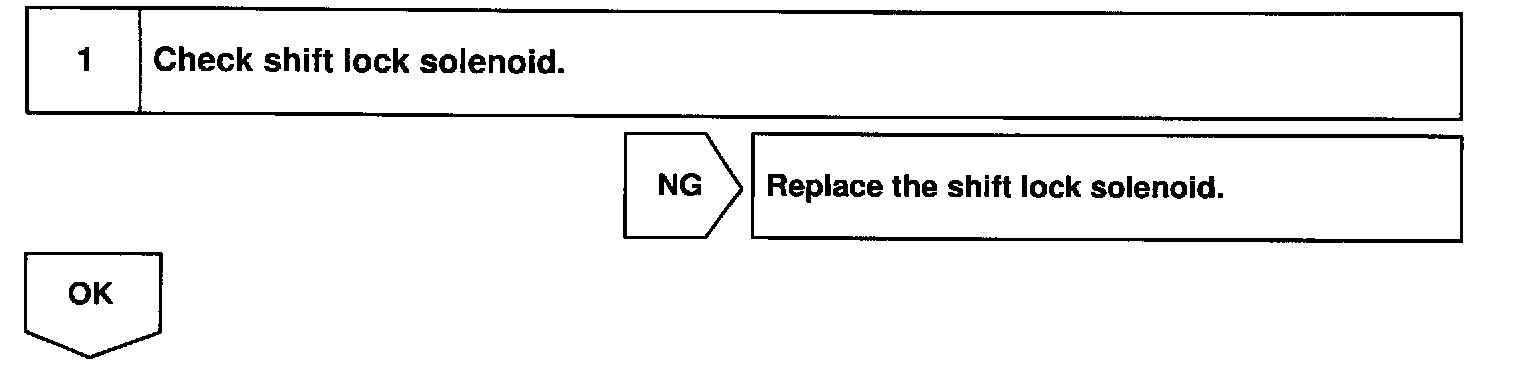

Step 1:

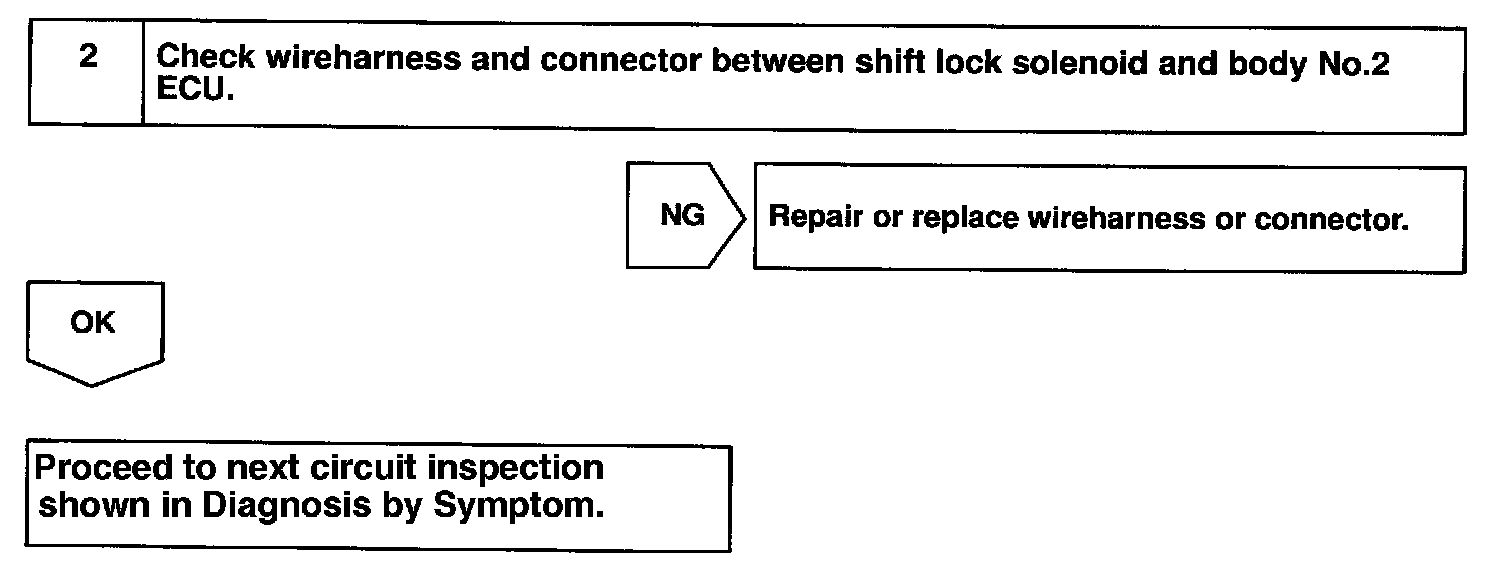

Step 2:




INSPECTION PROCEDURE
