Hazard Switch Circuit

CIRCUIT DESCRIPTION
Body No.1 ECU activates the flasher relay during warning of the theft deterrent system and flashers the hazard.

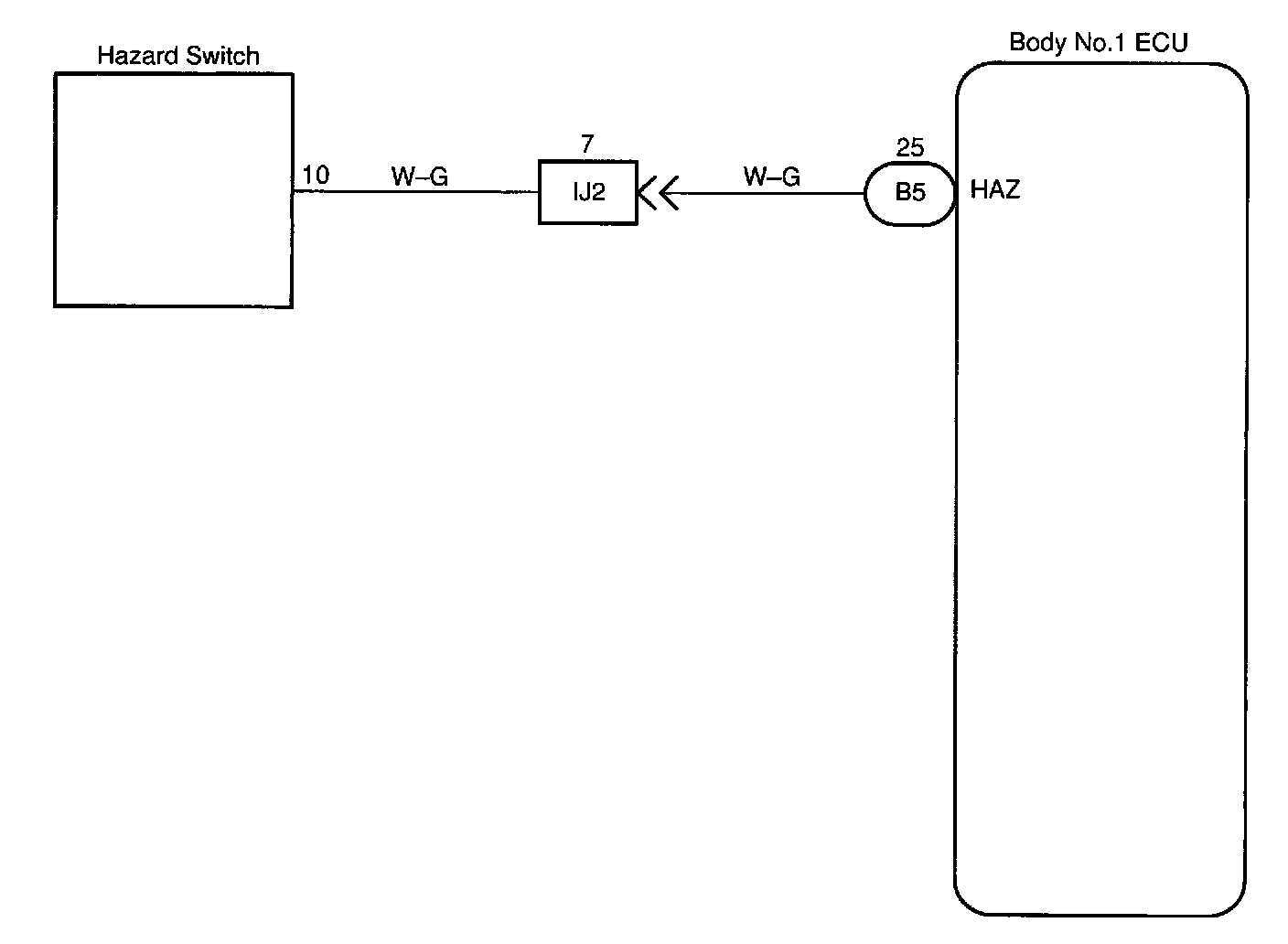

WIRING DIAGRAM

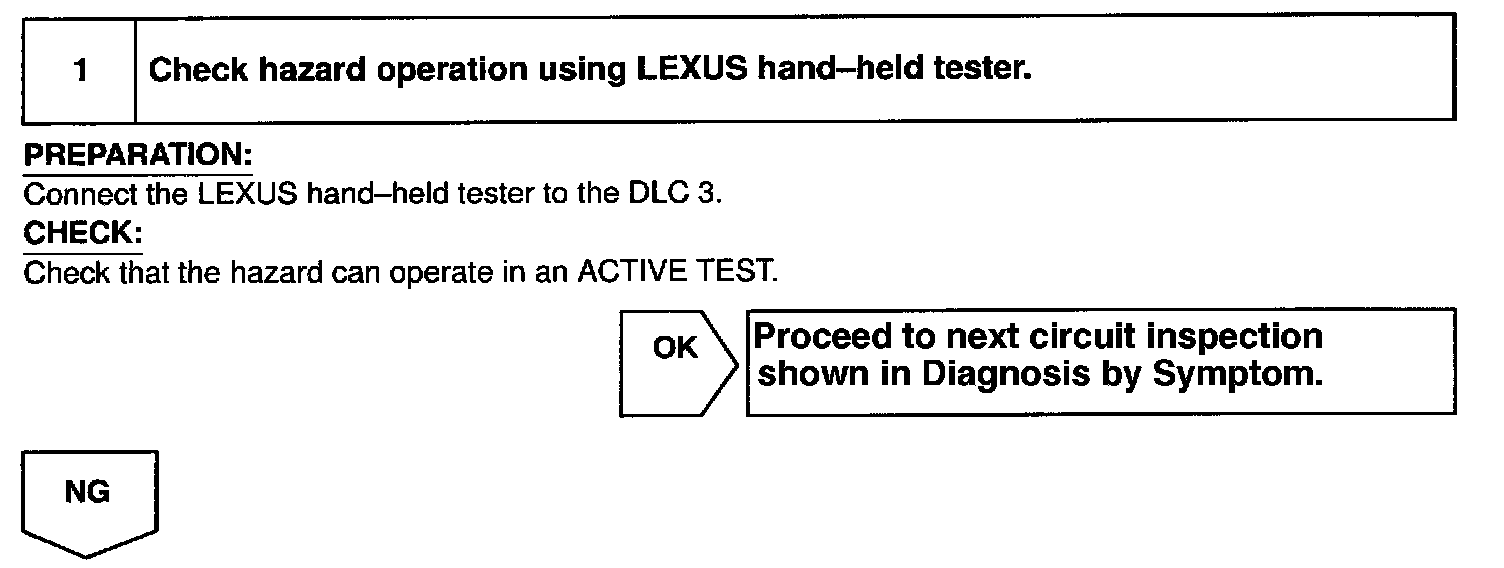

Step 1:

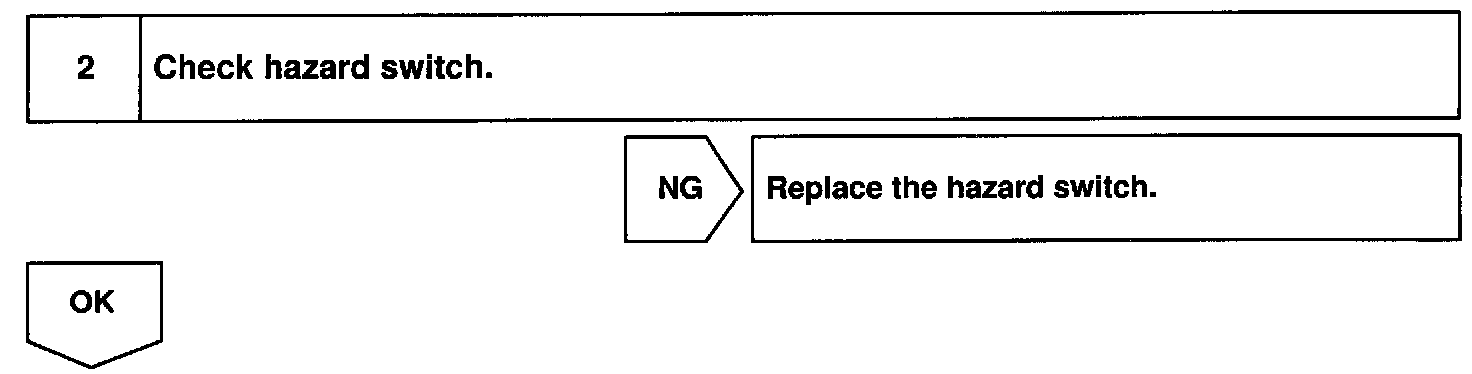

Step 2:

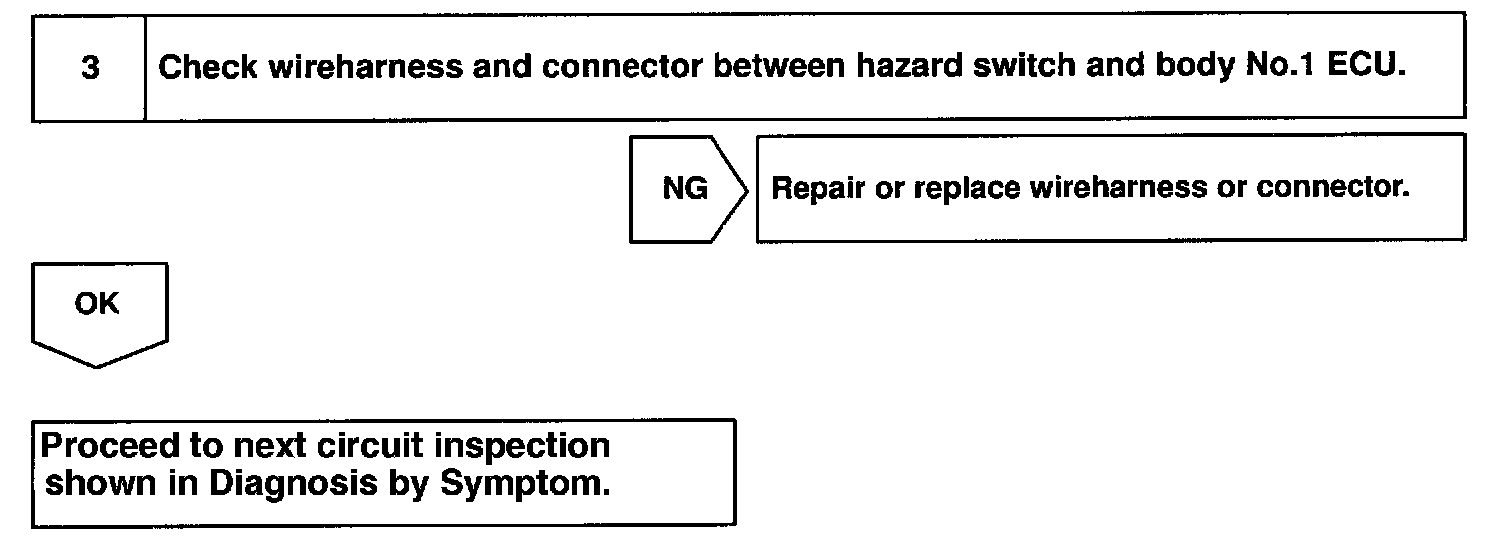

Step 3:




INSPECTION PROCEDURE

HINT: In case of using the LEXUS hand-held tester start the inspection from step 1 and in case of not using the LEXUS hand-held tester, start from step 2.
