Rear
REPLACEMENT1. REMOVE REAR WHEEL
2. REMOVE BRAKE CALIPER AND DISC

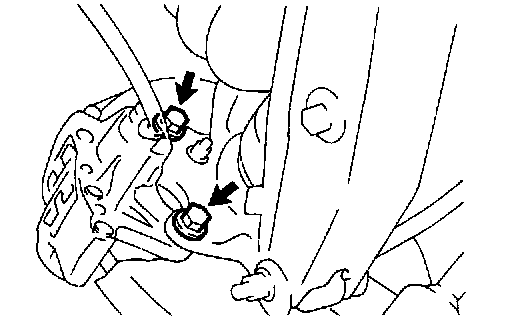

a. Remove the 2 bolts and remove the brake caliper from the axle carrier.
b. Support the brake caliper securely.
c. Remove the disc.
3. REMOVE HUB BOLT

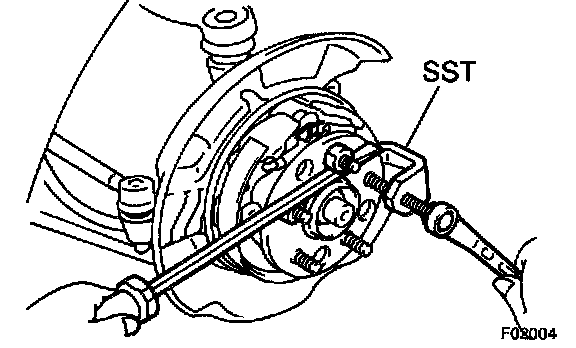

Using SST, remove the hub bolt.
SST 09628-10011
4. INSTALL HUB BOLT

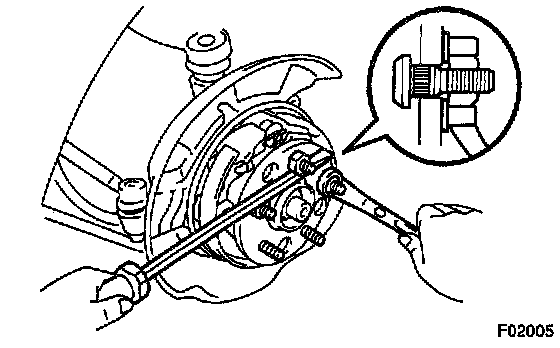

a. Install a washer and nut to the bolt, as shown in the illustration.
b. Turn the wheel nut to pull the hub bolt until the underside of the hub bolt head touches the axle hub.
5. INSTALL DISC AND BRAKE CALIPER
a. Install the disc.
b. Install the brake caliper and 2 bolts to the axle carrier.
Torque: 104 Nm (1,065 kgf-cm, 77 ft. lbs.)
6. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf.cm, 76 ft. lbs.)
