Stop Light Circuit

C1249 - Stop Light Switch Circuit

CIRCUIT DESCRIPTION

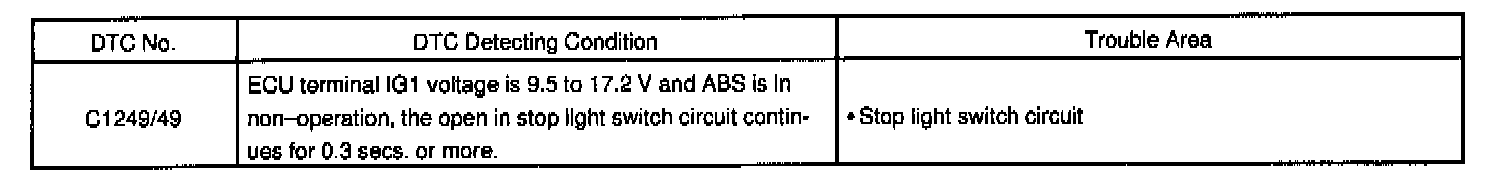

DETECTING CONDITIONS




WIRING DIAGRAM

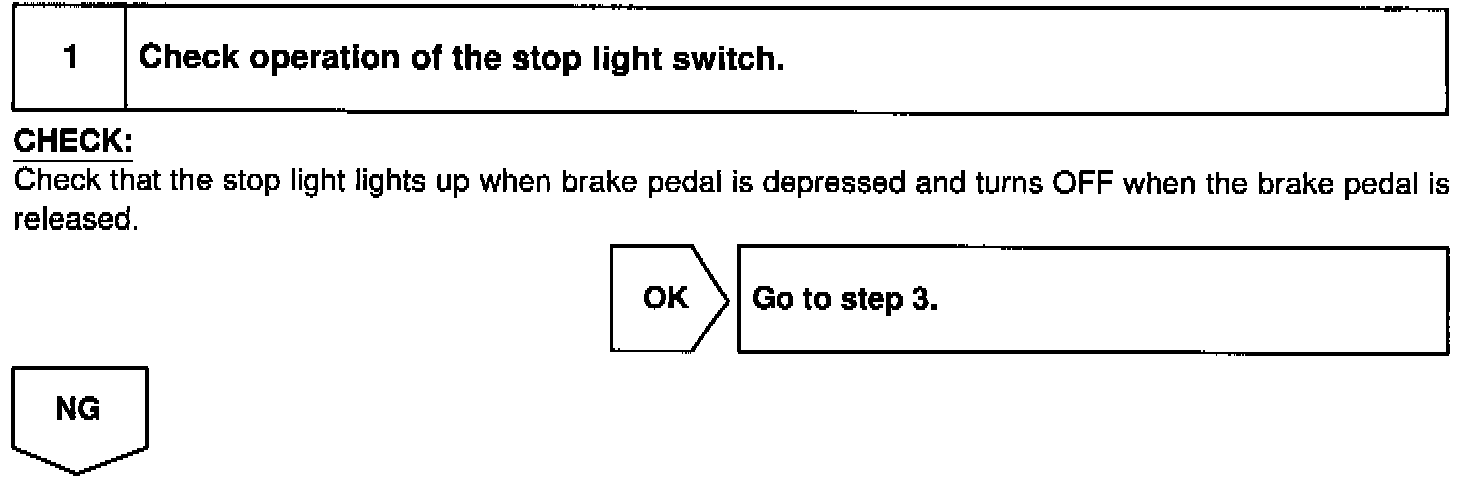

Step 1:

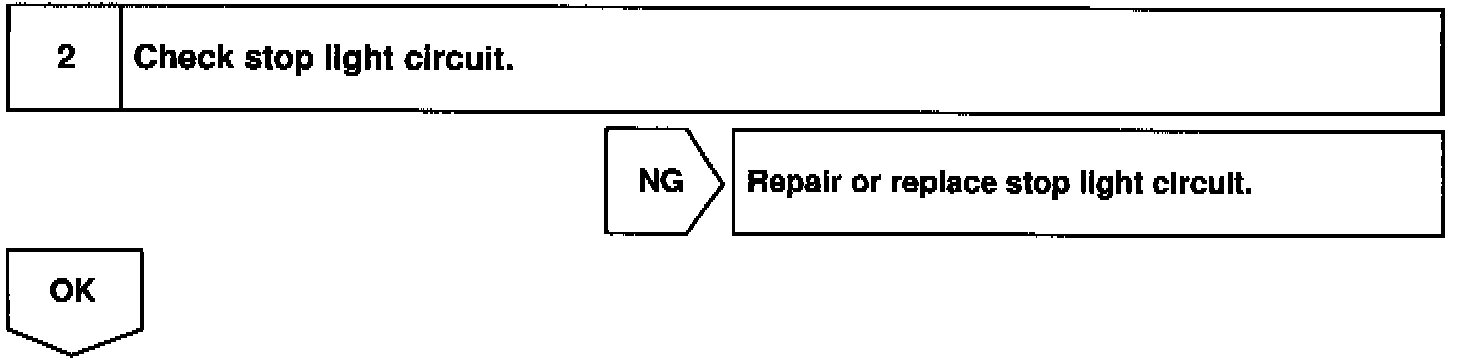

Step 2:

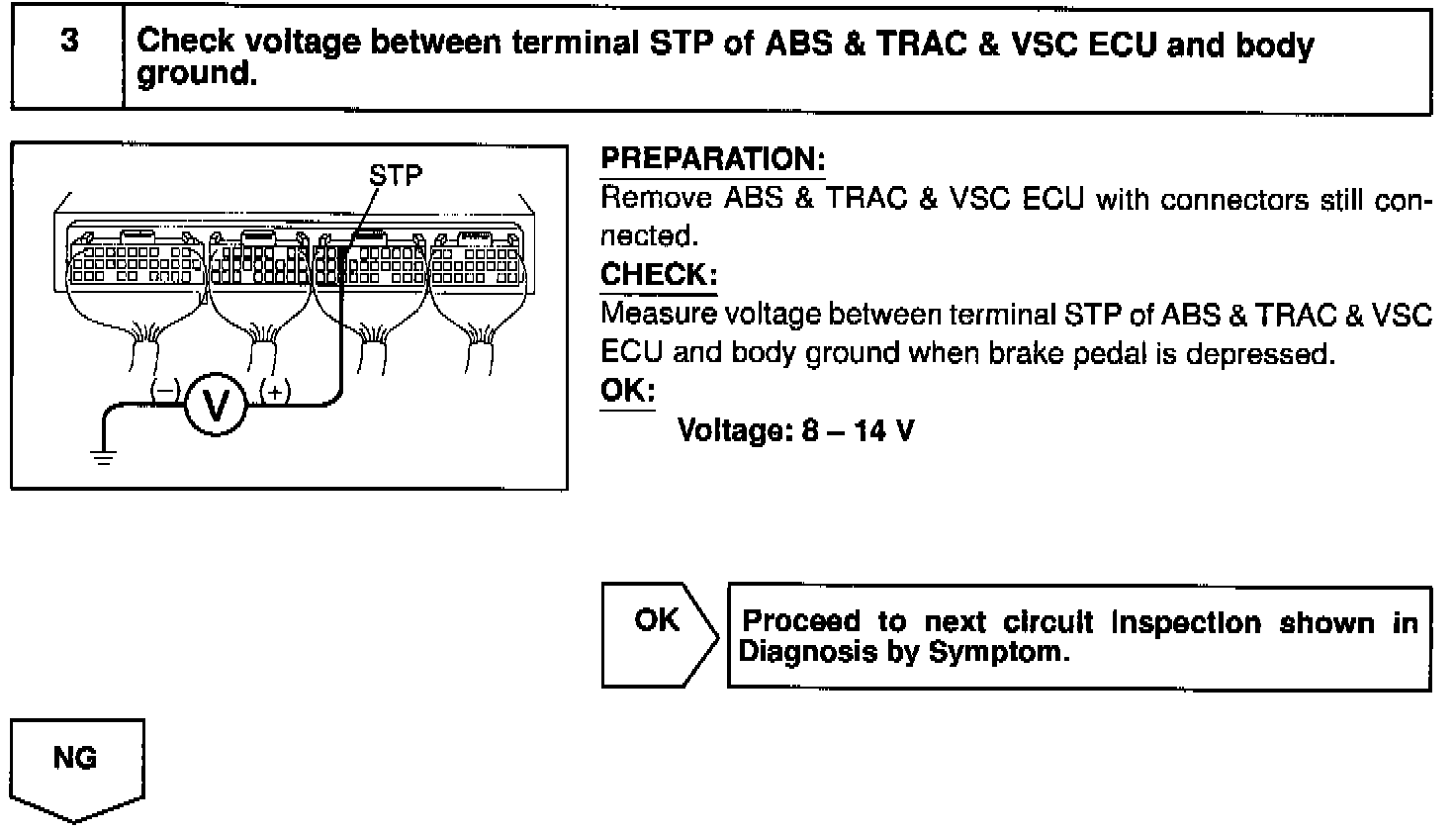

Step 3:

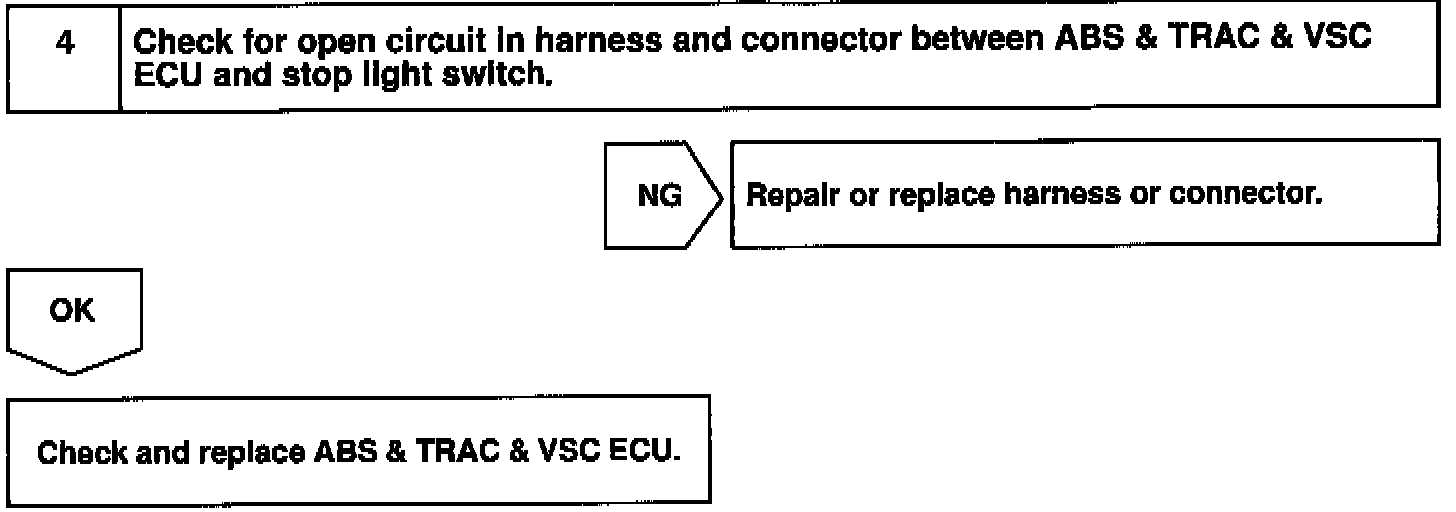

Step 4:




INSPECTION PROCEDURE
