Home >> Lexus >> 1999 >> GS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Component Tests and General Diagnostics >> Igniter Signal Circuit >> With LEXUS Hand-Held Tester

With LEXUS Hand-Held Tester

INSPECTION PROCEDURE

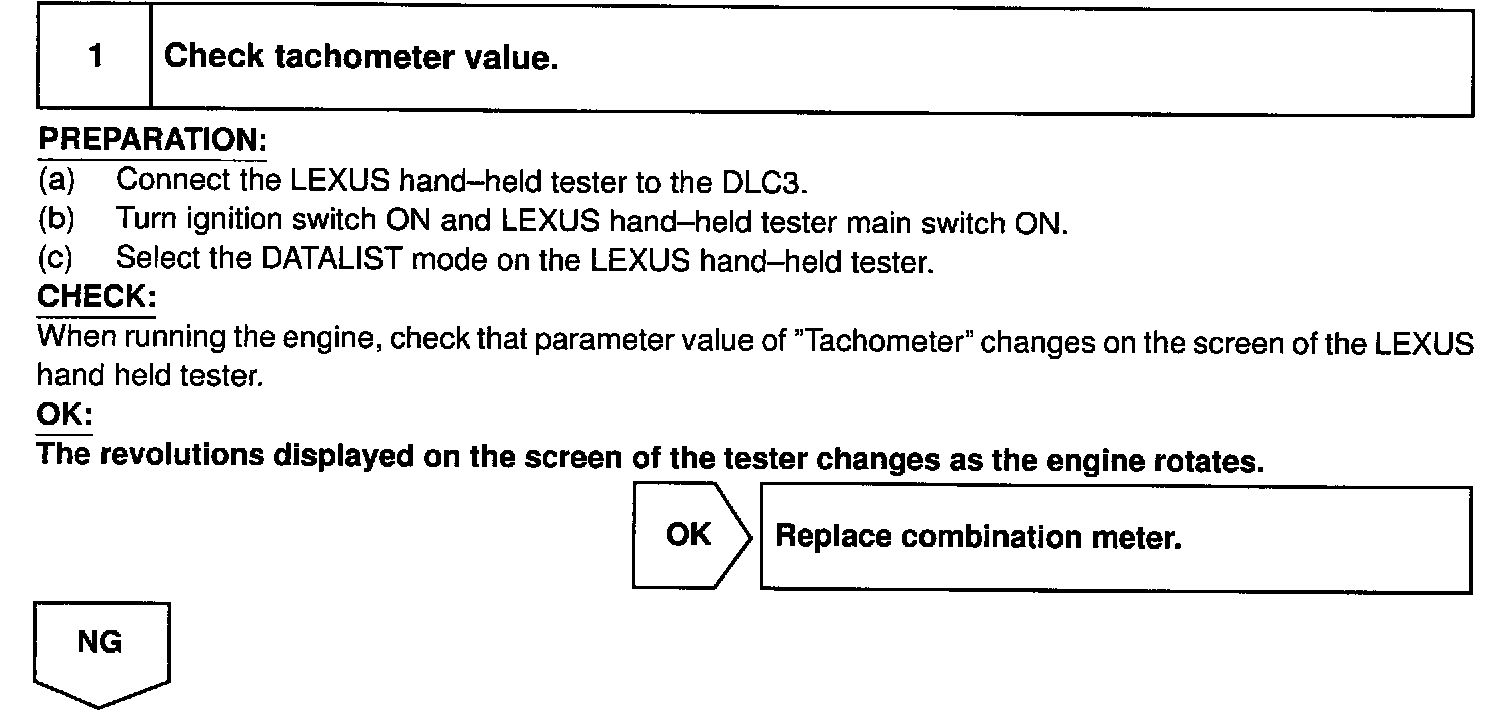

Step 1:

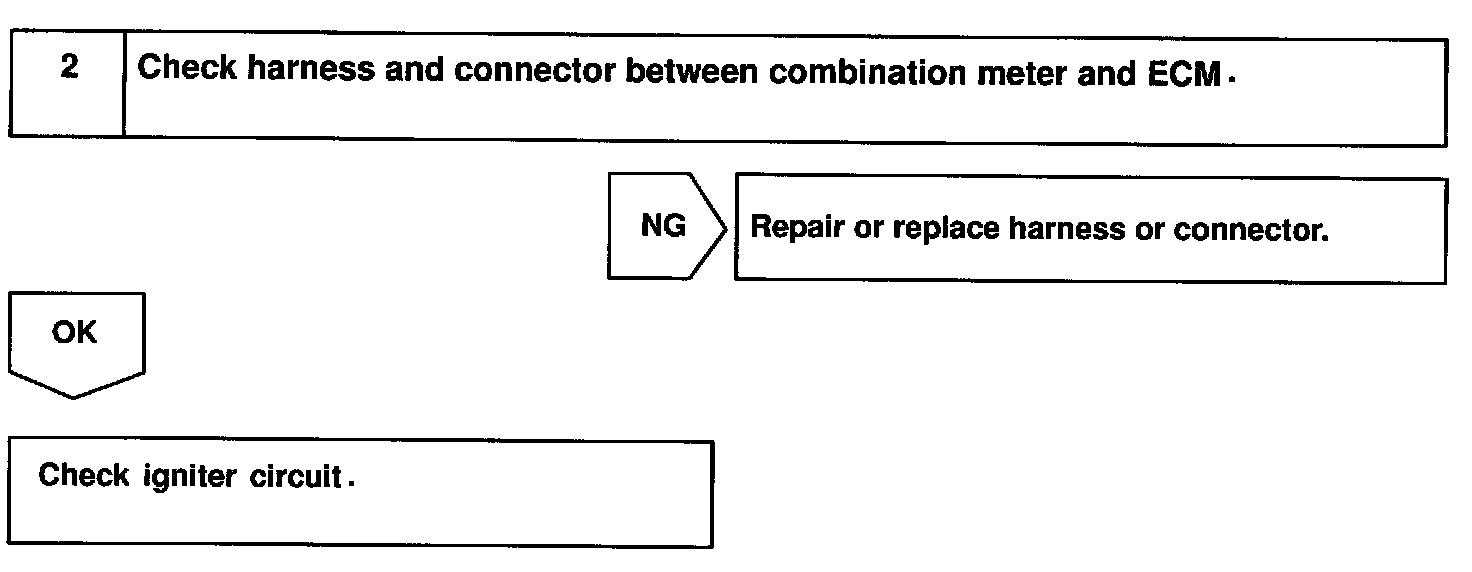

Step 2:




When using LEXUS hand-held tester:
