Bulb Circuit

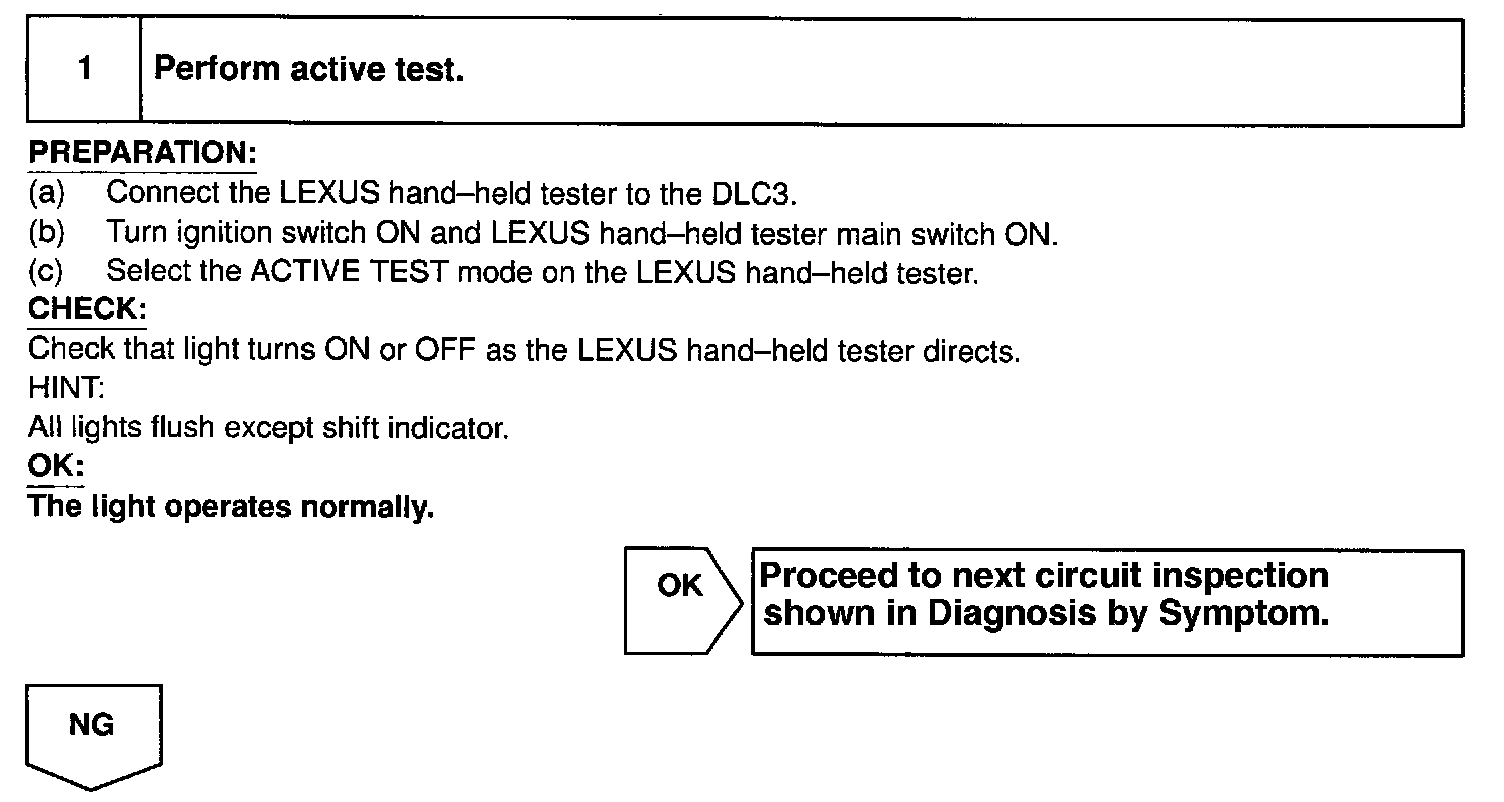

Step 1:

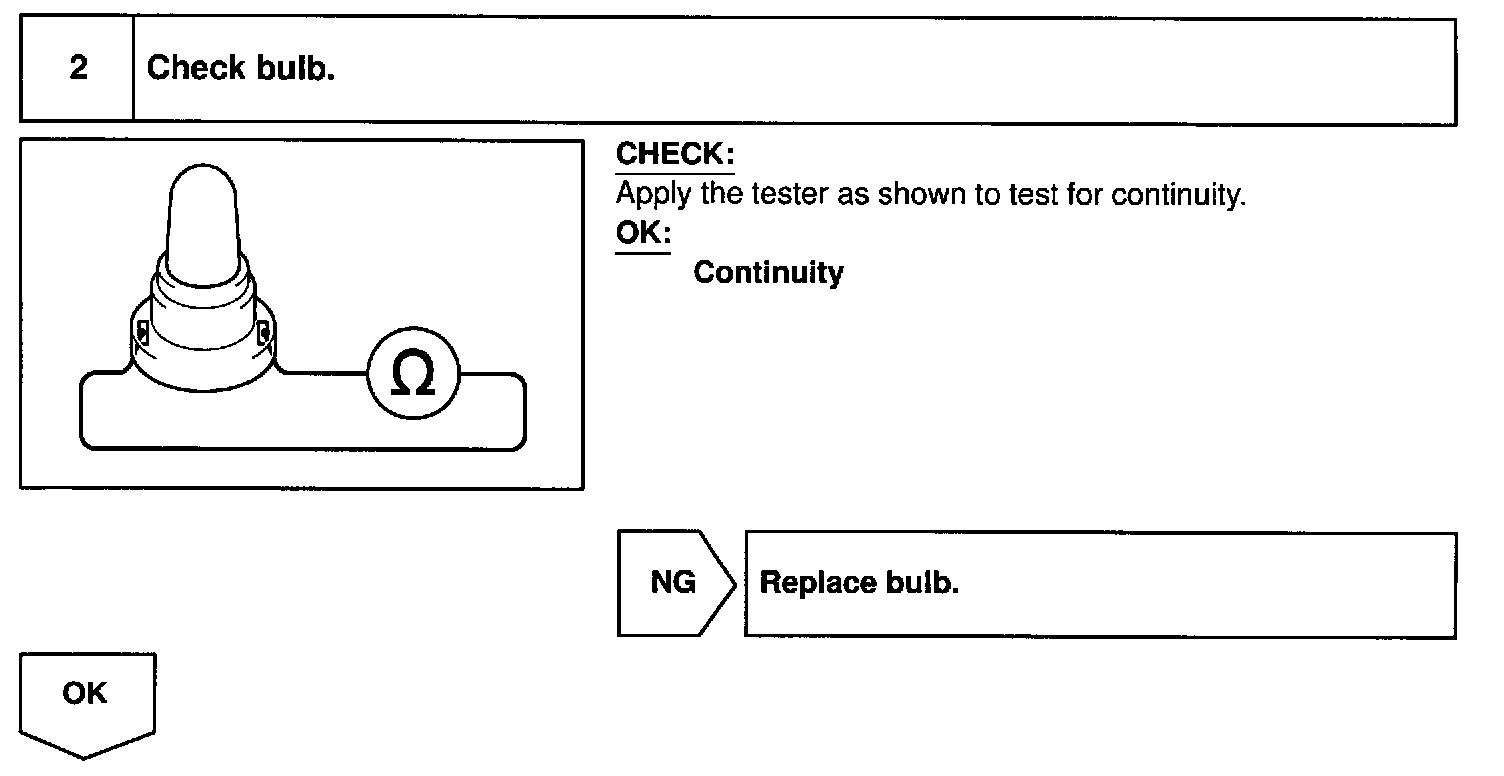

Step 2:

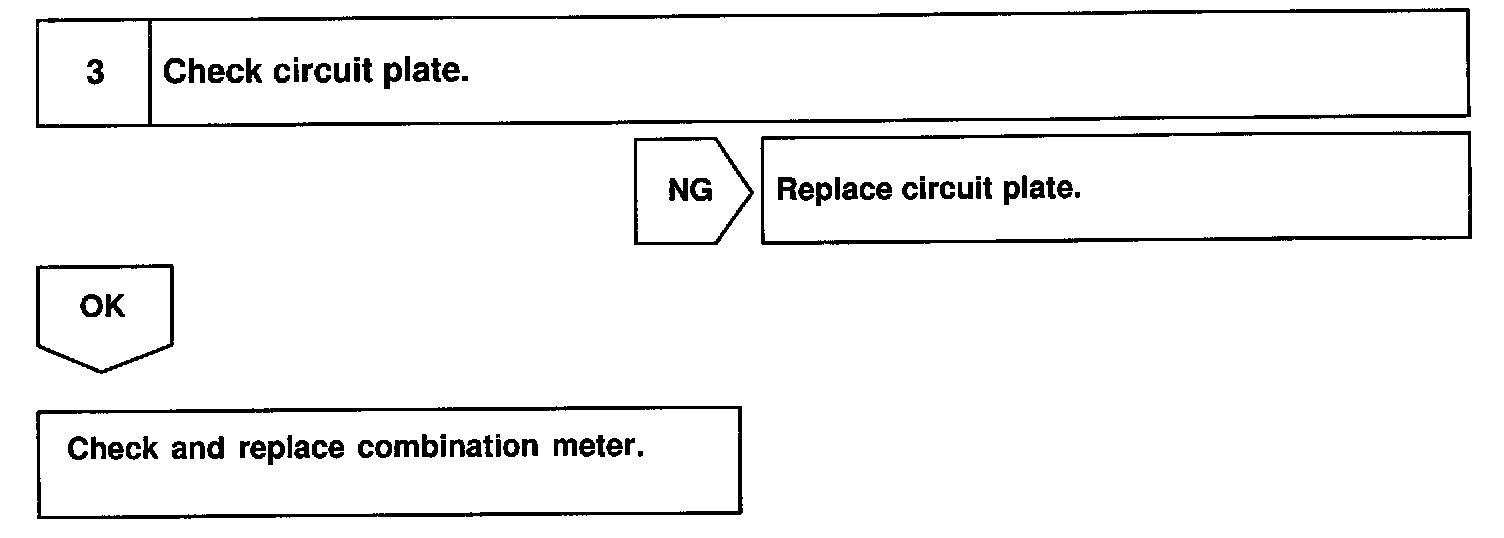

Step 3:




INSPECTION PROCEDURE

HINT: If there is not the LEXUS hand-held tester, beam with STEP 2.
