Component Tests and General Diagnostics

INSPECT SPEEDOMETER ON-VEHICLE

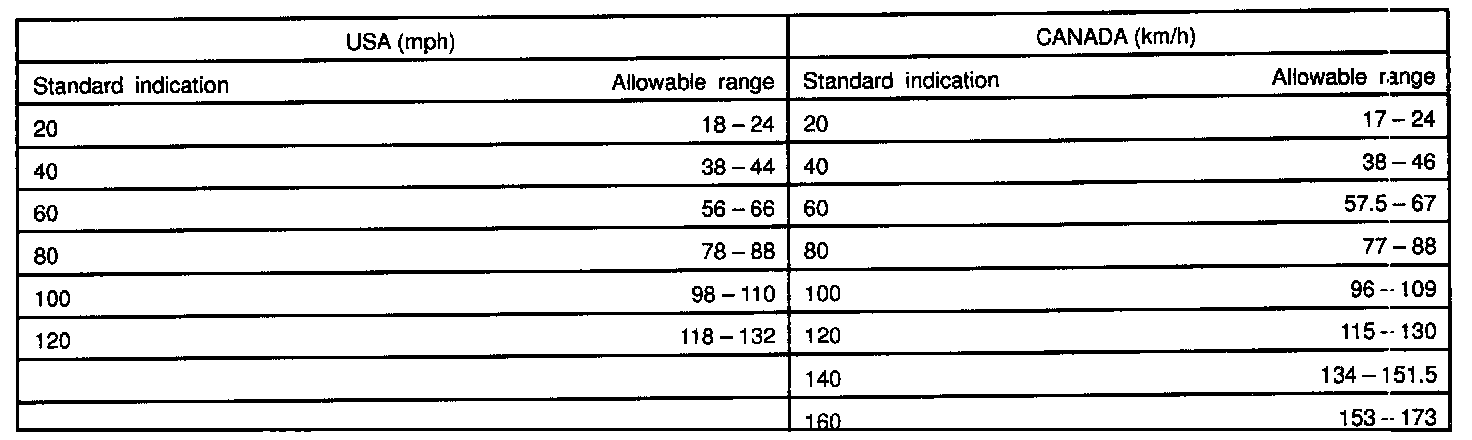

Using a speedometer tester, inspect the speedometer for allowable indication error and check the operation of the odometer.

HINT: Tire wear and tire over or under inflation will increase the indication error.

If error is excessive, replace the speedometer.







INSPECT SPEEDOMETER RESISTANCE

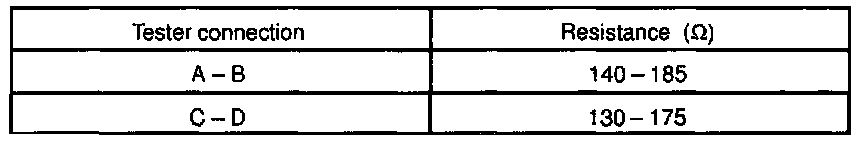

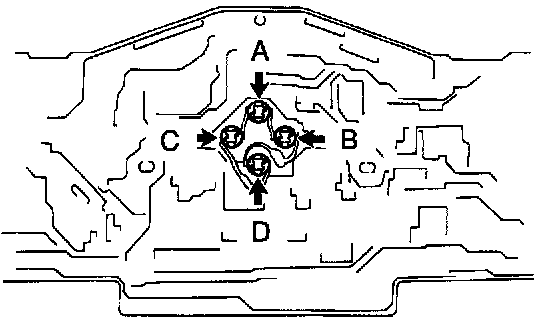

Measure the resistance between terminals with fixing pointer to the stopper.
If resistance value is not as the specified, replace the meter.
