Circuit Inspection

INSPECT COMBINATION METER CIRCUIT
Connector disconnected:

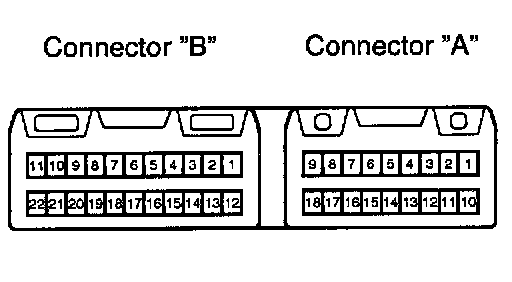

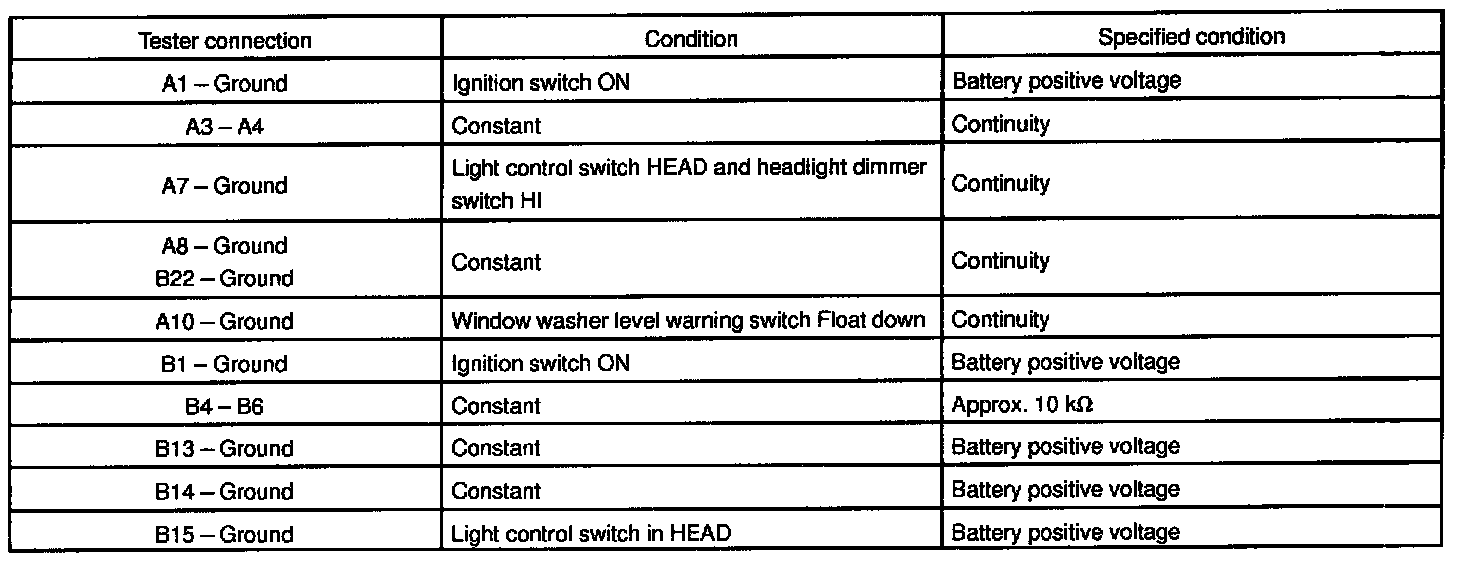

Disconnect connector "A" and "B" from the combination meter and inspect the connectors on the wire harness side as shown in the table.
If circuit is not as specified, wiring diagram and inspect the circuits connected to other parts.
