Test 2. - Clock Loses or Gains Time

HINT: Troubleshoot the clock according to the table below.

Troubleshooting No.

Clock loses or gains time 2

± 1.5 seconds/day

INSPECT CLOCK CIRCUIT

2. CLOCK LOSES OR GAIN TIME







a. Check that the battery positive voltage is 10 - 16 V.
If voltage is not as specified, replace the battery.
b. Inspect the error of the clock.
Allowable error (per day): ± 1.5 seconds
If the error exceeds the allowable error, replace the clock.
c. Check that the clock adjusting button is sticking in position and has failed to return.
If the error exceeds the allowable error, replace the clock.

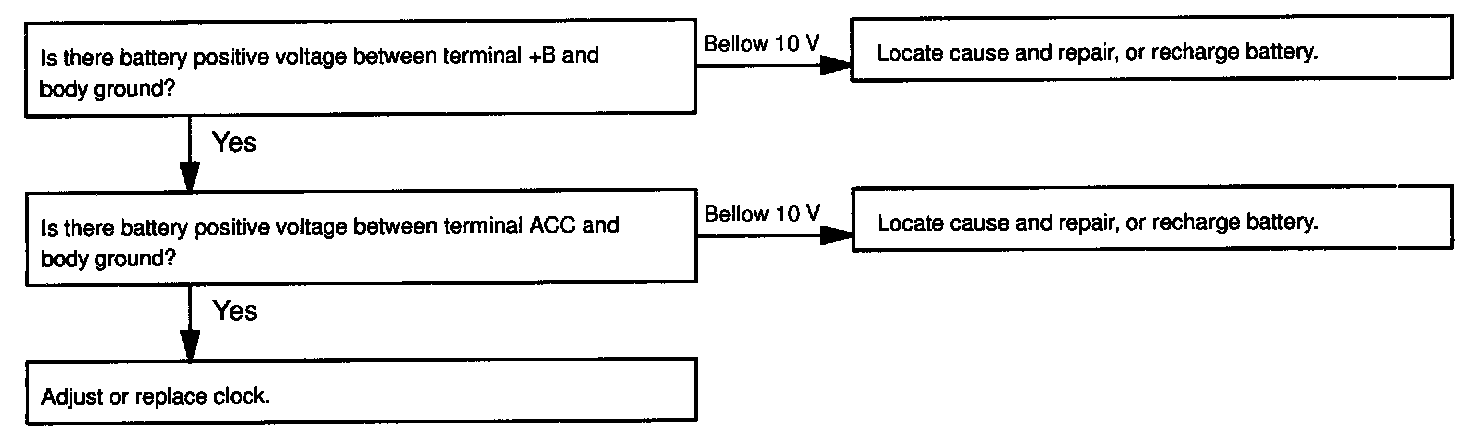

d. Troubleshoot the clock as follows.

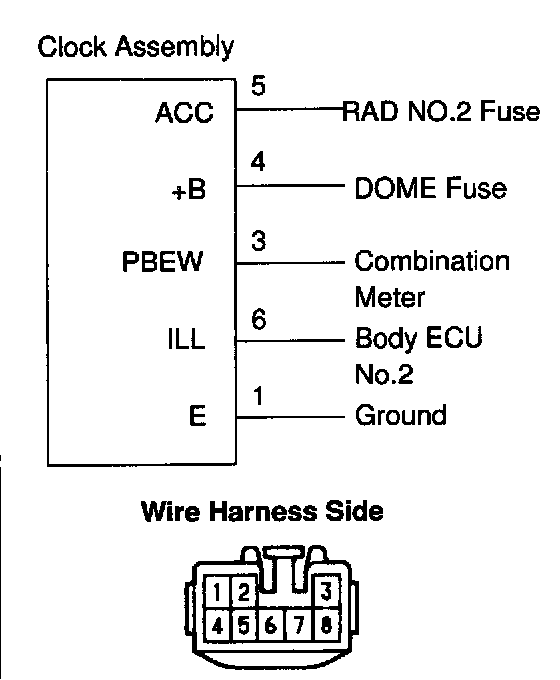

HINT: Inspect the connector on the wire harness side.
