Test 1. - Clock Will Not Operate

HINT: Troubleshoot the clock according to the table below.

Troubleshooting No.

Passenger Seat belt warning light does not light up 1
Clock will not operate 1

INSPECT CLOCK CIRCUIT

1. PASSENGER SEAT BELT WARNING LIGHT DOES NOT OPERATE, CLOCK WILL NOT OPERATE







a. Check that the battery positive voltage is 10 - 16 V.
If voltage is not as specified, replace the battery.
b Check that the DOME and RAD NO.2 fuses are not blown.
If the fuse is blown, replace the fuse and check for short.

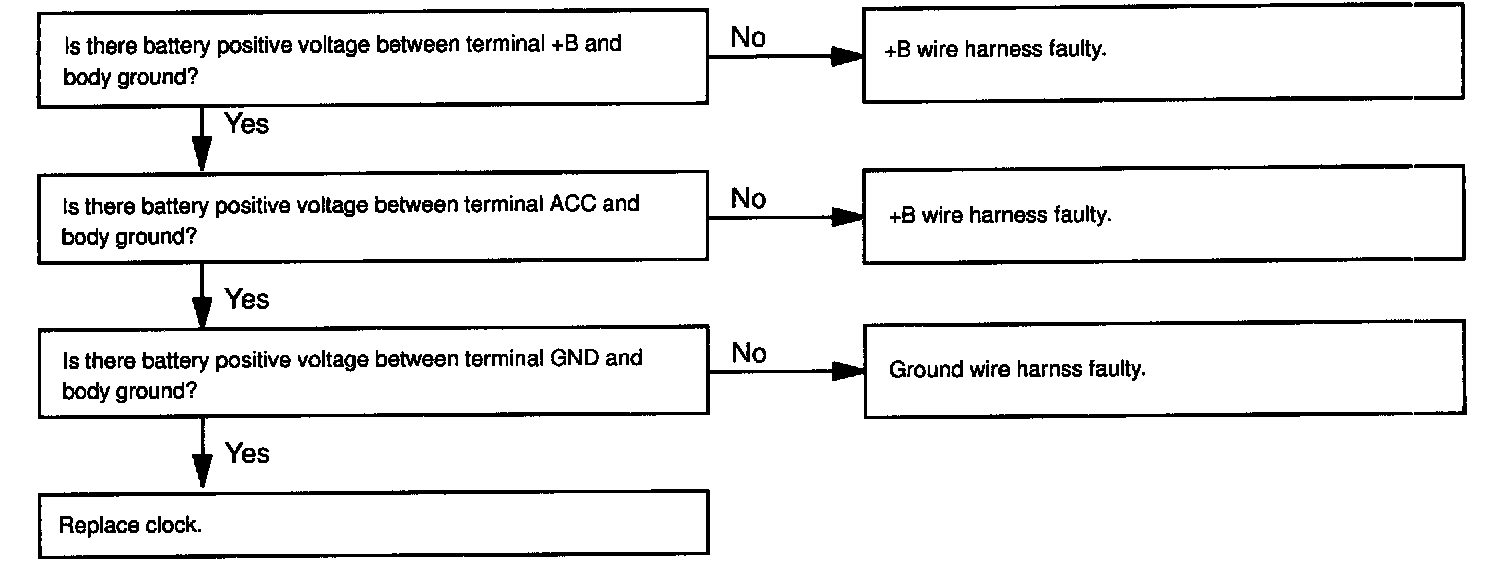

c. Troubleshoot the clock as follows.

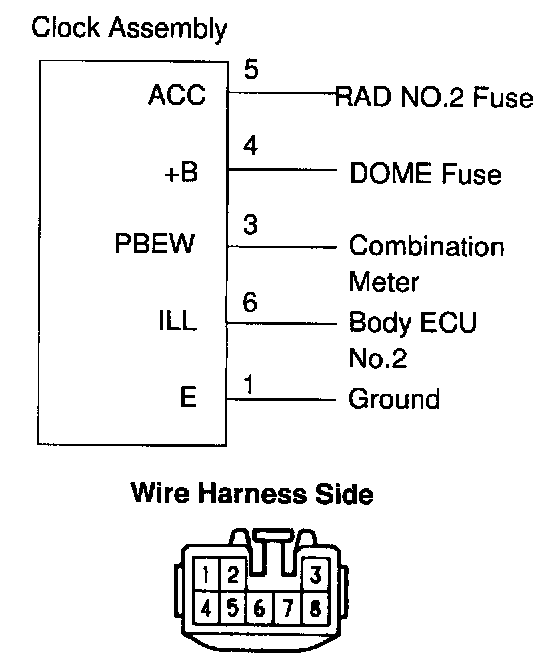

HINT: Inspect the connector on the wire harness side
