Solar Sensor: Description and Operation

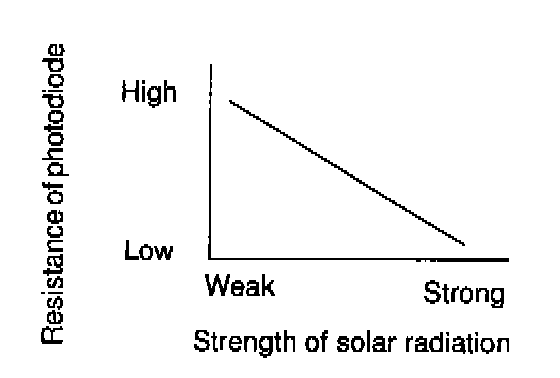

A photo diode in the
solar sensor
detects solar radiation and sends signals to the A/C control assembly.
