Condenser Fan: Testing and Inspection

1. INSPECT CONDENSER FAN OPERATION

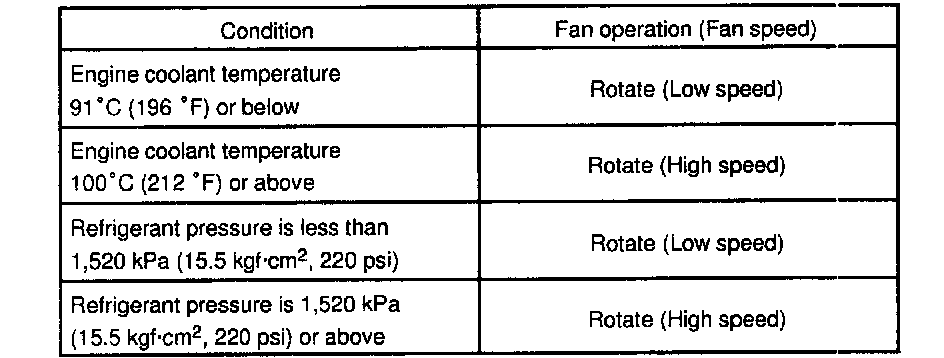

Inspect the fan operation, as shown in the chart below.
Test conditions:
- Ignition switch ON
- Blower speed control switch position "HI"
- Temperature control dial at "MAX. COOL"
- Install manifold gauge set"
- A/C switch ON
If operation is not as specified, proceed to the next inspection.




2. INSPECT CONDENSER FAN MOTOR OPERATION

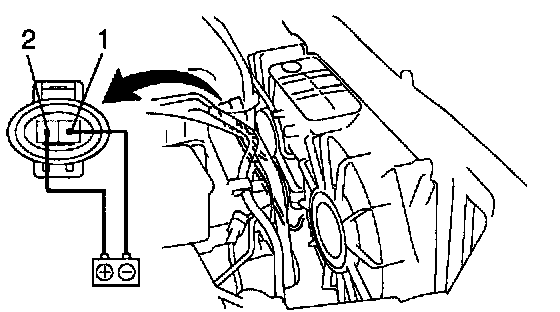

a. Disconnect the fan connector.
b. Connect the positive (+)lead from the battery to terminal 2 and negative (-)lead to terminal 1 then check that motor operations smoothly.
- If operation is not as specified, replace the fan motor.
- If operation is as specified, check the pressure switch, cooling fan relays and engine coolant temp. switch.
