Home >> Lexus >> 1999 >> GS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering Column

Steering Column

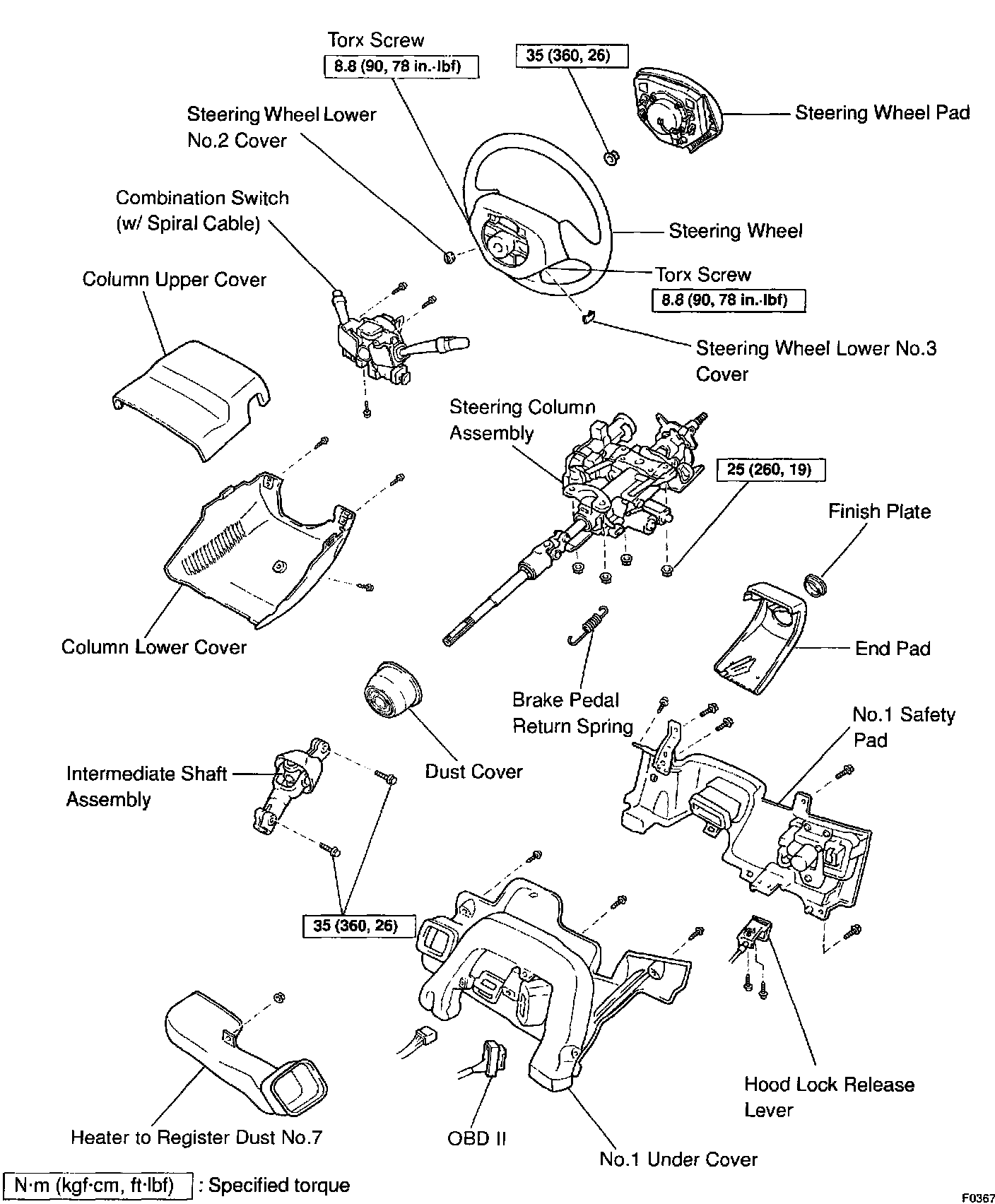

POWER TILT AND POWER TELESCOPIC STEERING COLUMN ASSEMBLY AND RELATED COMPONENTS





POWER TILT AND POWER TELESCOPIC STEERING COLUMN
