Speed Sensor, Front

REMOVAL
1. REMOVE FRONT WHEEL

Torque: 103 Nm (1,050 kgf.cm, 76 ft. lbs.)





2. DISCONNECT SPEED SENSOR CONNECTOR





3. REMOVE SPEED SENSOR
a. Remove the resin clip and 2 clamp bolts holding the sensor harness to the body.

Torque: 5.0 Nm (51 kgf.cm, 44 inch lbs.)

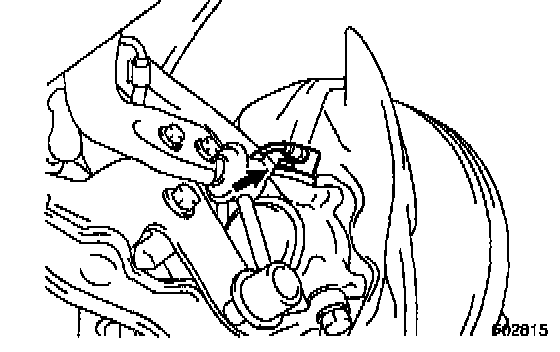

b. Remove the bolt and speed sensor from the steering knuckle.

Torque: 8.0 Nm (82 kgf.cm, 71 inch lbs.)


INSTALLATION
Installation is in the reverse order of removal.

HINT: After installation, check speed sensor signal.
