ABS W/Hydraulic Brake Booster Power Supply System

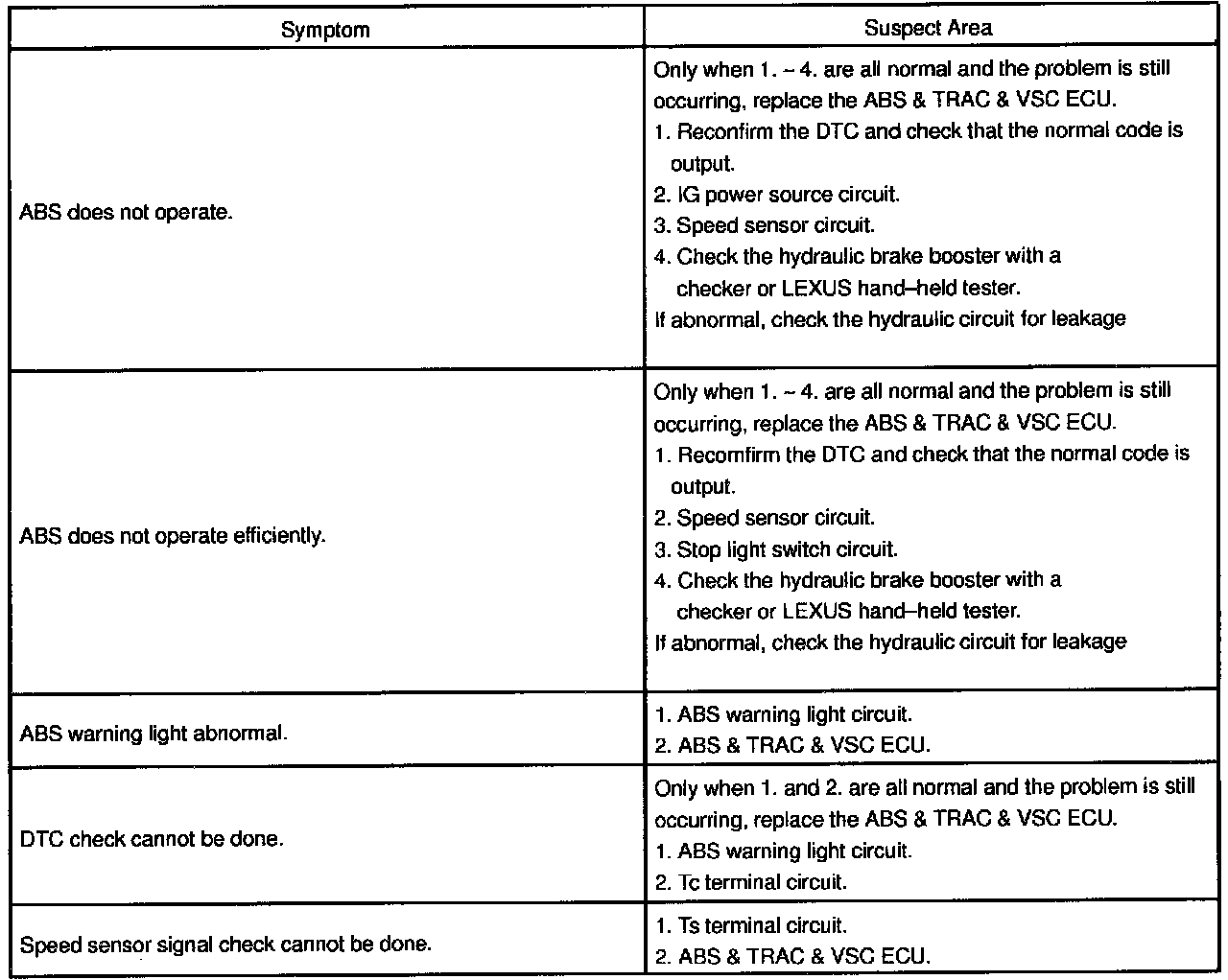

If a normal code is displayed during the DTC check but the problem still occurs, check the circuits for each problem symptom in the order given in the table.

NOTE: When replacing ABS & TRAC & VSC ECU, sensor or etc., turn the ignition switch OFF.
