ABS W/Hydraulic Brake Booster Power Supply System

CIRCUIT DESCRIPTION

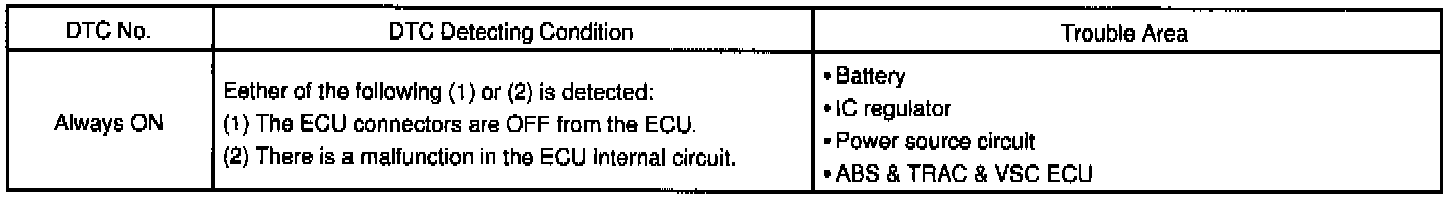

DETECTING CONDITIONS

HINT: There is a case that LEXUS hand-held tester cannot be used when ECU is abnormal.

Fail safe function:
If trouble occurs in the ECU, the ECU cuts off current to the ABS solenoid relay and prohibits ABS & TRAC & VSC controls and the brake system becomes normal. When fail safe function in ABS system is activated, "VSC" warning light and "VSC OFF" indicator light tight up.

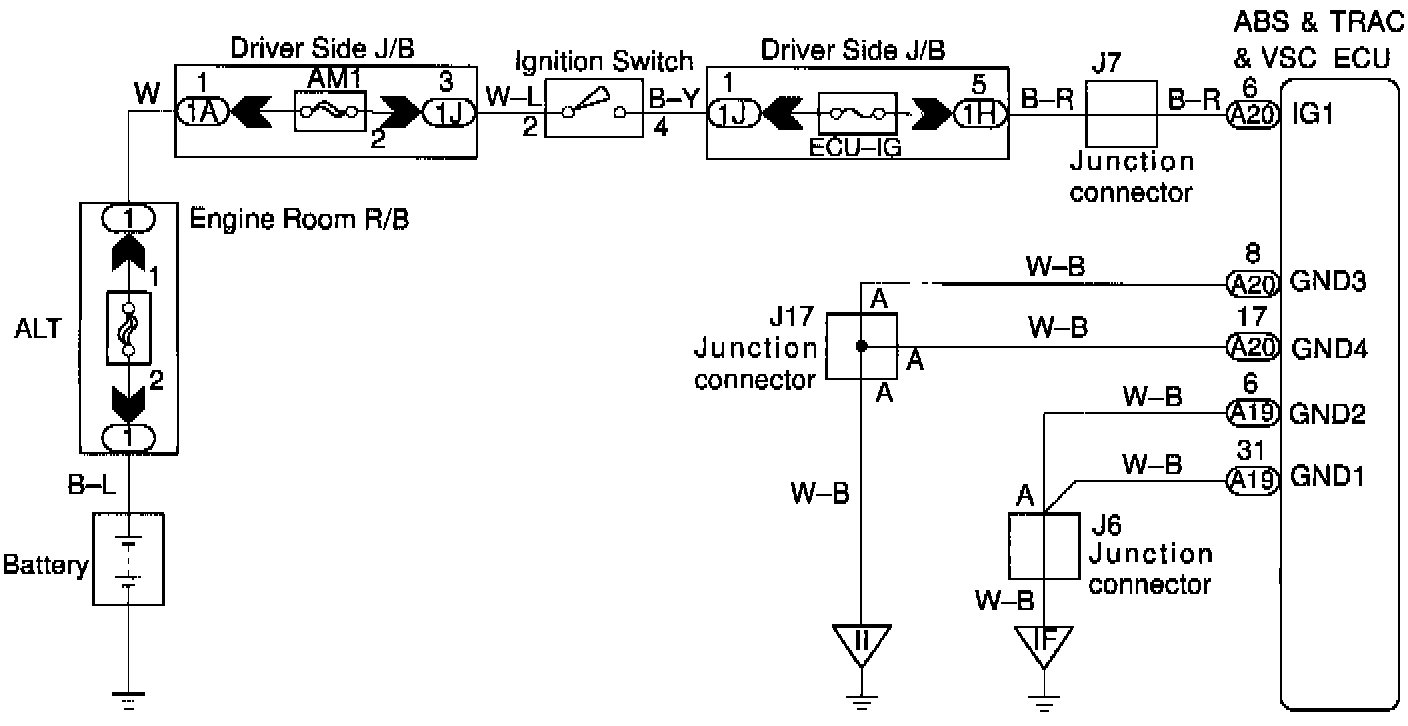

WIRING DIAGRAM

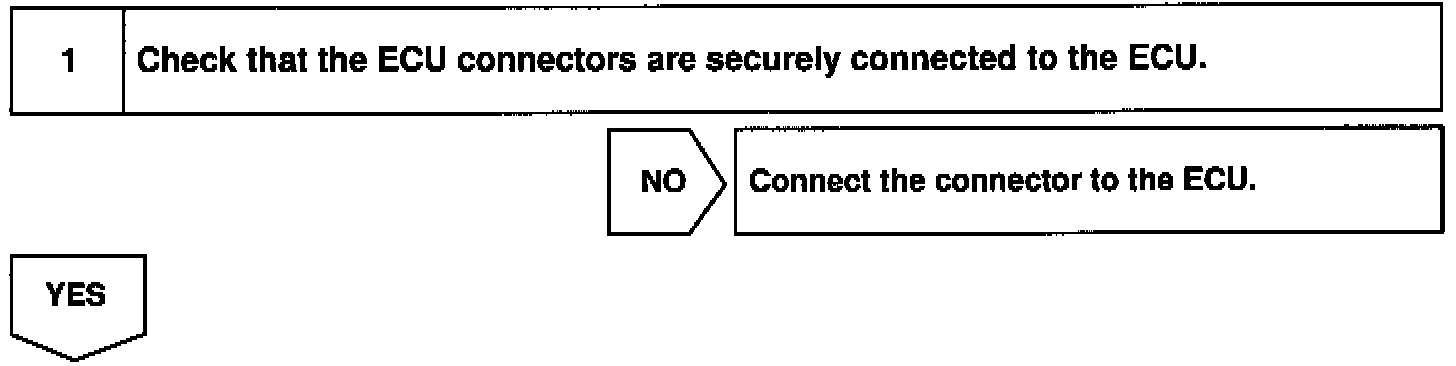

Step 1:

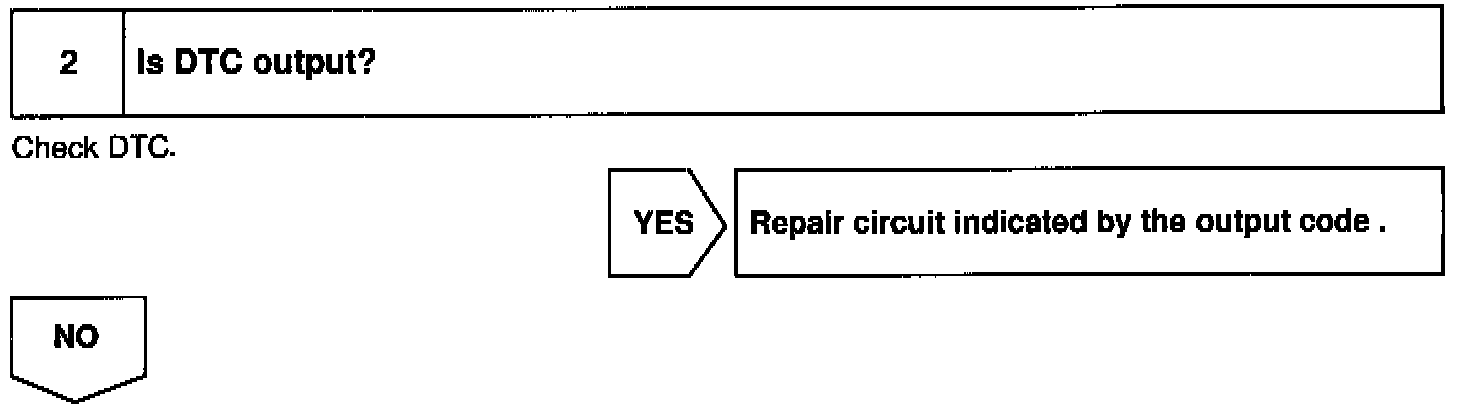

Step 2:

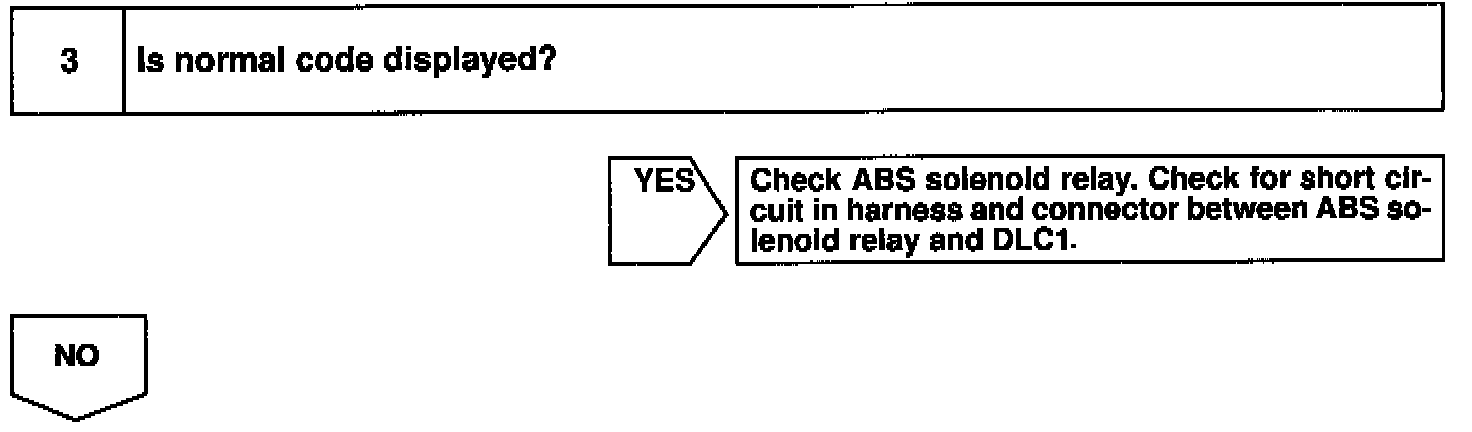

Step 3:

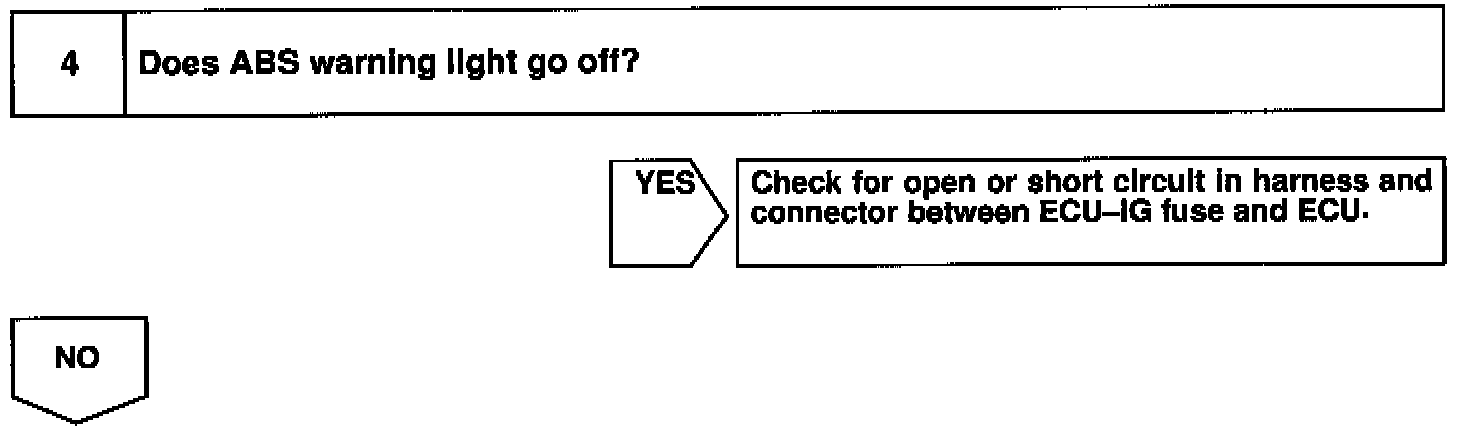

Step 4:

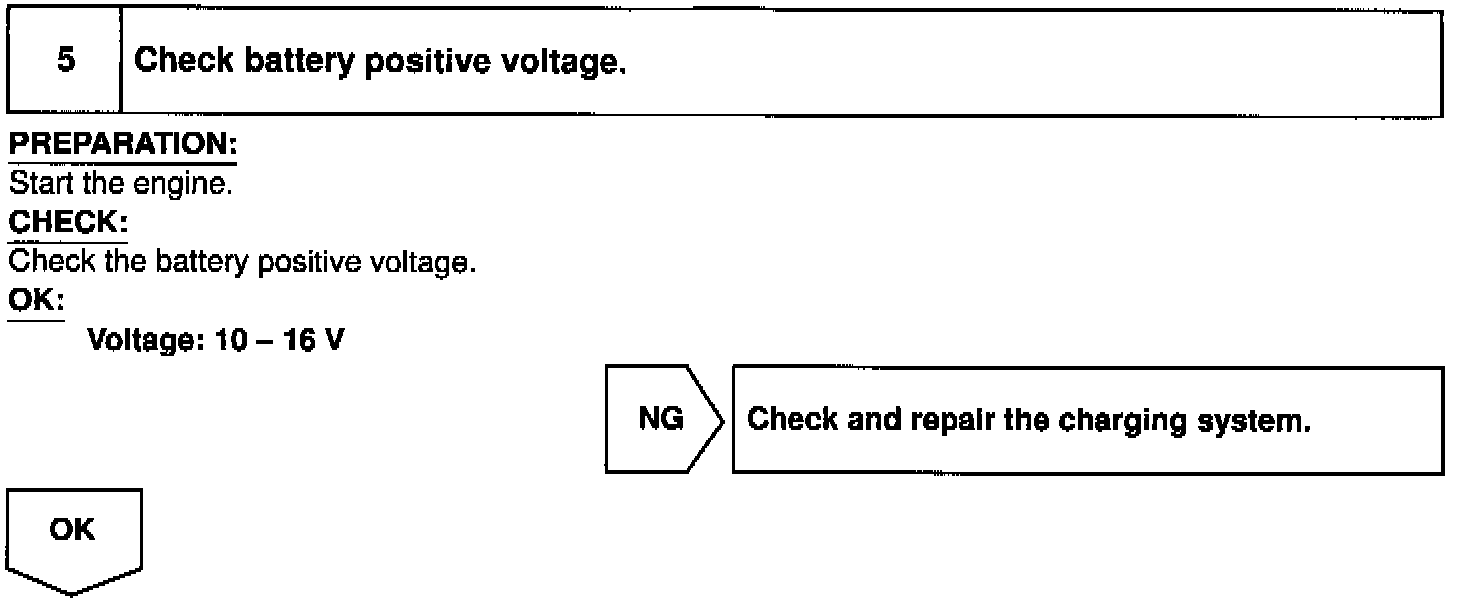

Step 5:

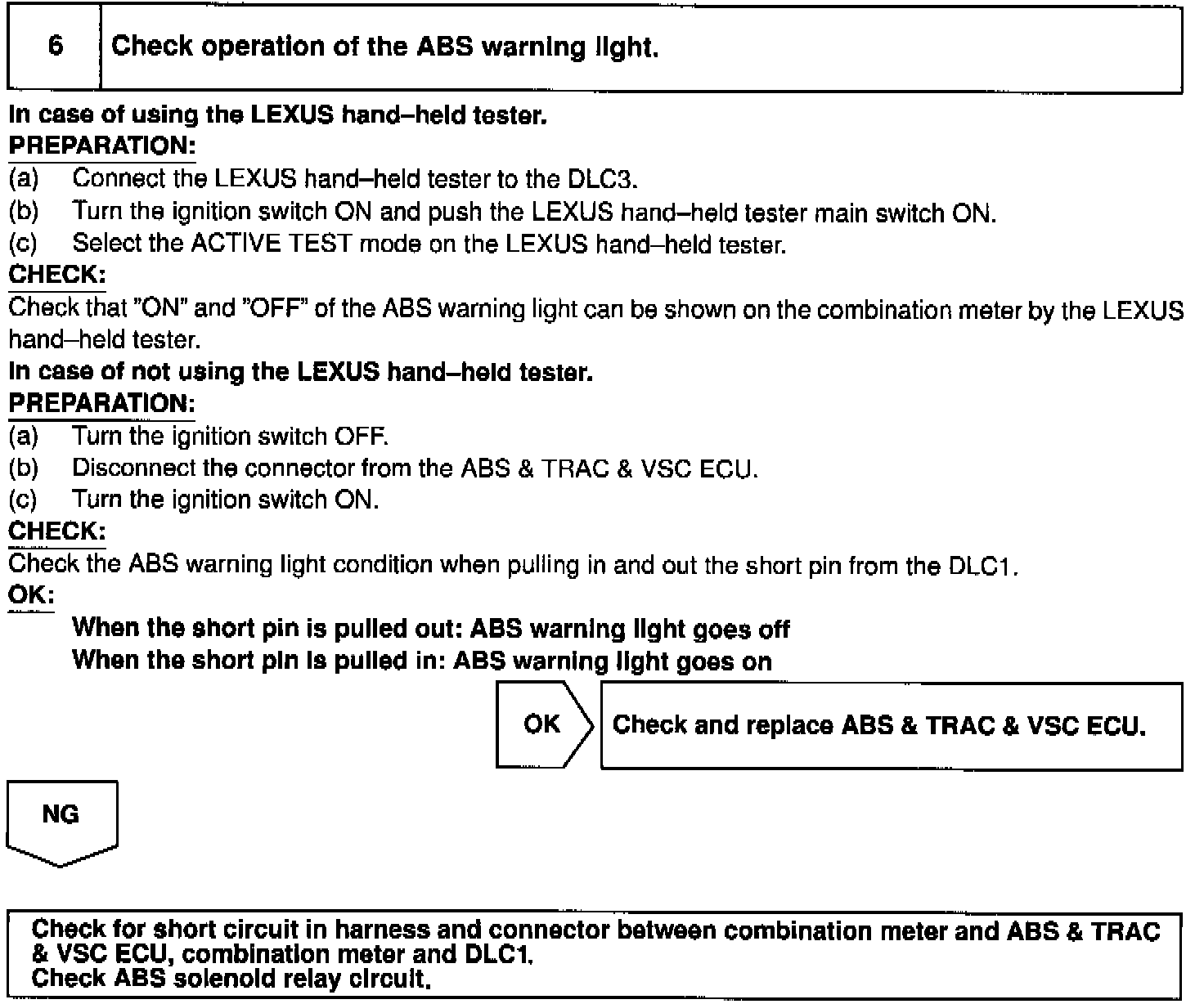

Step 6:

INSPECTION PROCEDURE
