FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Lexus
>>
1999
>>
GS 300 L6-3.0L (2JZ-GE)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Reading and Clearing Diagnostic Trouble Codes
>>
ABS W/Vehicle Skid Control (VSC)
>>
Clearing Trouble Codes
>>
With Manufacturer Scan Tool
With Manufacturer Scan Tool
1.

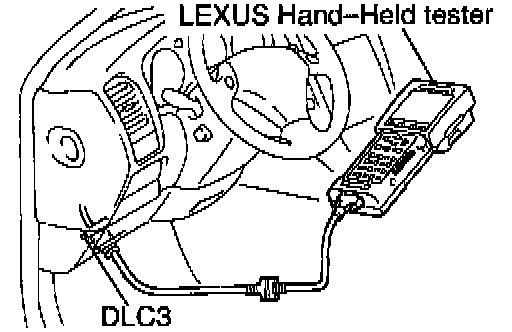

Hook up the LEXUS hand-held tester to the DLC3.
2.
Turn the ignition switch
ON
.
3.
Operate the LEXUS hand-held tester to erase the codes.
(See LEXUS hand-held tester operator's manual.)
