SLIP Indicator Light Circuit

CIRCUIT DESCRIPTION
The SLIP indicator blinks during TRAC & VSC operation.

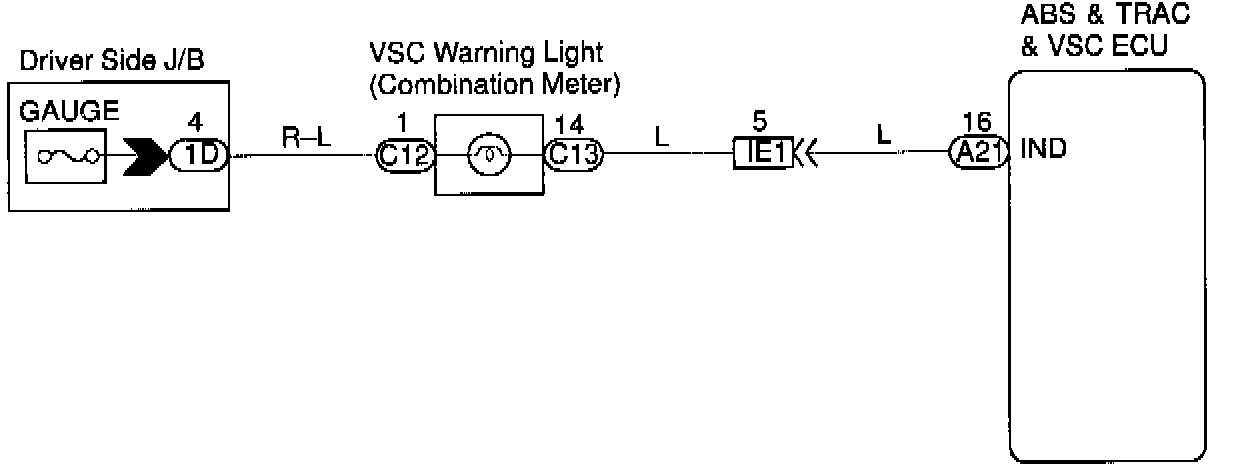

WIRING DIAGRAM

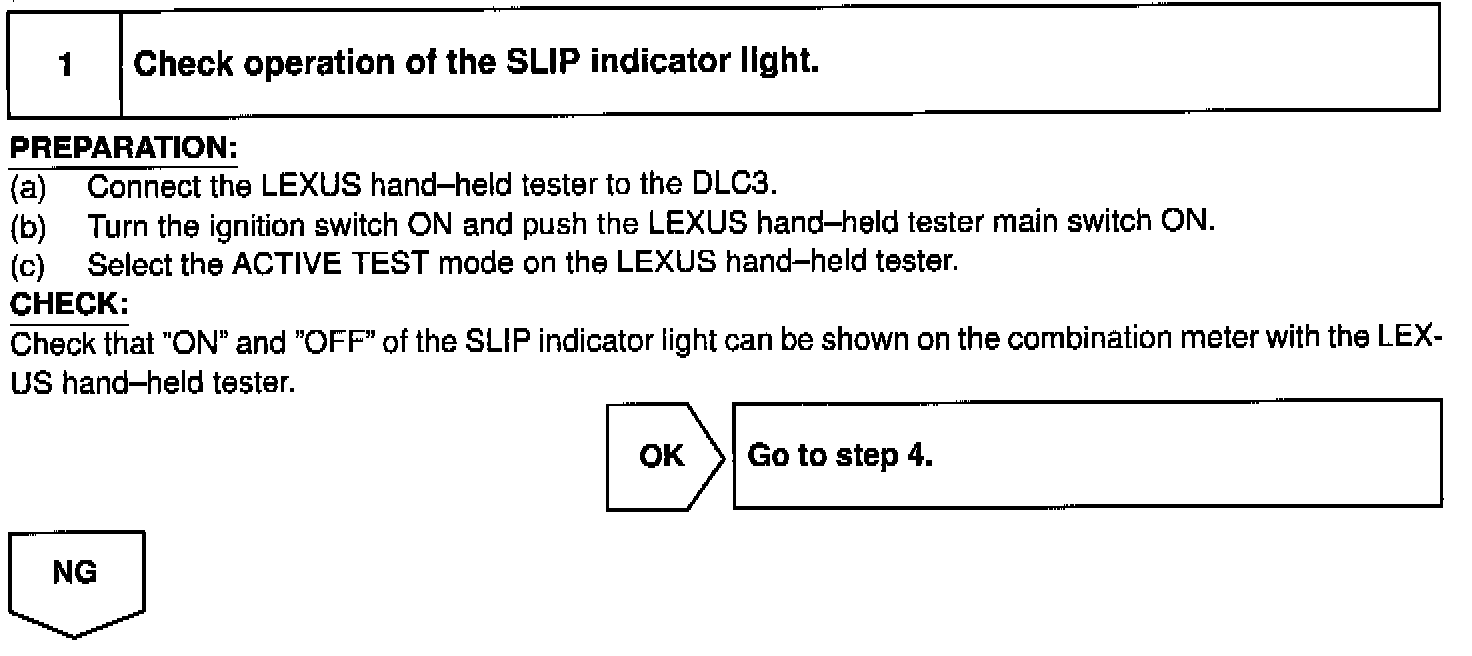

Step 1:

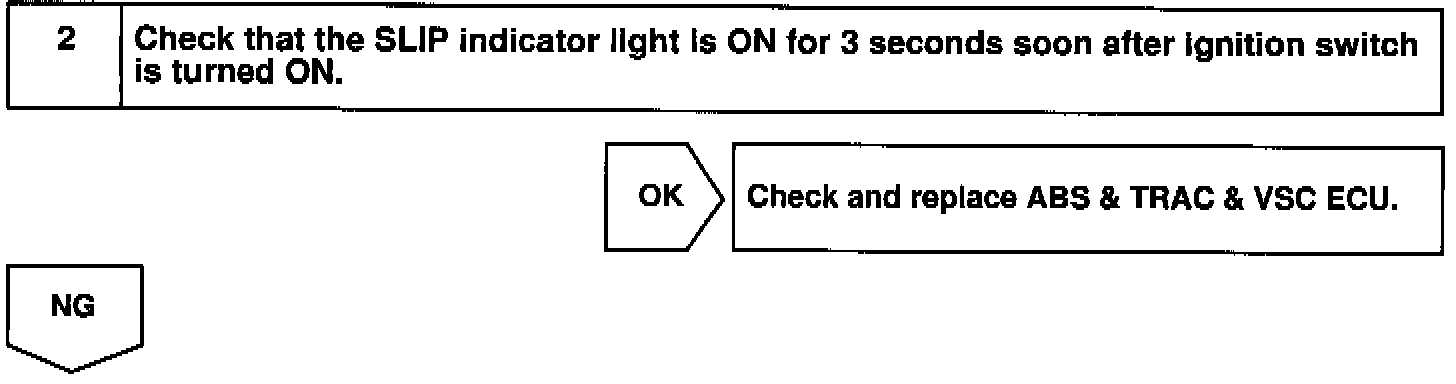

Step 2:

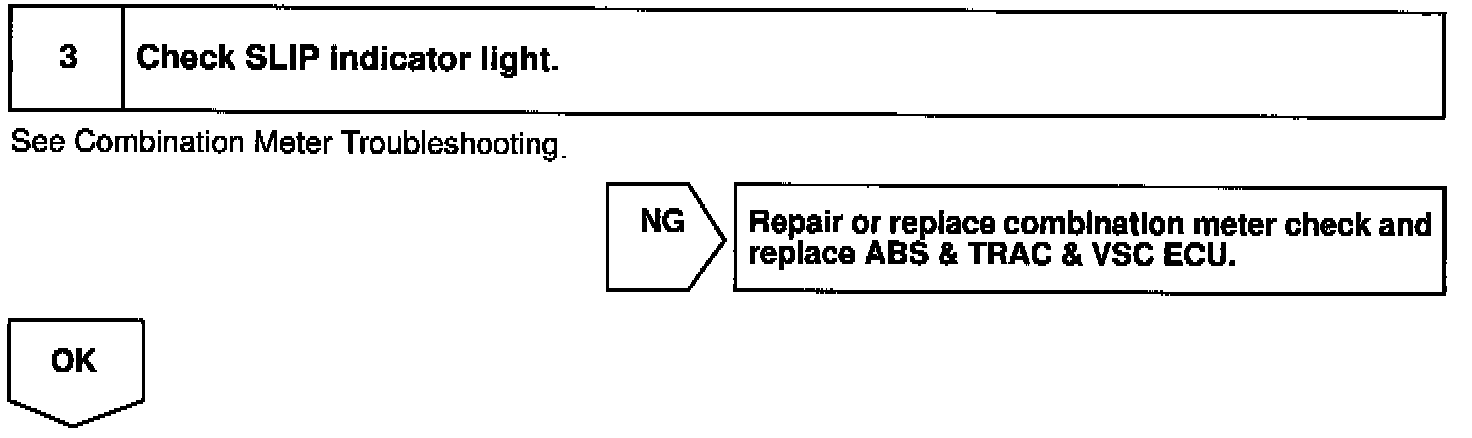

Step 3:

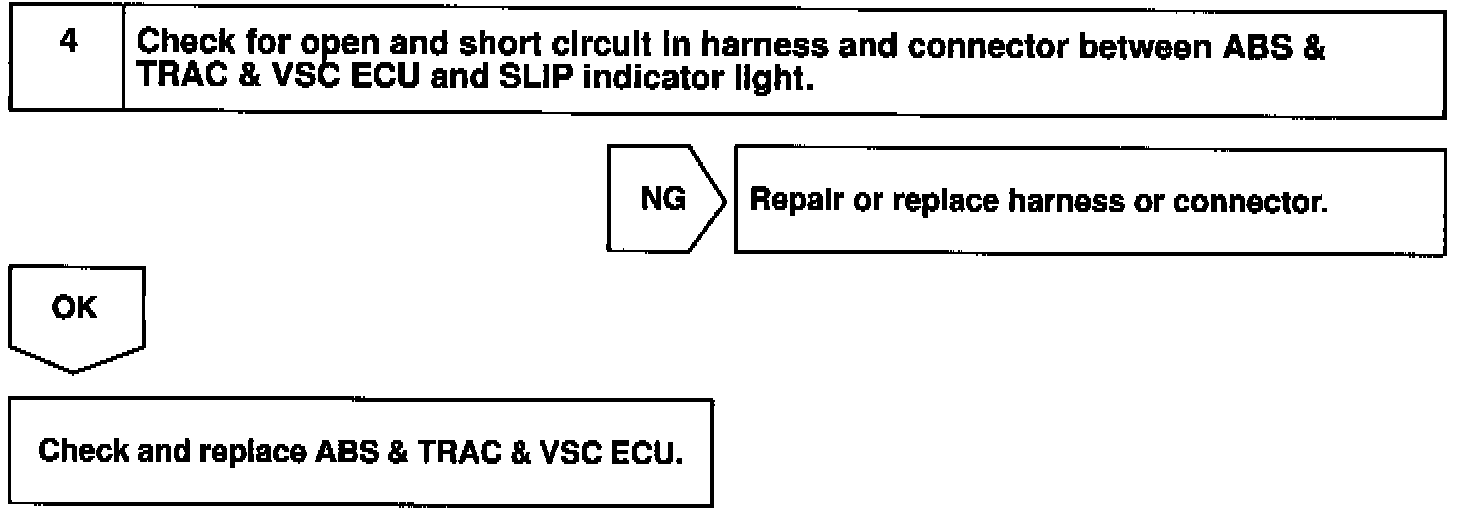

Step 4:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 in case of using the LEXUS hand-held tester and start from step 2 in case of not using the LEXUS hand-held tester.
