With Lexus Hand-Held Tester

VSC Sensor Check (Test Mode)




Check the VSC sensor signal.

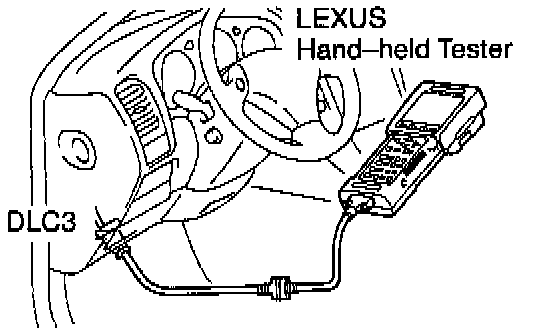

1. Hook up the LEXUS hand-held tester to the DLC3.
2. Do steps (2) and (4) - (8) on the previous page and this page.
3. Read the DTC by following the prompts on the tester screen.

HINT: Please refer to the LEXUS hand-held tester operator's manual for further details.

See the list of DTC, DTC of the VSC sensor check function.
ABS W/Vehicle Skid Control (VSC)
