Home >> Lexus >> 1999 >> GS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Body and Frame >> Sensors and Switches - Body and Frame >> Trunk / Liftgate Switch >> Testing and Inspection

Trunk / Liftgate Switch: Testing and Inspection

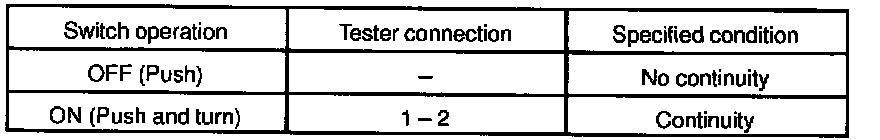

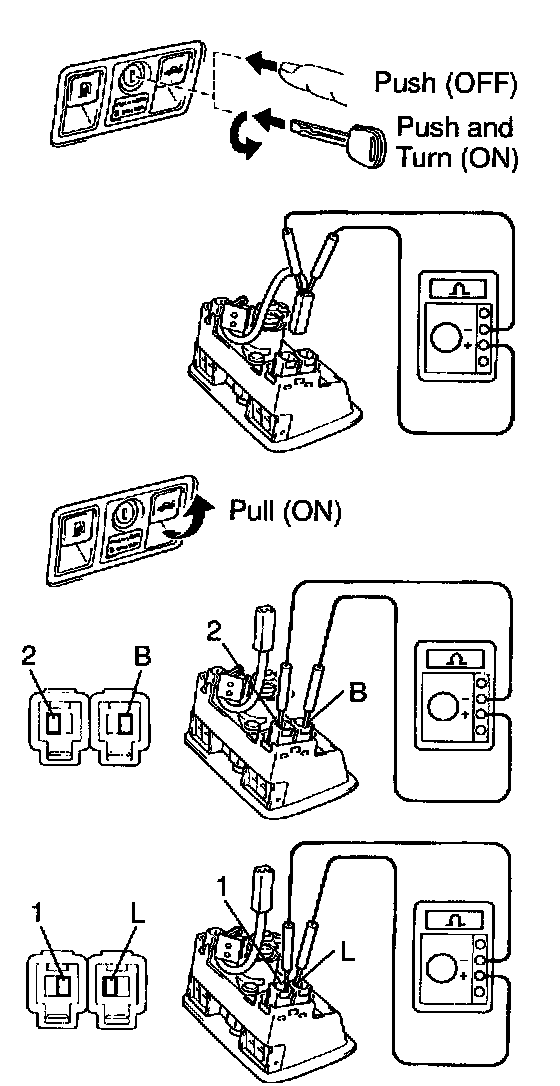

INSPECT LUGGAGE COMPARTMENT DOOR OPENER MAIN SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

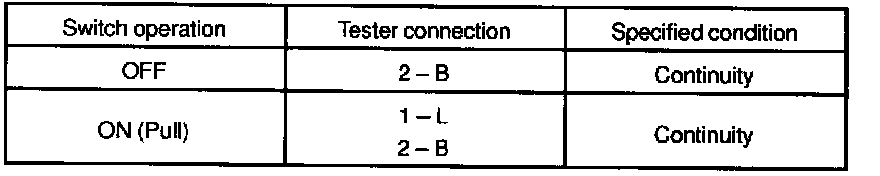

INSPECT LUGGAGE COMPARTMENT DOOR OPENER SWITCH CONTINUITY
If continuity is not as specified, replace the switch.
