Fuel Door Switch: Testing and Inspection

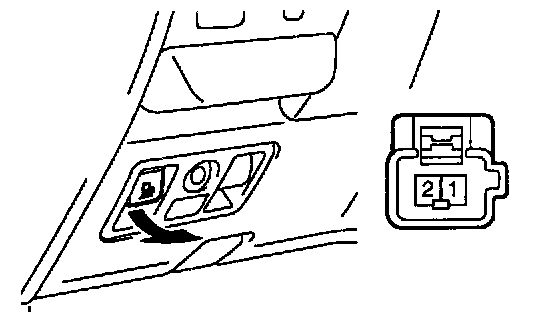

INSPECT FUEL LID OPENER SWITCH CONTINUITY
a. Check that continuity exists between terminals with the switch ON (Lever pulled).
b. Check that no continuity exists between terminals with the switch OFF (Lever free).
If continuity is not as specified, replace the switch assembly.

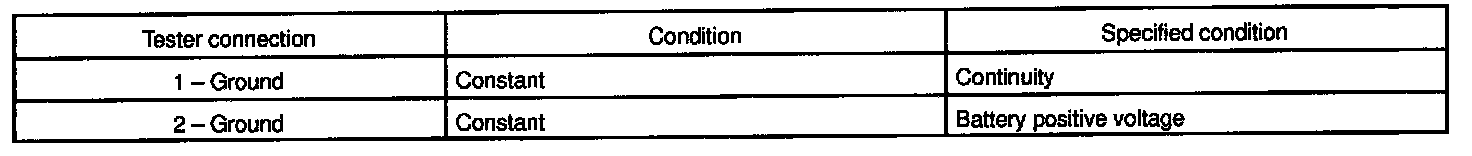

INSPECT FUEL LID OPENER SWITCH CIRCUIT

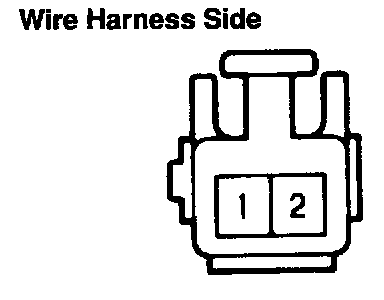

Disconnect the connector from the switch and inspect the connector on the wire harness side, as shown.
If circuit is not as specified, inspect the circuits connected to other parts.
