Home >> Lexus >> 1999 >> GS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Body and Frame >> Seats >> Locations

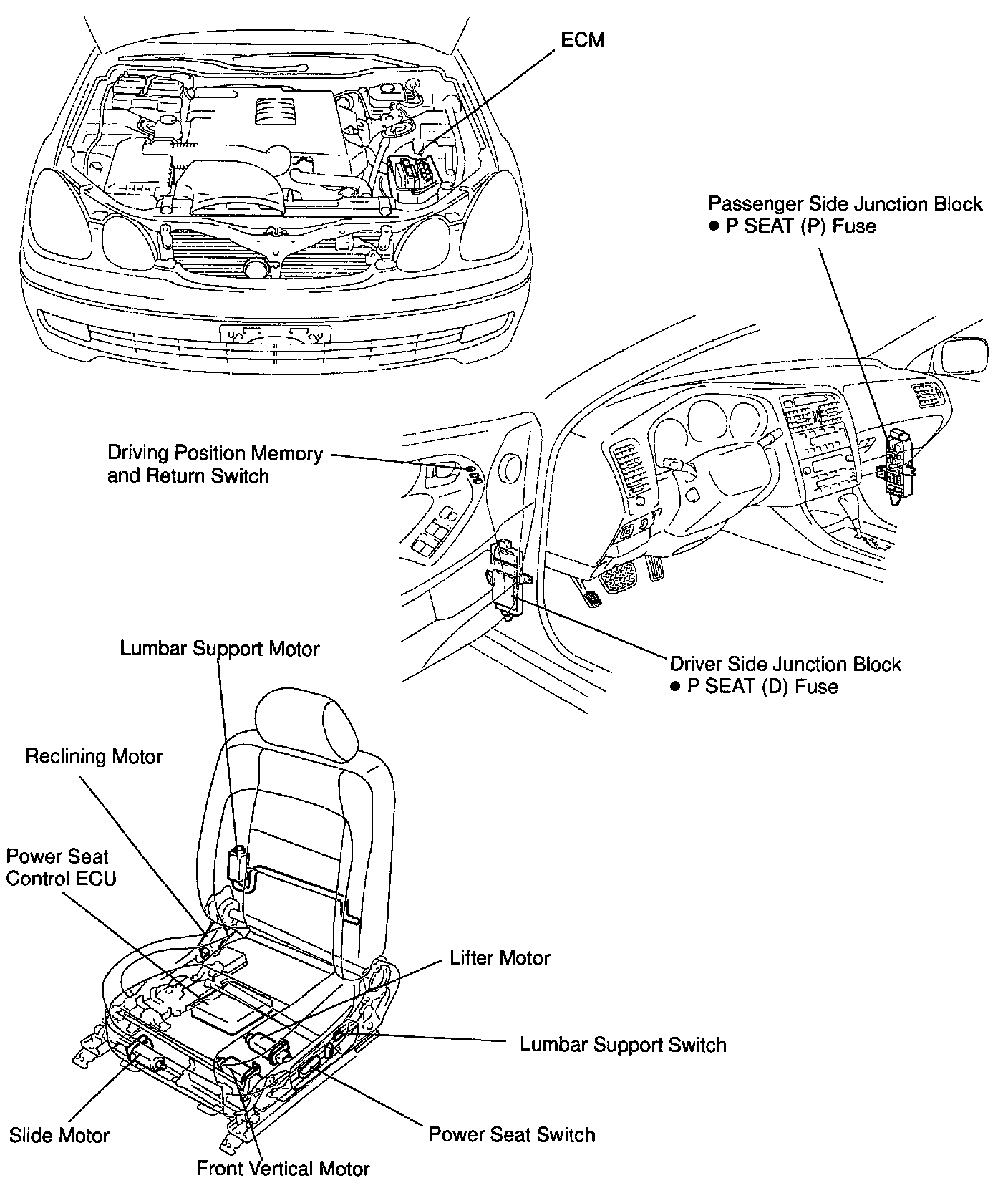

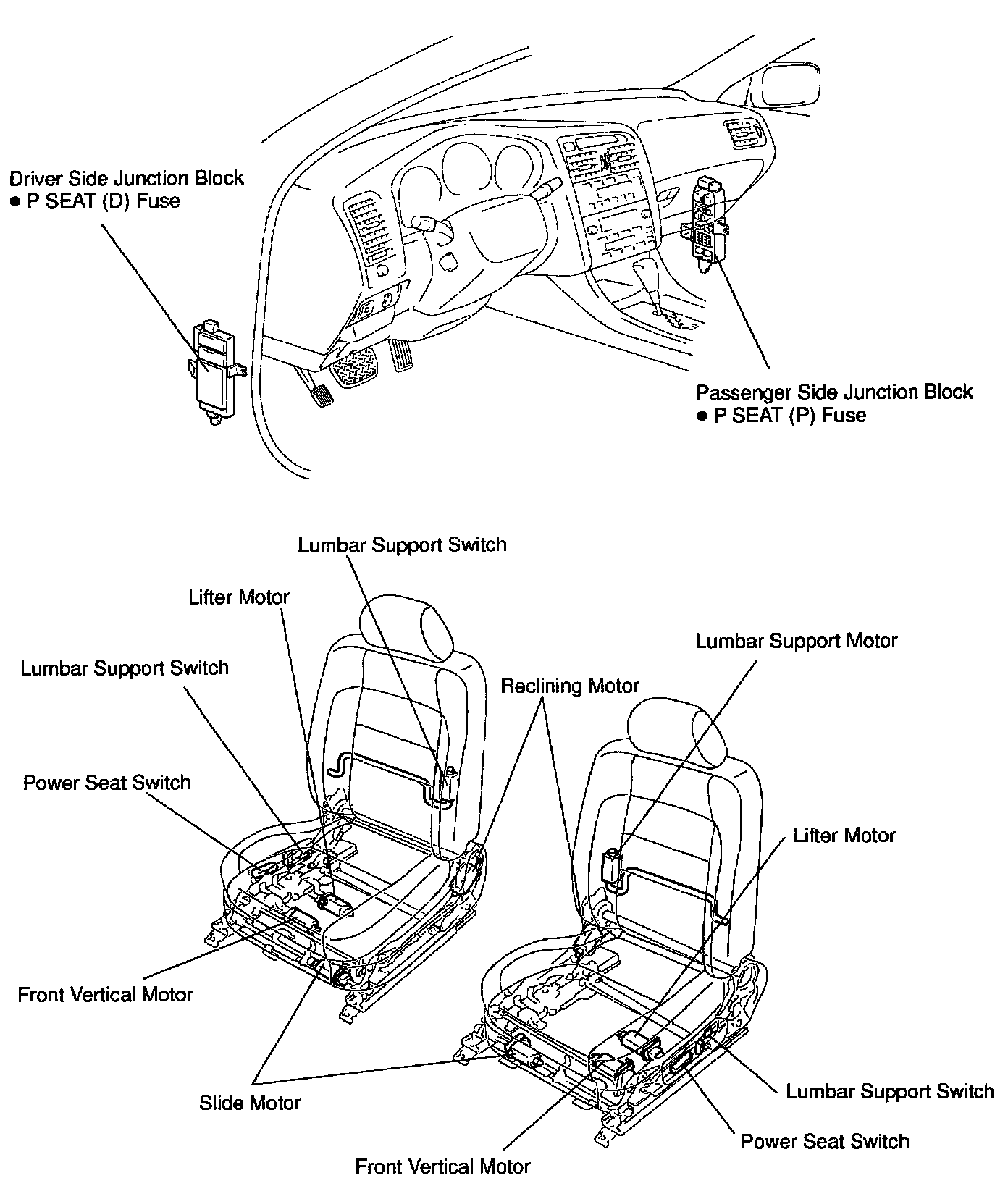

Seats: Locations








- The vehicle shown in this illustration is "GS400".
- All components of "GS3OO" other than the ones used for engine are same as "GS400".
