Sliding Roof Pulse Plate Circuit

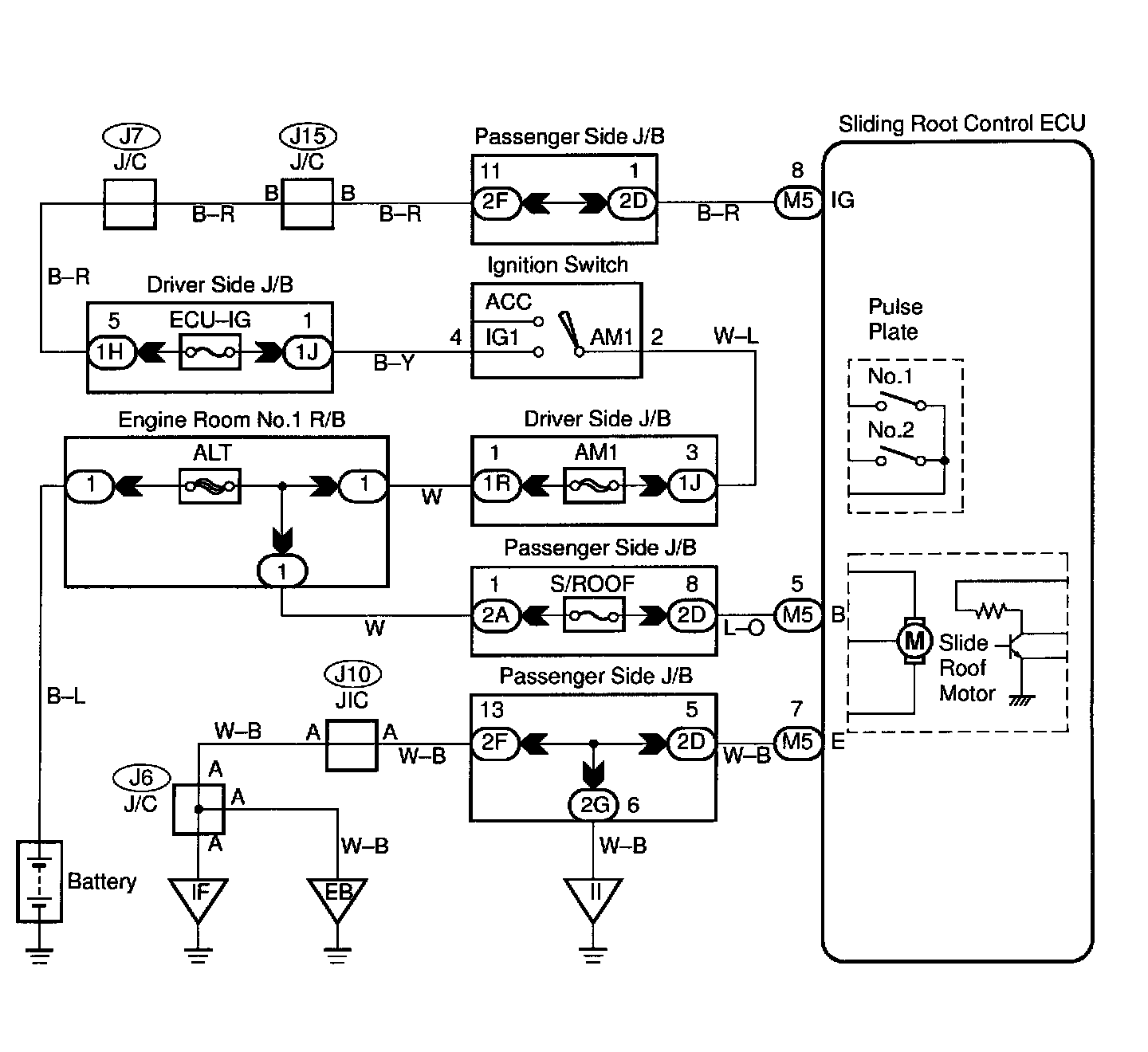

WIRING DIAGRAM

Step 1:




Step 2:







Step 3:

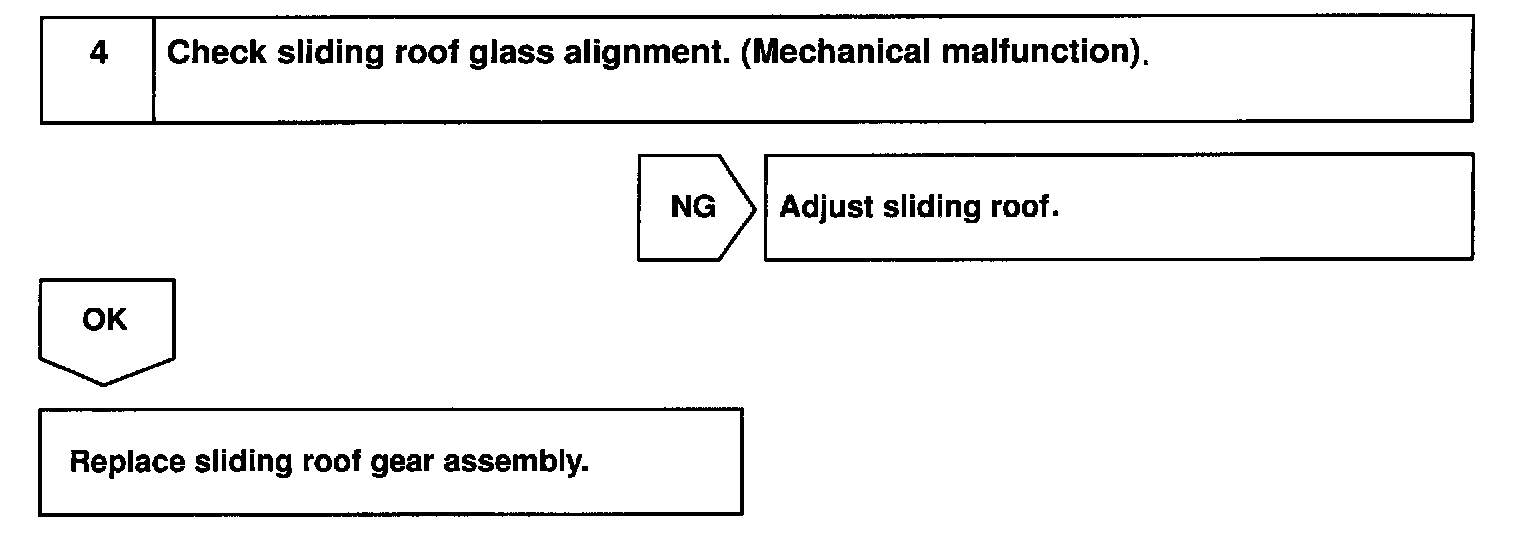

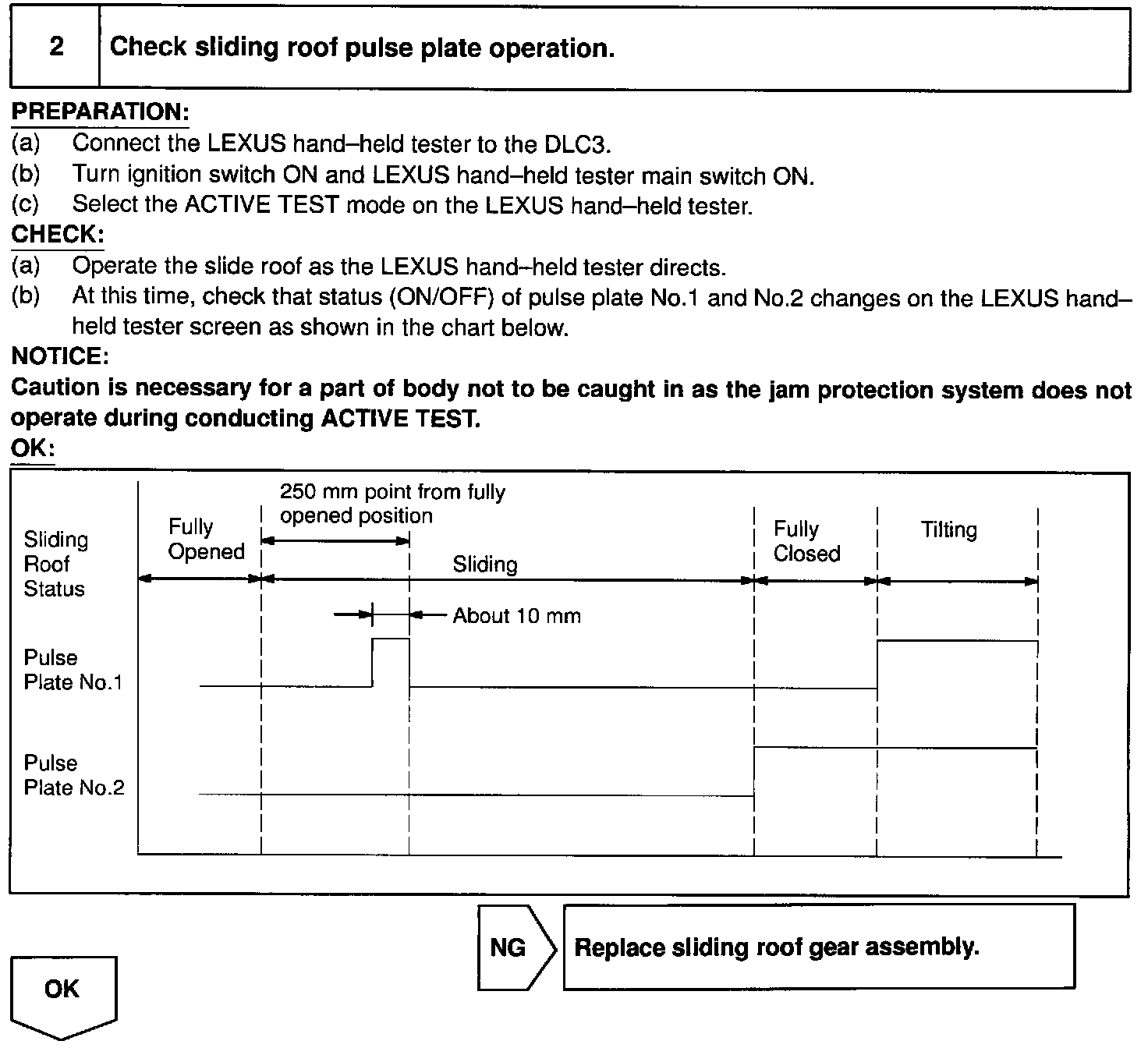

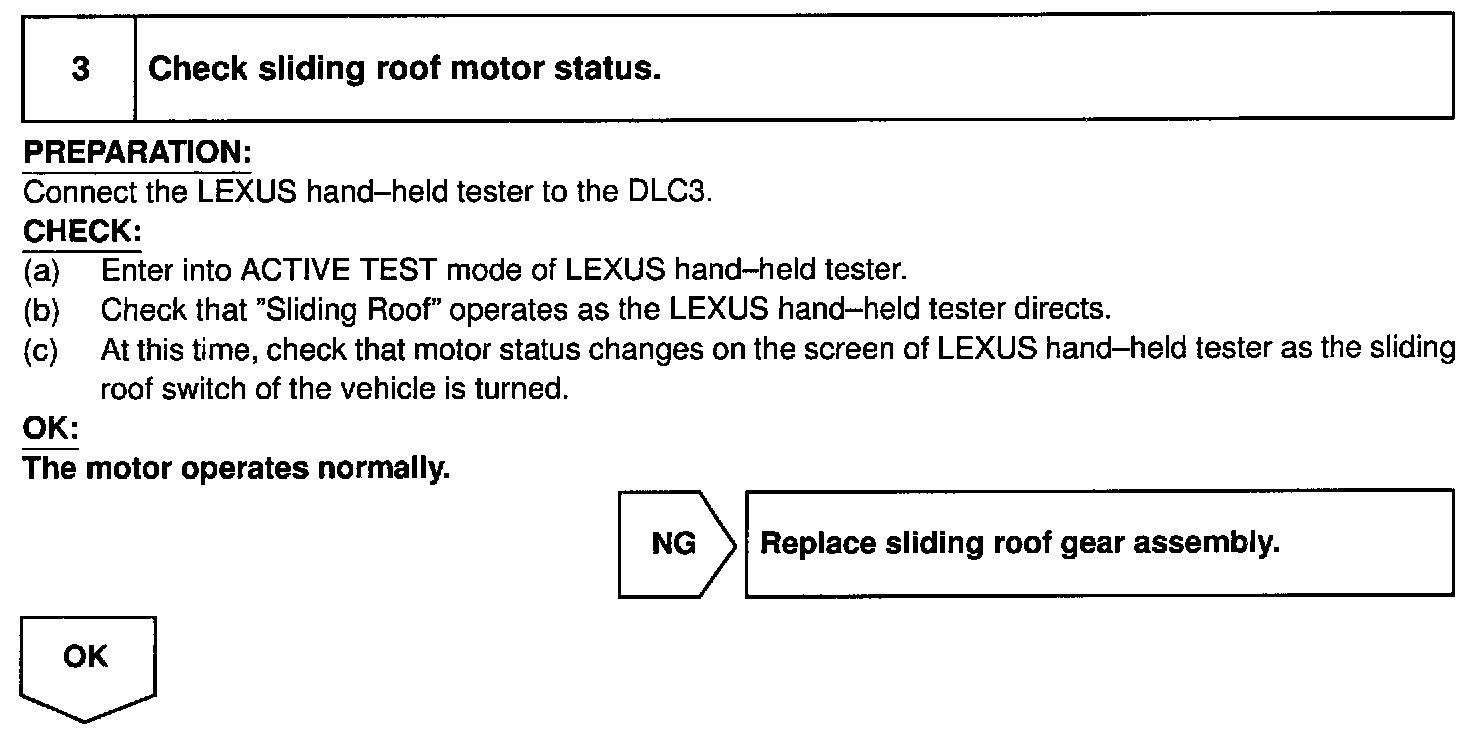

INSPECTION PROCEDURE
