Sliding Roof Control Switch Circuit

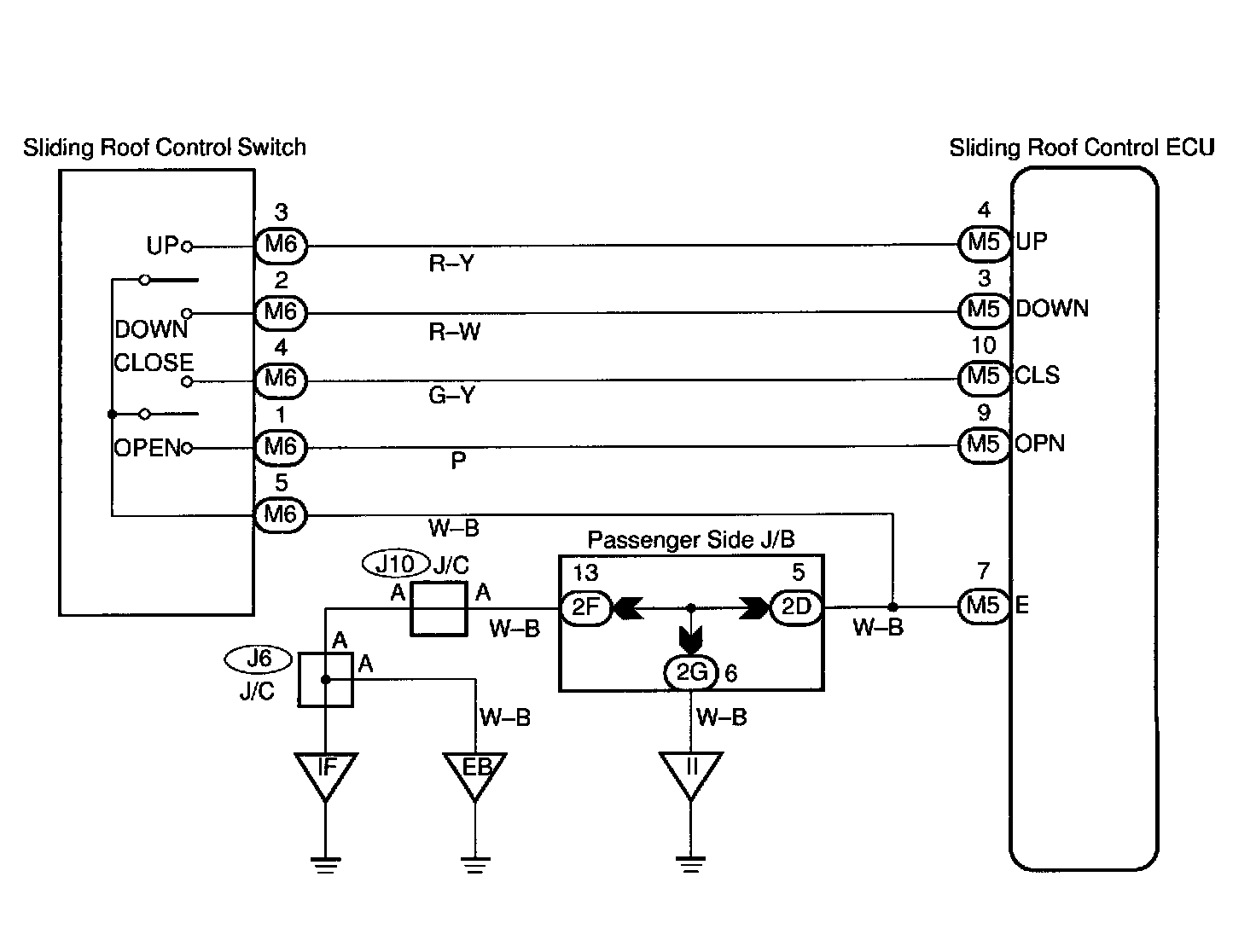

WIRING DIAGRAM

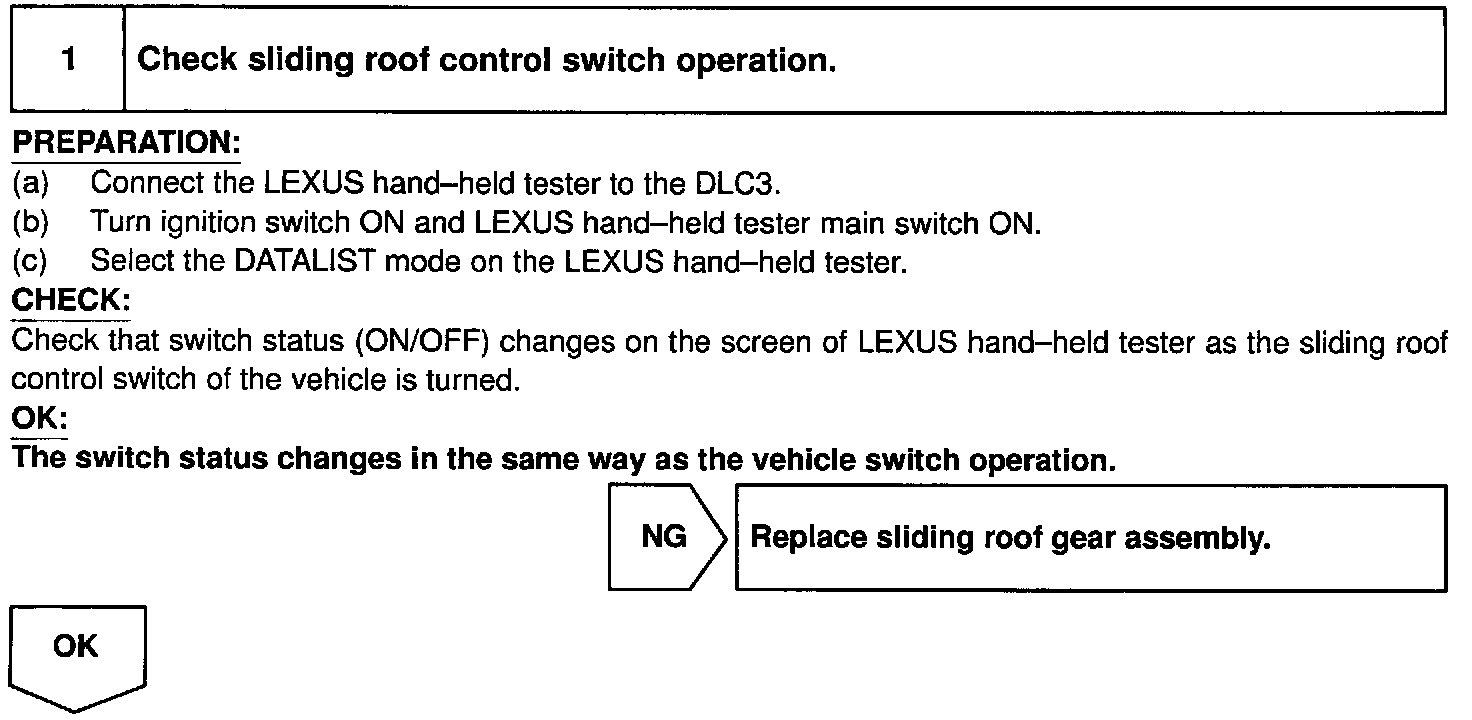

Step 1:

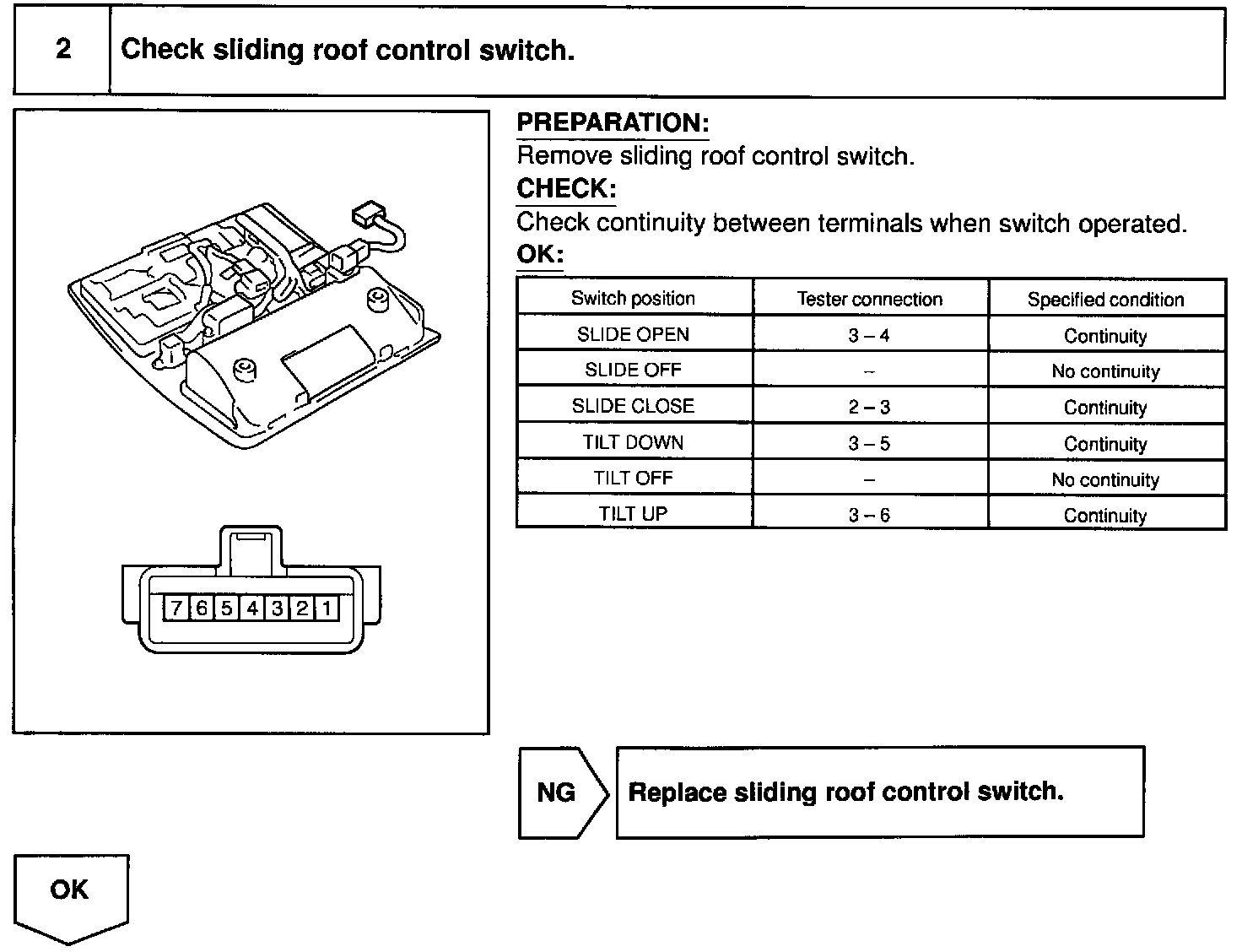

Step 2:

INSPECTION PROCEDURE

HINT: If there is not the LEXUS hand-held tester, begin with STEP 2.
