Power Mirror Control System

This system uses the multiplex communication system, so check diagnosis system of the multiplex communication system before you proceed with troubleshooting.

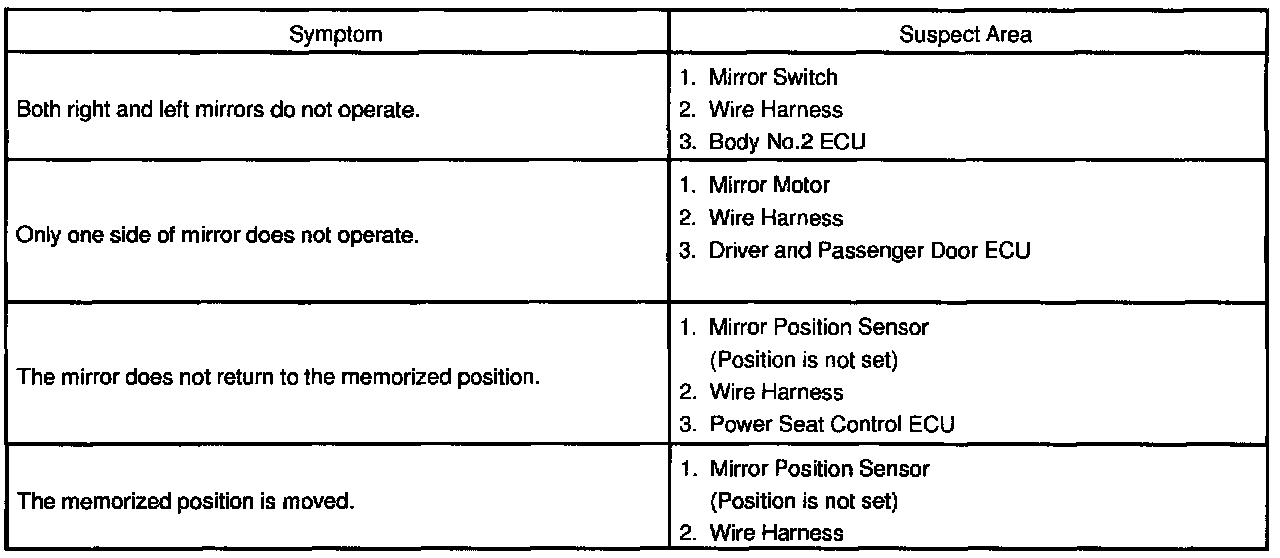

w/ Driving Position Memory System

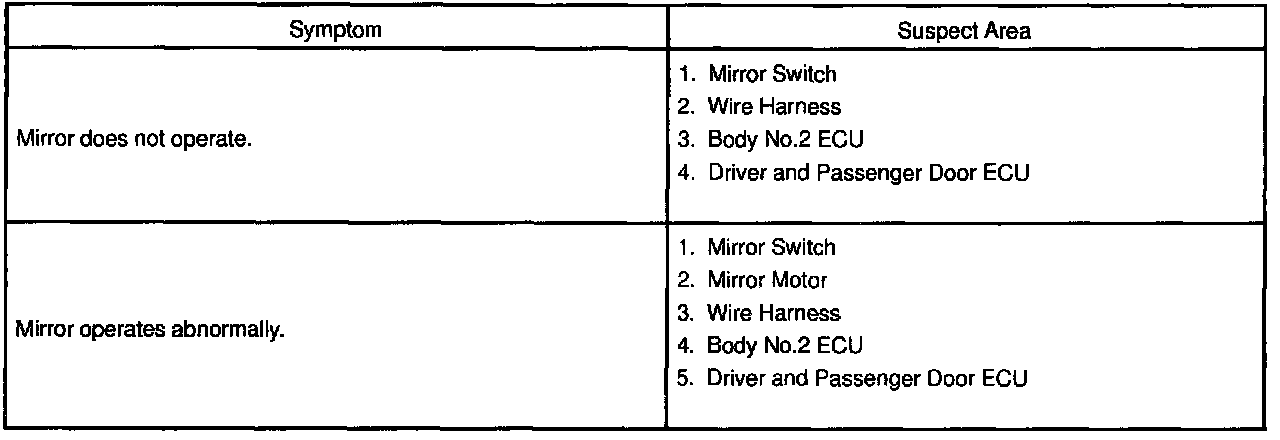

w/o Driving Position Memory System
