Connector Joining Wire Harness and Wire Harness

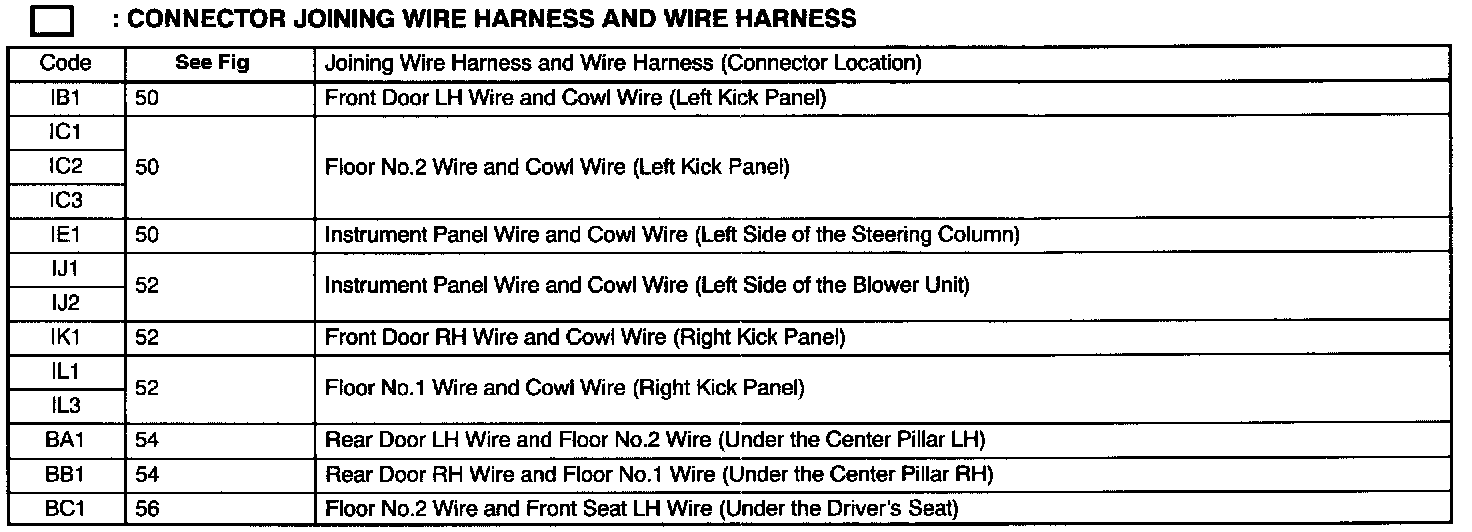

CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS




FIG 50




FIG 52




FIG 54




FIG 56
