Power Source Circuit

CIRCUIT DESCRIPTION
This circuit provides power to operate the rear right door ECU.

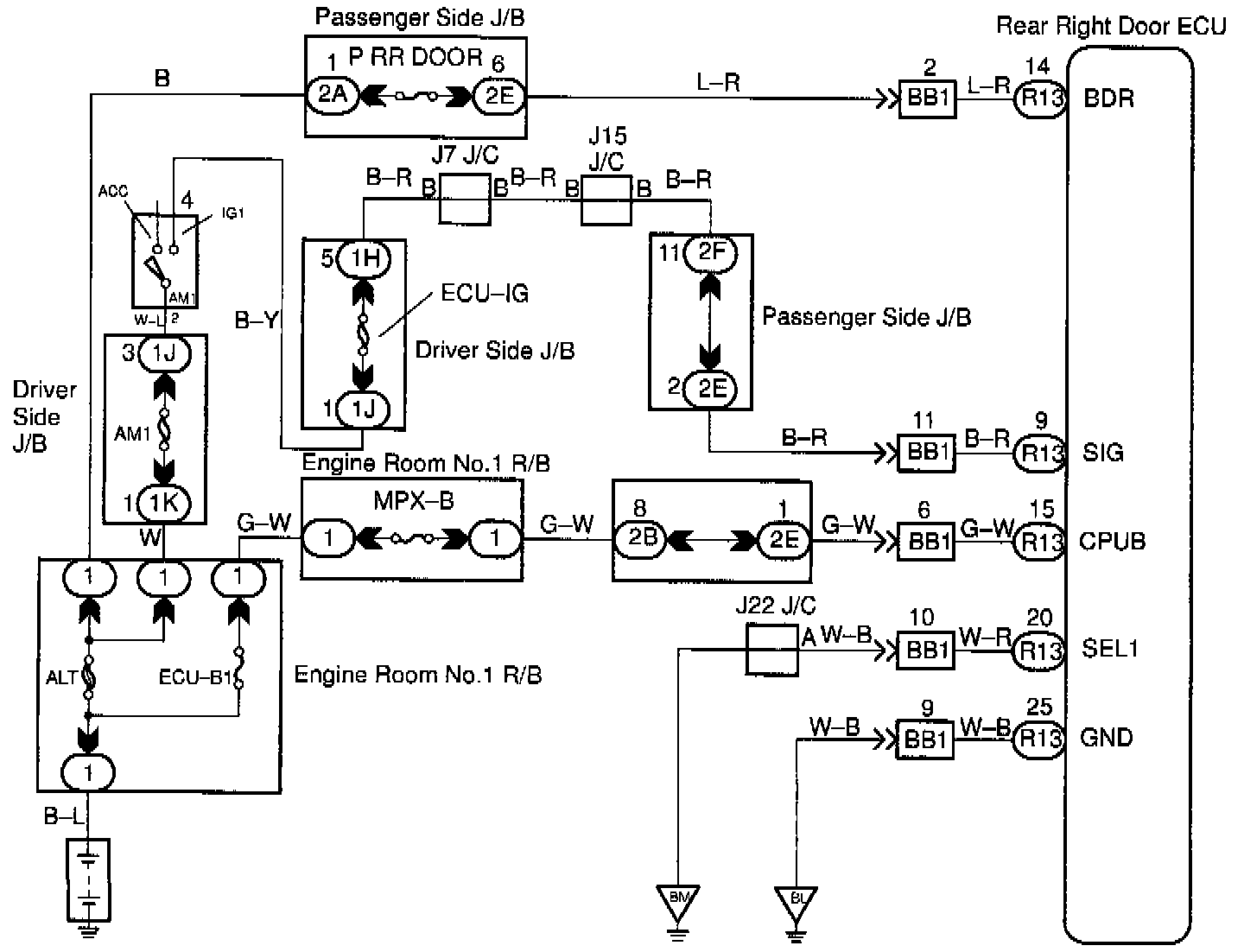

WIRING DIAGRAM

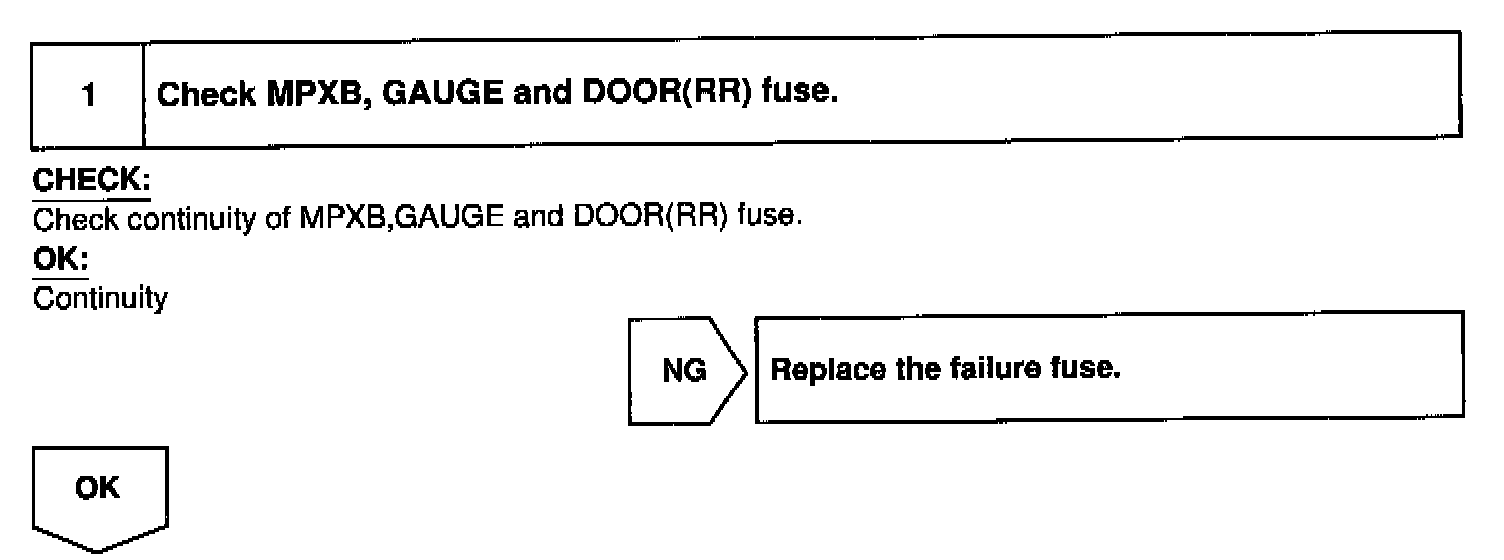

Step 1:

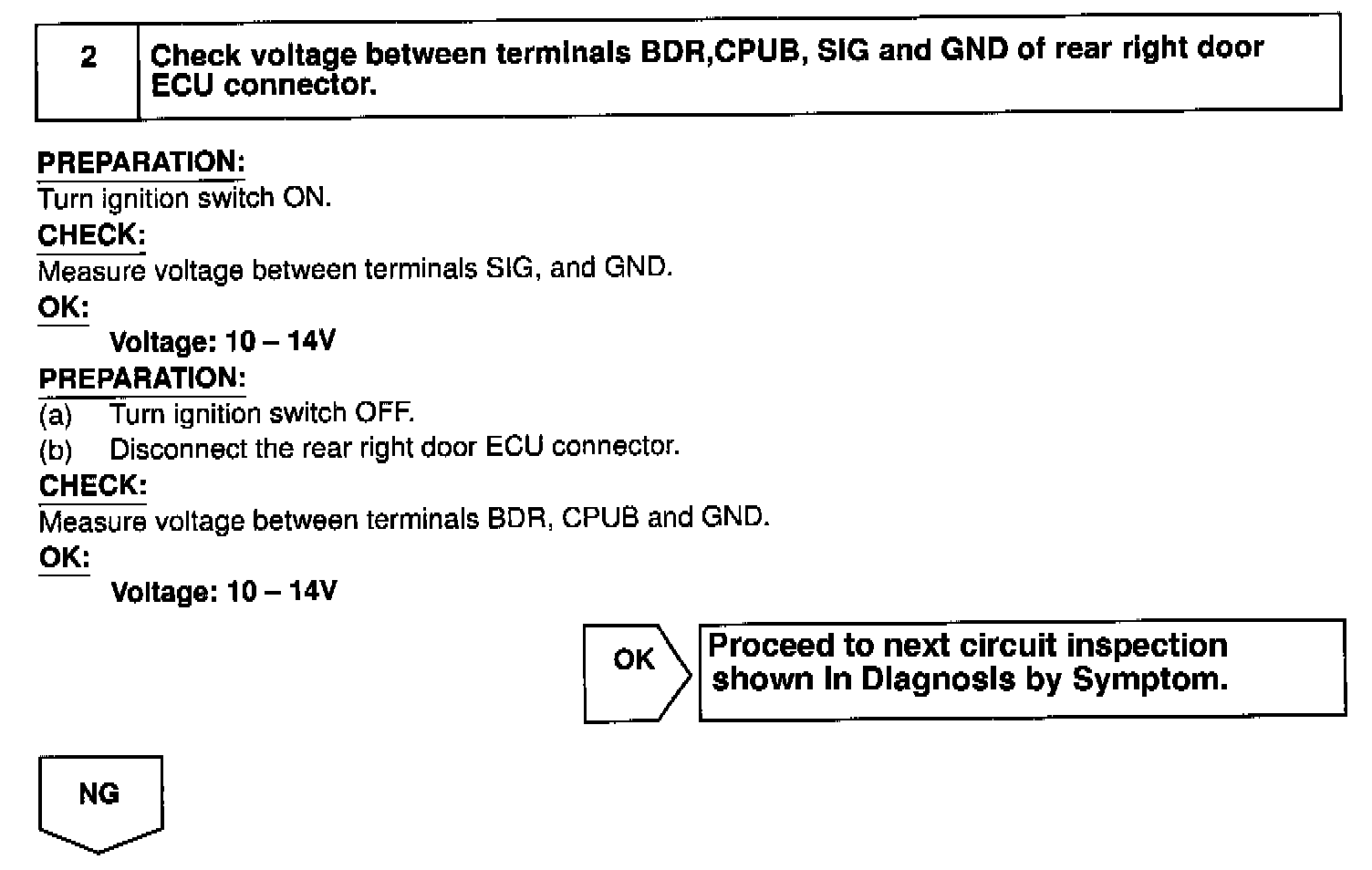

Step 2:

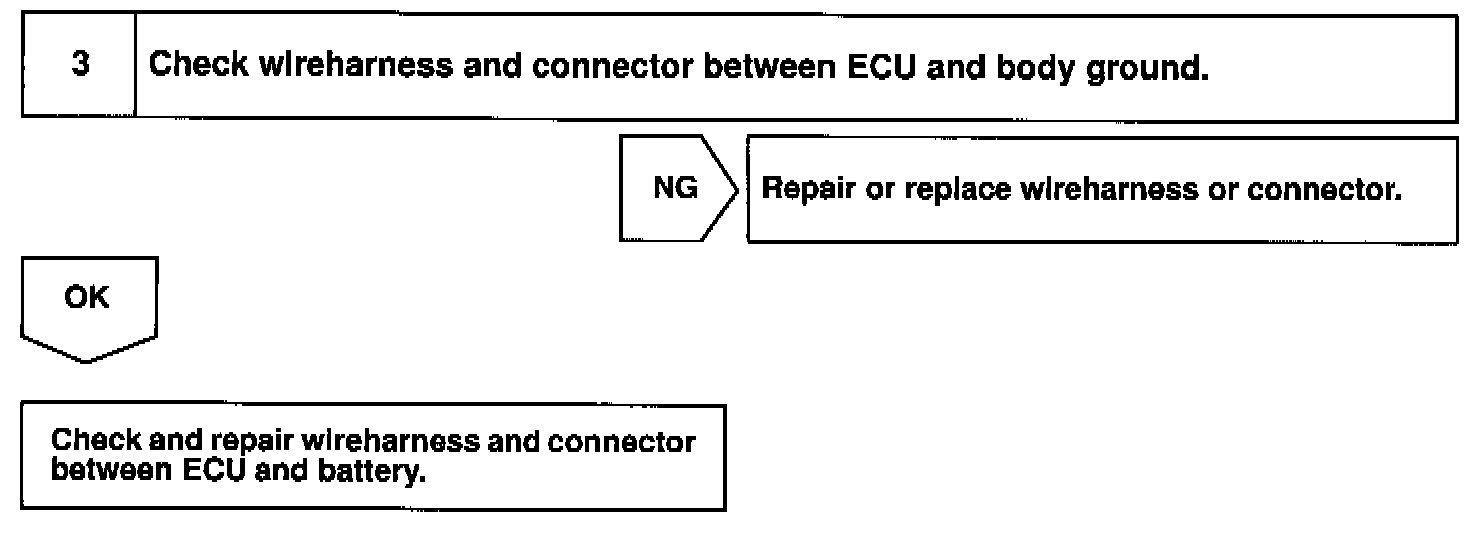

Step 3:




INSPECTION PROCEDURE
